Manual lifting rotary evaporator machine lab vacuum distillation equipment 50ml 1L rotary vacuum evaporator

Rotary Flask 0.5L~2L; 24#
Collection Flask 1L; 35#
Heat Power 1.3KW
Rotation Speed 0~150rpm
Heat Temp. RT~99℃
Evaporating Speed (H2O)≥17ml/min
Vacuum Degree <133Pa (1.33mbar, 1 Torr)

PRODUCT DETAIL

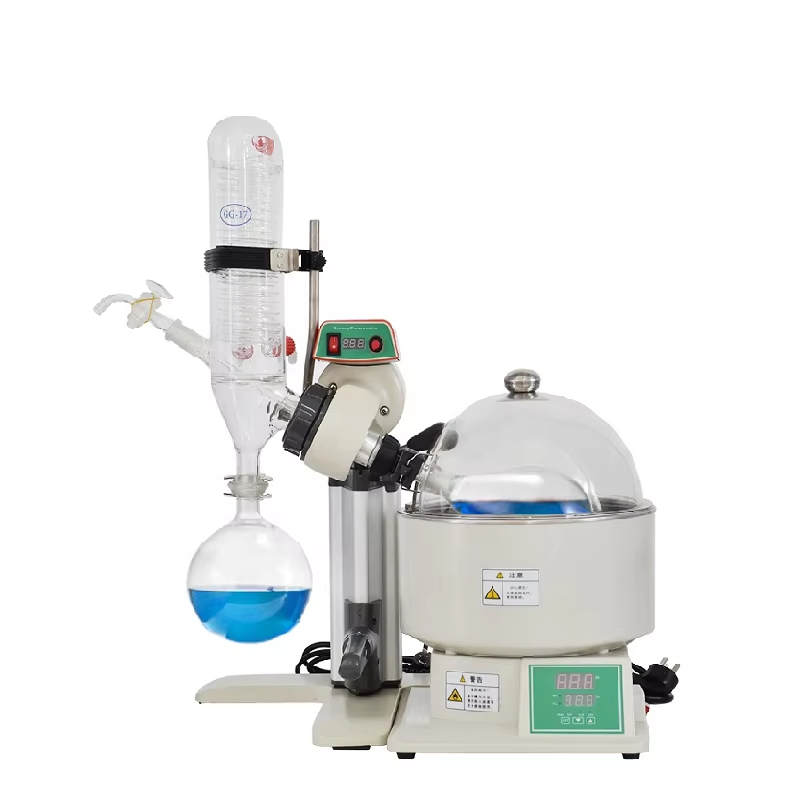

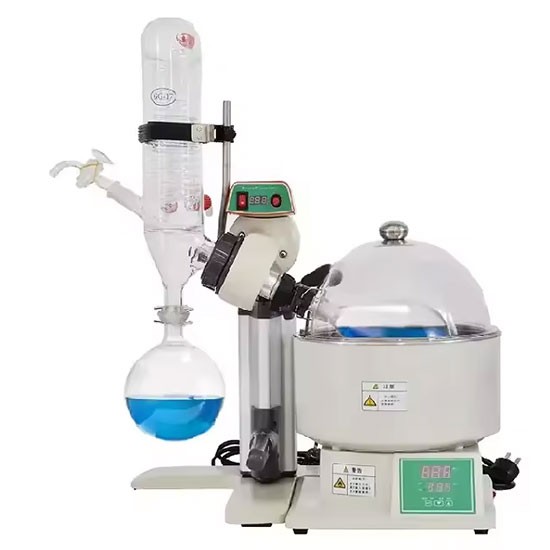

The RE-series rotary evaporator is designed for small-scale testing, pilot-scale experiments, and production across biological, chemical, and food industries. Featuring a large capacity and wide-diameter rotary evaporating flask, this equipment operates effectively in a water bath, enabling simultaneous rotation and heating for rapid solution spreading and evaporation. Ideal for solvent extraction and the separation of mixed solutions, the RE-series rotary evaporator is a crucial tool for laboratories seeking efficiency and precision in their processes. Its versatility makes it suitable for a range of applications, ensuring high-quality results every time. It can be used in the following experiments or product production:

☑Concentration of solutions; ☑Reclamation of solvents; ☑Separation of chemicals; ☑Vacuum drying of wet solids; ☑Essential oil extractor; ☑Remove solvent from sample.

rotary evaporator.jpg

Model	RE-2010
Voltage	220V/50Hz, ±10% (110V/60Hz Optional)
Rotation power	40W
Heating power	1300W
Glass material	High borosilicate glass 3.3
Rotation speed	0~150r/min
Rotary flask	0.5~2L/24# Loading capacity: Not to exceed 60% of the flask's capacity
Receiving flask	1L/35# Ball
Discharging valve	/
Charging valve	19# Glass
Evaporating speed	(H₂O) 17ml/min
Condenser	24#, Vertical snake condenser
Heating Bath	Temperature range: RT-99°C, ±1°C Temperature controller: LED Digital Display Media: Distilled water or Oil Max. Water level: Not to exceed 1” from the top rim of the bath 100mm150mm Sliding lifting + manual lifting Φ240150H
Vacuum	~0.098Mpa; Joint port: OD12mm hose barb
Machine size(mm)	550L400W780H/1040H
Packing size(mm)	750550460
GW	35KG
