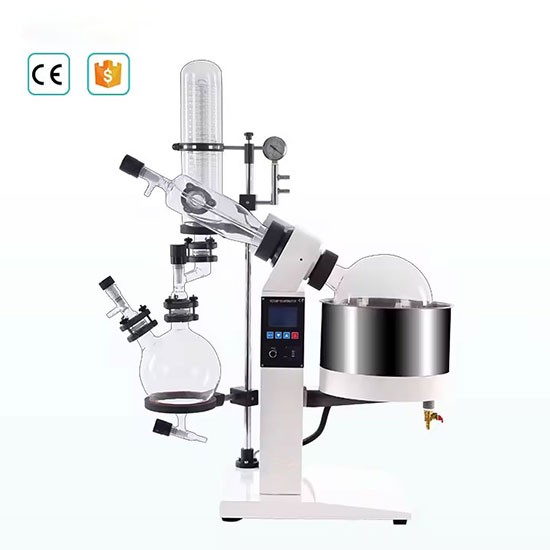

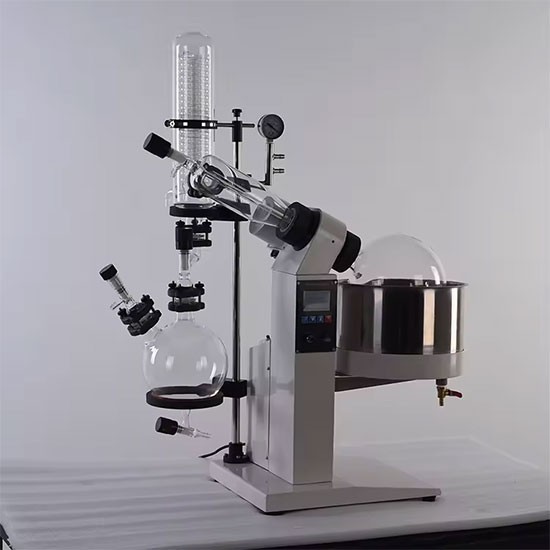

Ethanol Solvent Recovery Rotary Evaporator for Essential Oil Alcohol Distillation Equipment

Rotary Flask 5L/6L
Collection Flask 3L with discharge valve
Heat Power 1500W
Rotation Speed 0~120r/min, digital display
Heat Temp. RT~200℃
Vacuum Degree ≤133Pa
Liftable Bath Integrated Electric lift
PTFE Sealing Anti-corrosion
Glass Material High Borosilicate Glass 3.3

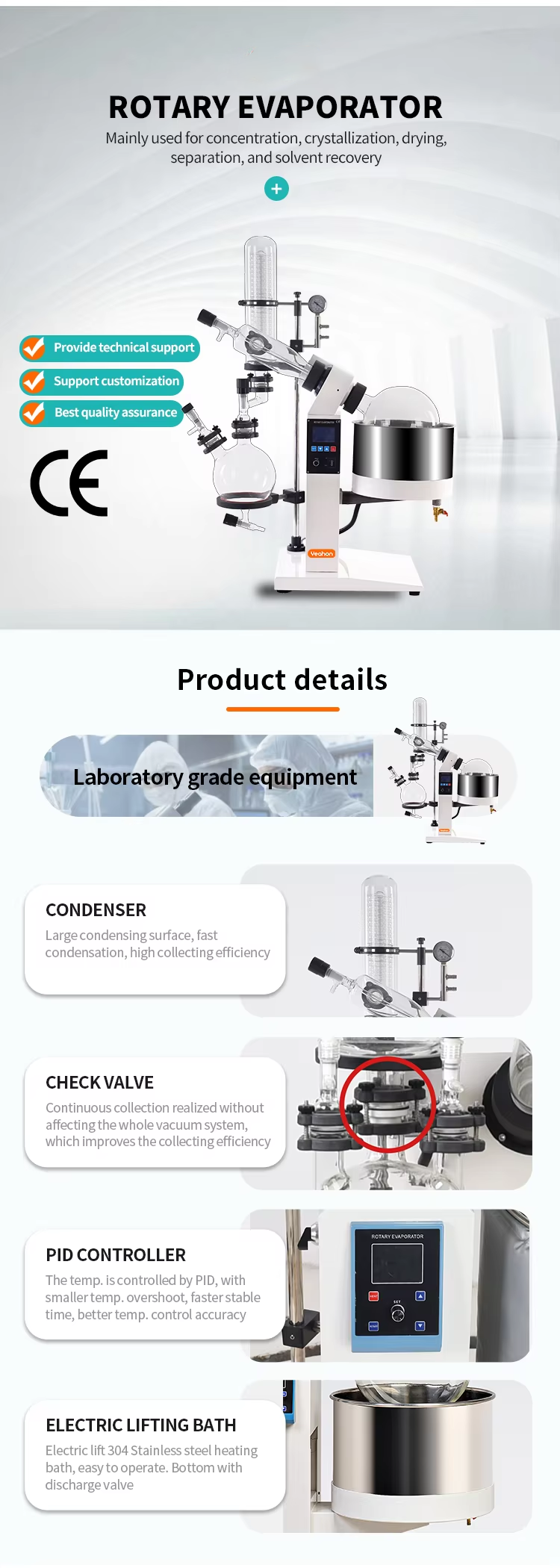

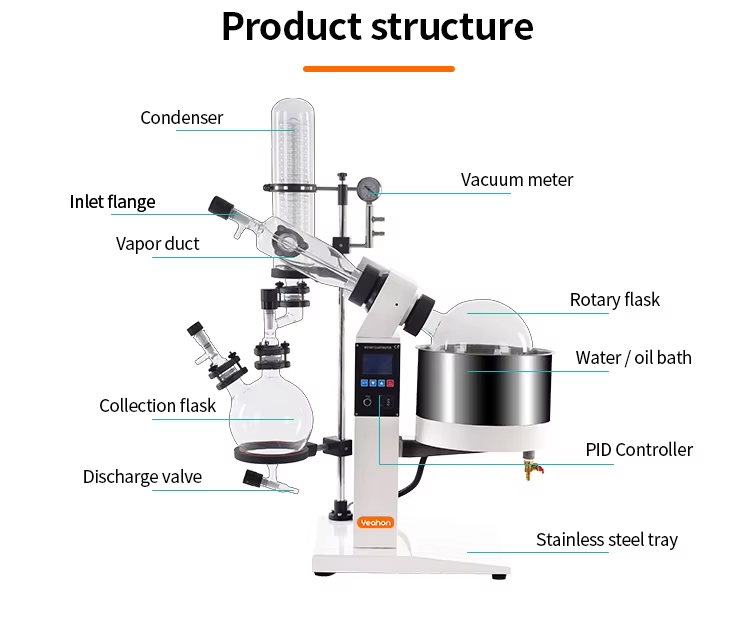

PRODUCT DETAIL

Rotary Evaporator.png

Model	RE-1005	RE-1010	RE-1020	RE-1050
Rotary Flask	5L	10L	20L	50L
Collection Flask	3L	5L	10L	20L
Glass Material	High borosilicate glass 3.3
Rotary Motor	60w	250w
Rotation Speed	0-120rpm, digital display			20-90rpm, digital display
Evaporation Rate	H₂O≥2.0L/h, Alcohol≥5.4L/h	H₂O≥3.2L/h, Alcohol≥8.6L/h	H₂O≥5.0L/h, Alcohol≥14.3L/h	H₂O≥9.0L/h, Alcohol≥24.5L/h
Condenser	Vertical condenser	Main condenser & auxiliary condenser
Heating Bath	Stainless steel water bath
Temp. Range	Water: RT to 99°C, Oil: RT to 200°C
Lifting	Electric lifting
Vacuum Degree	<133Pa (1.33mbar, 1 Torr)
Power	220V/110V, 50/60Hz
Dimensions (WDH)	700480850mm	9905501740mm	11206801900mm	13457702230mm
