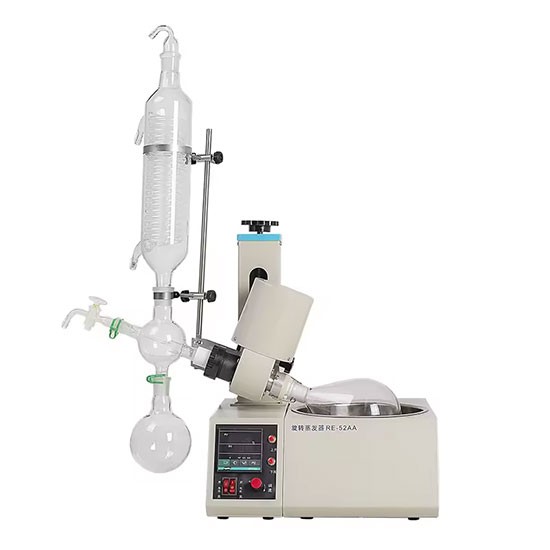

2L Rotary Evaporator Machine Lab 500ml Single Vertical Condenser Rotary Evaporator

Dimension(L*W*H) 57*38*88 cm
Rotary Flask 0.5L~1L; 24#
Motor Power 40W
Heat Power 1.5KW
Rotation Speed 0~120rpm
Heat Temp. RT~99℃
Evaporating Speed (H2O)≥17ml/min

PRODUCT DETAIL

The RE-series rotary evaporator is an essential tool for small-scale and pilot-scale testing in biological, chemical, and food industries. With its large-capacity rotary flask, this evaporator efficiently facilitates rapid evaporation by combining rotation and heating in a water bath. It's ideal for solvent extraction and the separation of mixed solutions. Perfect for applications like concentration, purification, and recovery, the RE-series rotary evaporator is a must-have for laboratories focusing on innovative product development and scientific research.

rotary evaporator.jpg

Model	RE-205	RE-301	RE-501	RE-52AA	RE-2010	RE-2000
Rotating bottle (L)	0.5/1/2 29#	3 F50	5 F50	0.5/1 24#	2 24#	0.5/1 24#
Collection bottle	1L	2L	3L		1L
Speed regulation(rpm)	0~120
Evaporation capacity (L/H)	Water: 0.015 Ethanol: 0.02	Water: 1.3 Ethanol: 4.5	Water: 1.4 Ethanol: 5.2	Water: 0.02 Ethanol: 0.025	Water: 0.02 Ethanol: 0.025	Water: 0.02 Ethanol: 0.025
Vacuum degree can be reached	<133pa(1.33mbar, 1torr)
Temperature range (℃)	RT~99
Elevator function	Manual lifting of screw rod			Sliding lifting + manual lifting
Rotating power	40(W)	40(W)	60(W)	40(W)	40(W)	40(W)
Heating power	1.0 (KW)	1.5 (KW)	1.5 (KW)	1.5 (KW)	1.5 (KW)	1.5 (KW)
Power Supply	220V/50HZ/60HZ
Condensation area	0.14 (㎡)	0.2 (㎡)	0.25 (㎡)	0.2 (㎡)	0.15 (㎡)	0.15 (㎡)
Size of water bath pan	6L	8L	10L	8L	6L	6L
Overall dimension (cm)	64×32×88	84×36×106	84×36×106	84×36×106	57×38×88	65×41×84

Model	RE-1002	RE-2002	RE-5002	R-1010	R-1020	R-1050
Rotating bottle (L)	10 F125MM	20 F125MM	50 F125MM	10 F125MM	20 F125MM	50 F125MM
Collection bottle	5L	10L	20L	5L	10L	20L
Speed regulation	0~120 (rpm)
Evaporation capacity (L/H)	Water: 3.2 Ethanol: 8.6	Water: 5.0 Ethanol: 14.3	Water: 9.0 Ethanol: 14.5	Water: 3.2 Ethanol: 8.6	Water: 5.0 Ethanol: 14.3	Water: 9.0 Ethanol: 14.5
Vacuum degree can be reached	<133pa(1.33mbar, 1torr)
Temperature range (℃)	Room temperature~99 (200) ± 1
Elevator function	Manual lifting of screw rod			Electric lifting
Rotating power	200(w)	200(w)	200(w)	250(w)	250(w)	250(w)
Heating power	3.0 (kw)	6.0/9.0(kw)	6.0/9.0(kw)	3.0 (kw)	6.0/9.0(kw)	6.0/9.0(kw)
Power Supply	220V/50HZ/60HZ			380V/50HZ
Overall dimension (cm)	12251.5162	13553.5173	14565.5188	9955174	11274190	134.577223

rotary evaporator.jpg

We are direct manufacturer, many kinds of rotary evaporators are provided. The rotary evaporator can also be customized according to customer requirements. Feel free to contact us to get more information.
