Voltage 220V/60Hz/50Hz
Power 60W
Dimension(L*W*H) 84*36*106cm
Rotary Flask 5L
Heat Power 1.5KW
Rotation Speed 0~120rpm
Heat Temp. RT~99℃
Evaporating Speed (H2O) >2L/H
Vacuum Degree <133Pa
PRODUCT DETAIL

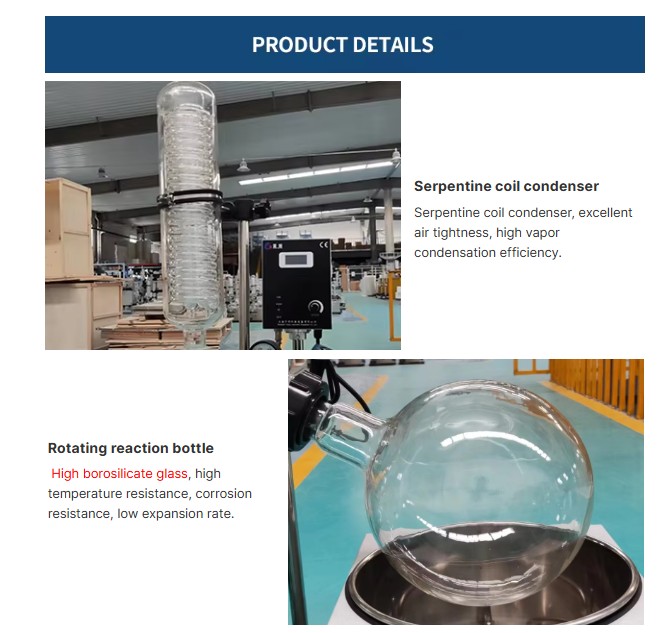

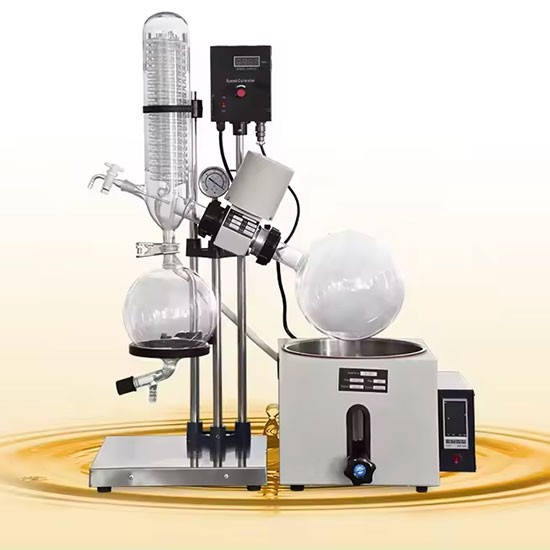

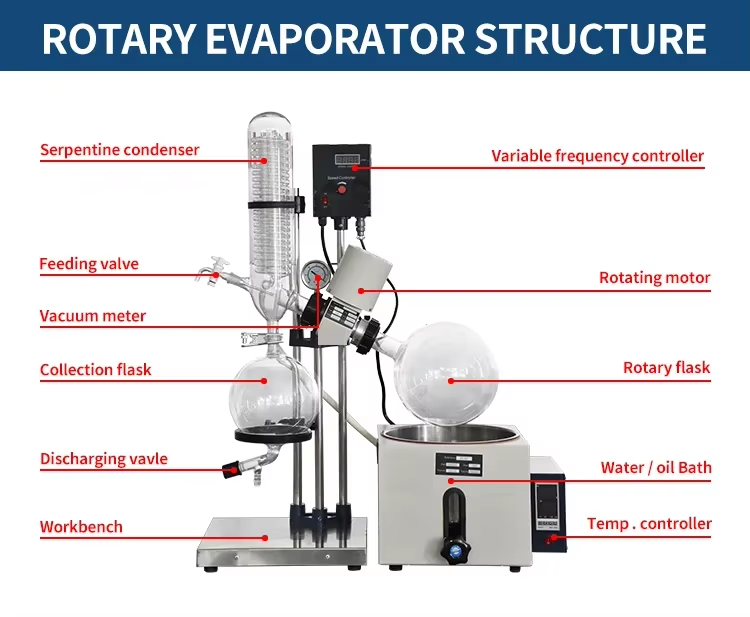

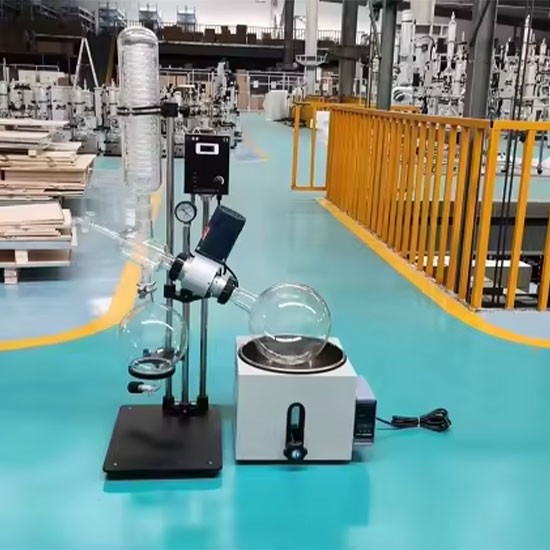

The RE-series rotary evaporator is designed for small-scale tests, pilot-scale tests, and production across biological, chemical, and food industries. Featuring a large-capacity and large-diameter rotary evaporating flask, it efficiently spreads and evaporates solutions when placed in a water bath while rotating and heating simultaneously. This versatile rotary evaporator is ideal for solvent extraction and mixed solution separation, making it suitable for various applications, including concentration, crystallization, and recovery processes. Enhance your lab capabilities with this essential equipment for effective scientific research and production.

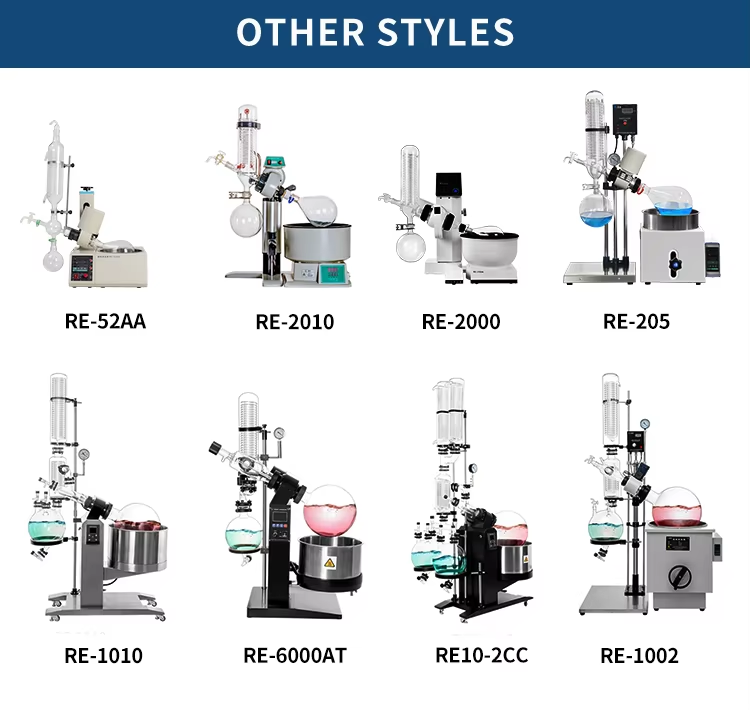

| Model | RE-205 | RE-301 | RE-501 | RE-52AA | RE-2010 | RE-2000 |
|---|---|---|---|---|---|---|
| Rotating bottle (L) | 0.5/1/2 29# | 3 F50 | 5 F50 | 0.5/1 24# | 2 24# | 0.5/1 24# |
| Collection bottle | 1L | 2L | 3L | 1L | ||
| Speed regulation(rpm) | 0~120 | |||||
| Evaporation capacity (L/H) | Water: 0.015 Ethanol: 0.02 | Water: 1.3 Ethanol: 4.5 | Water: 1.4 Ethanol: 5.2 | Water: 0.02 Ethanol: 0.025 | Water: 0.02 Ethanol: 0.025 | Water: 0.02 Ethanol: 0.025 |
| Vacuum degree can be reached | <133pa(1.33mbar, 1torr) | |||||
| Temperature range (℃) | RT~99 | |||||
| Elevator function | Manual lifting of screw rod | Sliding lifting + manual lifting | ||||
| Rotating power | 40(W) | 40(W) | 60(W) | 40(W) | 40(W) | 40(W) |
| Heating power | 1.0 (KW) | 1.5 (KW) | 1.5 (KW) | 1.5 (KW) | 1.5 (KW) | 1.5 (KW) |
| Power Supply | 220V/50HZ/60HZ | |||||
| Condensation area | 0.14 (㎡) | 0.2 (㎡) | 0.25 (㎡) | 0.2 (㎡) | 0.15 (㎡) | 0.15 (㎡) |
| Size of water bath pan | 6L | 8L | 10L | 8L | 6L | 6L |
| Overall dimension (cm) | 64×32×88 | 84×36×106 | 84×36×106 | 84×36×106 | 57×38×88 | 65×41×84 |
| Model | RE-1002 | RE-2002 | RE-5002 | R-1010 | R-1020 | R-1050 |
|---|---|---|---|---|---|---|
| Rotating bottle (L) | 10 F125MM | 20 F125MM | 50 F125MM | 10 F125MM | 20 F125MM | 50 F125MM |
| Collection bottle | 5L | 10L | 20L | 5L | 10L | 20L |
| Speed regulation | 0~120 (rpm) | |||||
| Evaporation capacity (L/H) | Water: 3.2 Ethanol: 8.6 | Water: 5.0 Ethanol: 14.3 | Water: 9.0 Ethanol: 14.5 | Water: 3.2 Ethanol: 8.6 | Water: 5.0 Ethanol: 14.3 | Water: 9.0 Ethanol: 14.5 |
| Vacuum degree can be reached | <133pa(1.33mbar, 1torr) | |||||
| Temperature range (℃) | Room temperature~99 (200) ± 1 | |||||
| Elevator function | Manual lifting of screw rod | Electric lifting | ||||
| Rotating power | 200(w) | 200(w) | 200(w) | 250(w) | 250(w) | 250(w) |
| Heating power | 3.0 (kw) | 6.0/9.0(kw) | 6.0/9.0(kw) | 3.0 (kw) | 6.0/9.0(kw) | 6.0/9.0(kw) |
| Power Supply | 220V/50HZ/60HZ | 380V/50HZ | ||||
| Overall dimension (cm) | 122*51.5*162 | 135*53.5*173 | 145*65.5*188 | 99*55*174 | 112*74*190 | 134.5*77*223 |

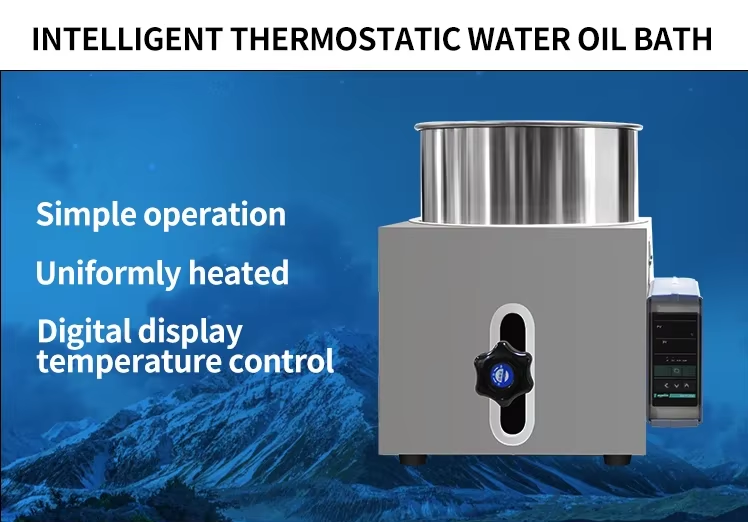

Thermostatic Water/Oil Bath

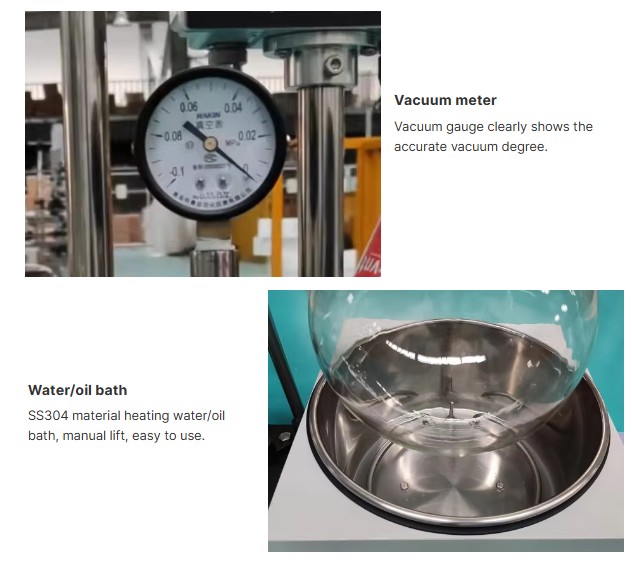

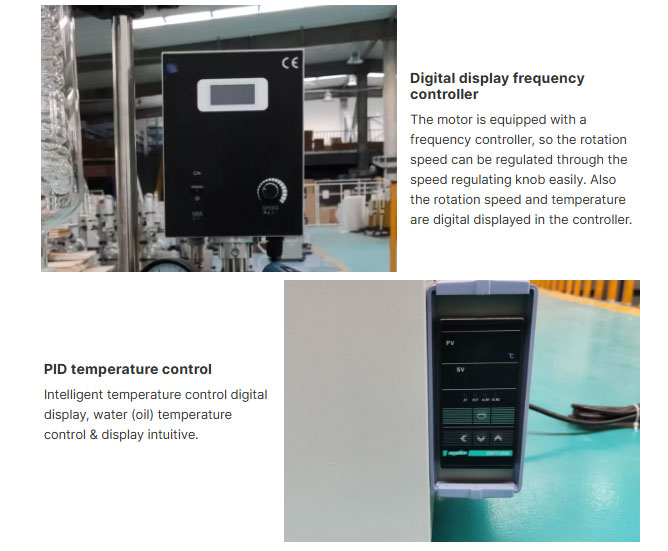

The thermostatic water/oil bath is designed specifically for the RE series rotary evaporator, providing precise constant temperature control for heat-sensitive materials. This high-quality bath allows for manual adjustment, enabling the rotary flask to be immersed in water or oil up to 1/3 to 1/2 of its liquid level. Crafted with a stainless steel liner and heating ring, it features a built-in electronic temperature sensor for accurate digital temperature control. Ideal for laboratories requiring consistent temperature conditions, this reliable instrument ensures safe and efficient operation in various applications.

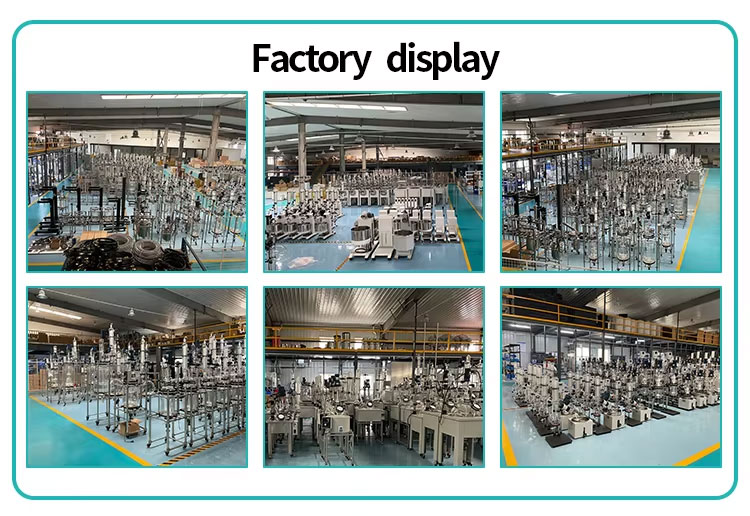

We are direct manufacturer, many kinds of rotary evaporators are provided. The rotary evaporator can also be customized according to customer requirements. Feel free to contact us to get more information.
