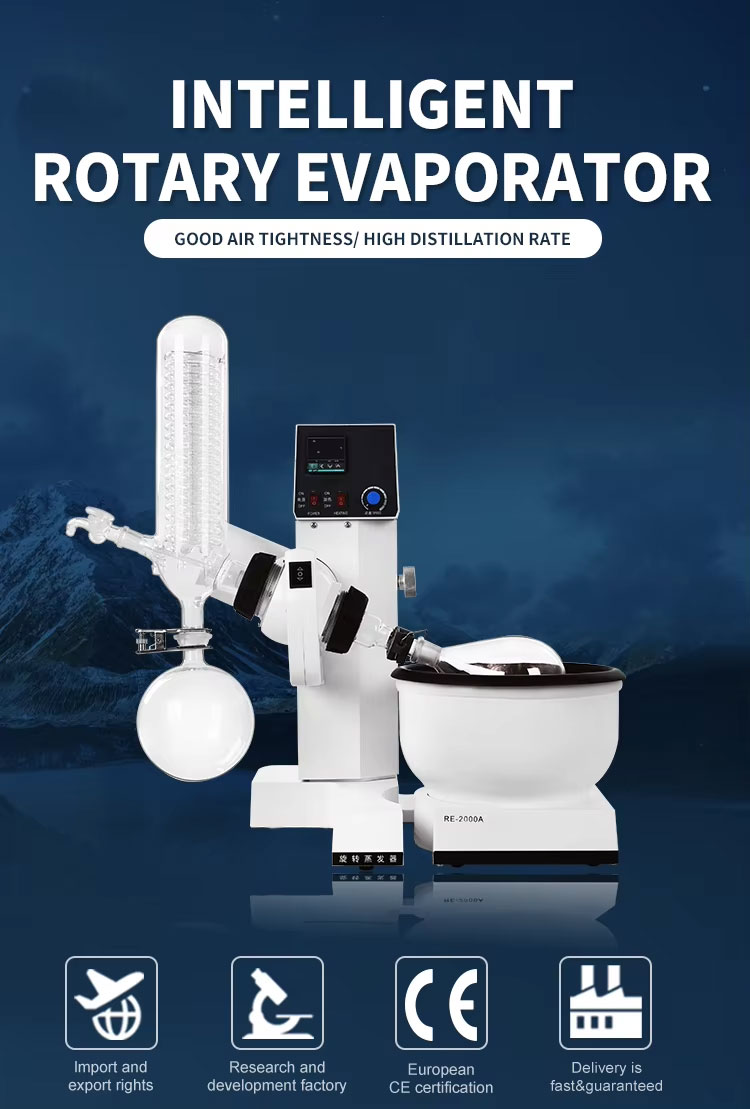

Mini Rotary Evaporator Electric Lift with Touch Screen Vacuum Control Best Price

Rotating Motor Power 40W
Heat Power 1.2KW
Rotation Speed 0~200r/min
Temp. Control Range water RT~99℃, oil RT-200℃
Lifting Motor Power 20W, Electric lift
Evaporating Speed (H2O) >20ml/min
Best Vacuum -0.098mpa

PRODUCT DETAIL

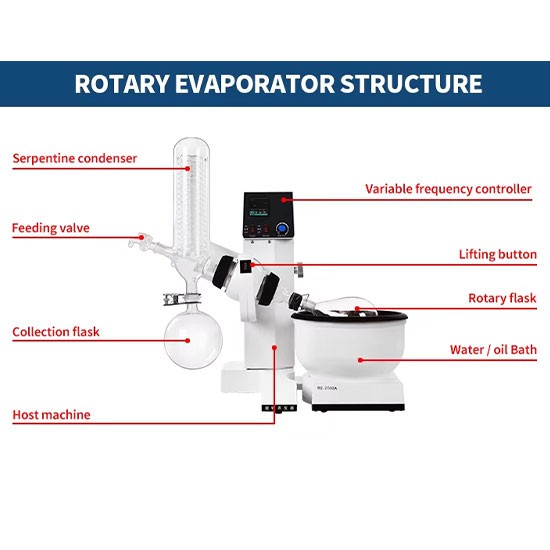

RE-series rotary evaporator is mainly used in the small-scale test, pilot-scale test and production in biological, chemical, food and other fields. As with large capacity and large-diameter rotary evaporating flask, when it is placed in a water bath, along with the simultaneous performing of rotating and heating, it allows the solution spreading and evaporating rapidly. The rotary evaporator is suitable for extracting solvent or separating mixed solution. It can be used in the following experiments or product production.

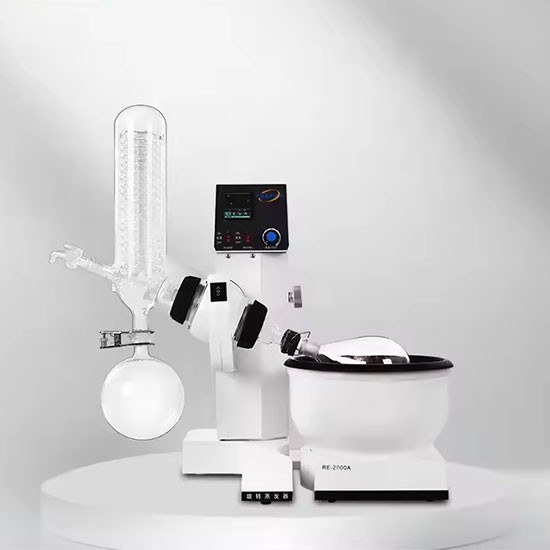

rotary evaporator.jpg

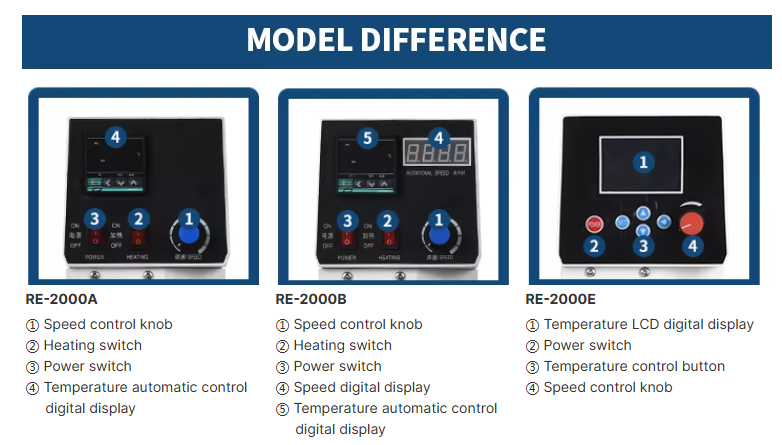

Model	RE-2000A	RE-2000B	RE-2000E
Rotating flask (L)	1L 24#	1L 24#	1L 24#
Collection flask (L)	1L35#	1L35#	1L35#
Speed regulation (rpm)	0~200(rpm)	0~200(rpm)	0~200(rpm)
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Temperature range (°C)	water: RT~99°C oil: RT~200°C (Customize 0~300°C)	water: RT~99°C oil: RT~200°C (Customize 0~300°C)	water: RT~99°C oil: RT~200°C (Customize 0~300°C)
Lifting motor power	20W	20W	20W
Rotating motor power	40(w)	40(w)	40(w)
Heating power	1200w	1200w	1200w
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz
Condensation area	0.17M²	0.17M²	0.17M²
Size of water bath pan	6L	6L	6L
Overall dimensions	630×400×(690~810)mm	630×400×(690~810)mm	630×400×(690~810)mm
Machine net weight	20.5KG	20.5KG	18.5KG
