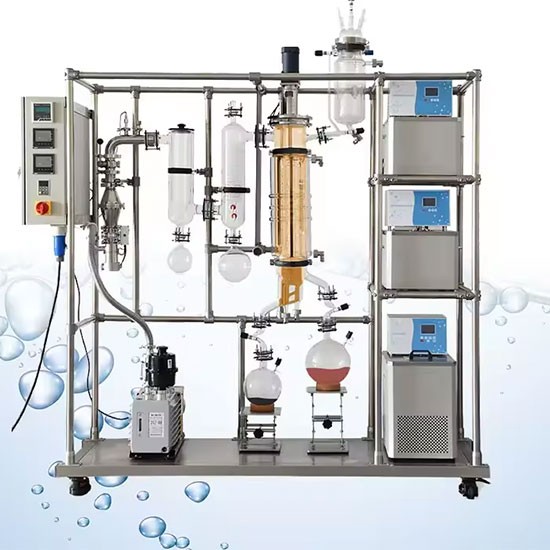

Herb Oil Short Path Molecular Wiped Film Distillation Unit Experimental System for Distilled Water and Molecular Weight Analysis

Dimension(L*W*H) 1100*500*1750mm
Effective Evaporation Area 0.15 M2
Condensation Area 0.2 M2
Barrel Inside Diameter 100 mm
Constant Pressure Drop Funnel 1.5L
Processing Flow 0.5-5.0 KG/H
Motor Power 120W
Max Rotation Speed 450W

PRODUCT DETAIL

Molecular distillation is a specialized liquid-liquid separation technology distinct from traditional distillation that relies on boiling point differences. This method operates in a high vacuum environment, allowing for the distillation and purification of heat-sensitive materials and high boiling point substances by utilizing the unique free path of molecular movement. It's widely used in various industries, including chemical, spice, petrochemical, plastics, and oil sectors, making it ideal for applications requiring high-efficiency separation and purification. Key features include advanced molecular distillation equipment, low thermal degradation, and precise extraction capabilities, ensuring optimal results in laboratory and industrial settings.

Molecular Distillation.jpg

Model	Effective evaporation area	Internal condensing area	Outer condensing area	Barrel Inside diameter	Constant pressure feeding funnel volume	Processing flow
FMD-60(B)	0.05	0.1	0.2	60	1.5	0.1∽2.0
FMD-80(B)	0.1	0.15	0.25	80	1.5	0.3∽4.0
FMD-100(B)	0.15	0.2	0.3	100	1.5	0.5∽5.0
FMD-150(B)	0.25	0.4	0.6	150	1.5	1.0∽8.0
FMD-200(B)	0.35	0.5	0.6	190	1.5	1.5∽10.0
FMD-230(B)	0.5	0.65	0.6	220	1.5	2.0∽15.0
