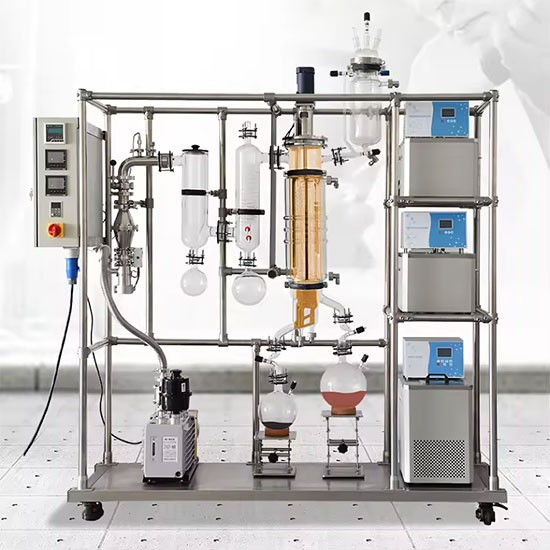

Available Stock Turnkey Oil Distiller Short Path Molecular Distillation Equipment for Efficient Water Extraction and Molecular Weight Analysis

Available Stock Turnkey Oil Distiller Short Path Molecular Distillation Equipment for Efficient Water Extraction and Molecular Weight Analysis

Effective Evaporation Area 0.15 M2
Condensation Area 0.2 M2
Barrel Inside Diameter 100 mm
Constant Pressure Drop Funnel 1.5L
Processing Flow 0.5-5.0 KG/H
Motor Power 120W
Max Rotation Speed 450W
Max. Vacuum 0.05mbar or 0.001mbar
Highest Temperature 230℃/300℃

PRODUCT DETAIL

Molecular distillation is an advanced liquid-liquid separation technology distinct from traditional distillation based on boiling points. This technique operates in a high vacuum environment, utilizing the unique molecular movement free path to distill and purify heat-sensitive or high boiling point materials. It is widely applied in various industries, including chemicals, spices, petrochemicals, plastics, and oils. This efficient process ensures high-quality separation and purification, making it essential for laboratory and industrial applications. Our product comes in different models and can meet the experimental requirements of different needs.You can contact us specifically

Molecular Distillation.jpg

Model	Effective evaporation area	Internal condensing area	Outer condensing area	Barrel Inside diameter	Constant pressure feeding funnel volume	Processing flow
FMD-60(B)	0.05	0.1	0.2	60	1.5	0.1∽2.0
FMD-80(B)	0.1	0.15	0.25	80	1.5	0.3∽4.0
FMD-100(B)	0.15	0.2	0.3	100	1.5	0.5∽5.0
FMD-150(B)	0.25	0.4	0.6	150	1.5	1.0∽8.0
FMD-200(B)	0.35	0.5	0.6	190	1.5	1.5∽10.0
FMD-230(B)	0.5	0.65	0.6	220	1.5	2.0∽15.0
