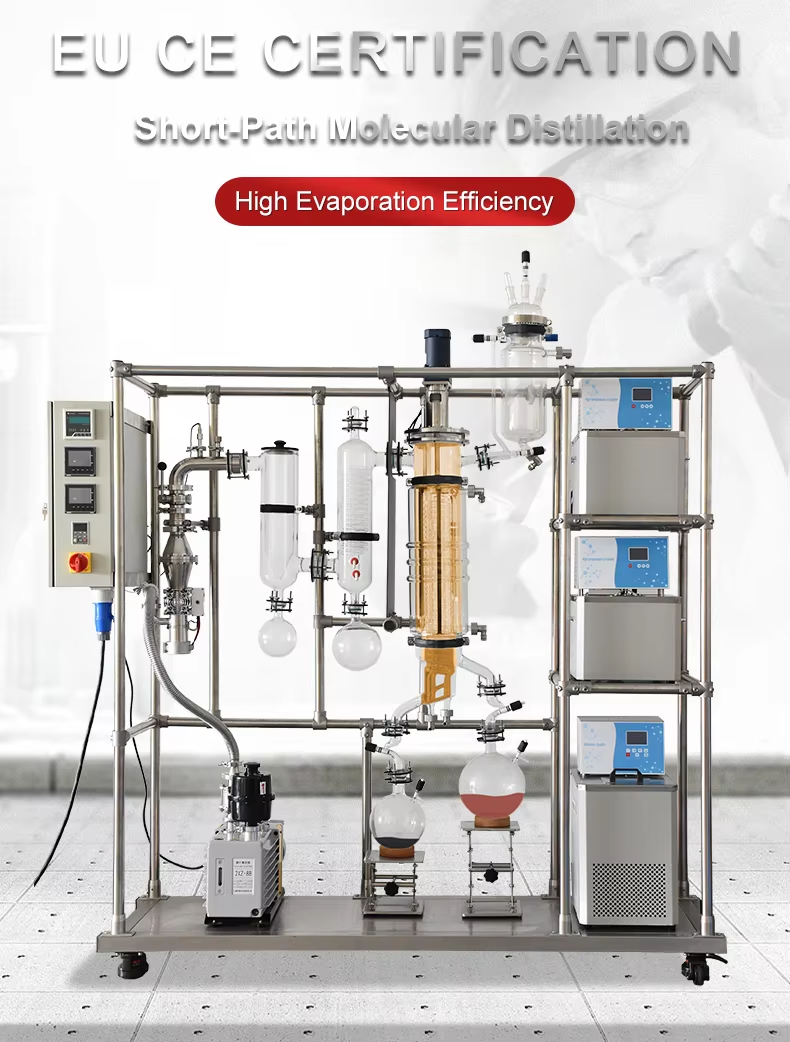

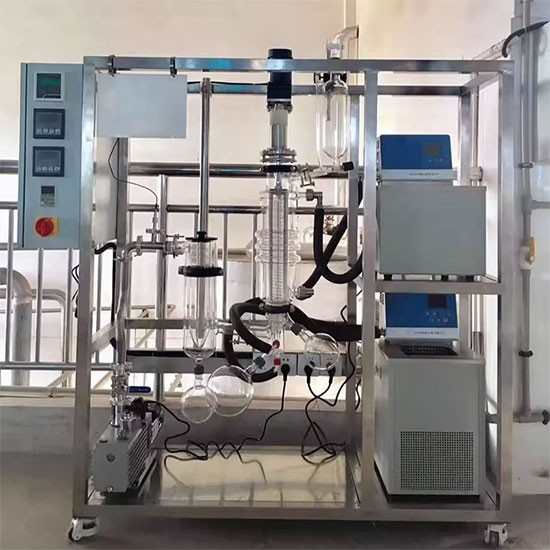

Compact thin film molecular distillation apparatus vacuum distillation equipment for distilled water molecular formula

Dimension(L*W*H) 1100*500*1750mm
Effective Evaporation Area 0.15 M2
Condensation Area 0.2 M2
Barrel Inside Diameter 100 mm

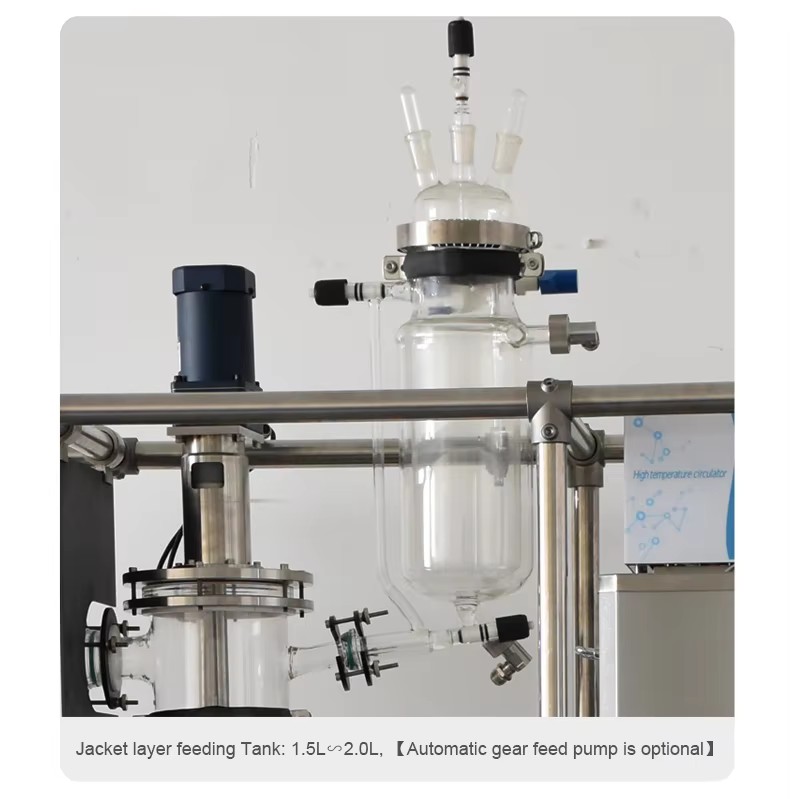

Constant Pressure Drop Funnel 1.5L
Processing Flow 0.5-5.0 KG/H

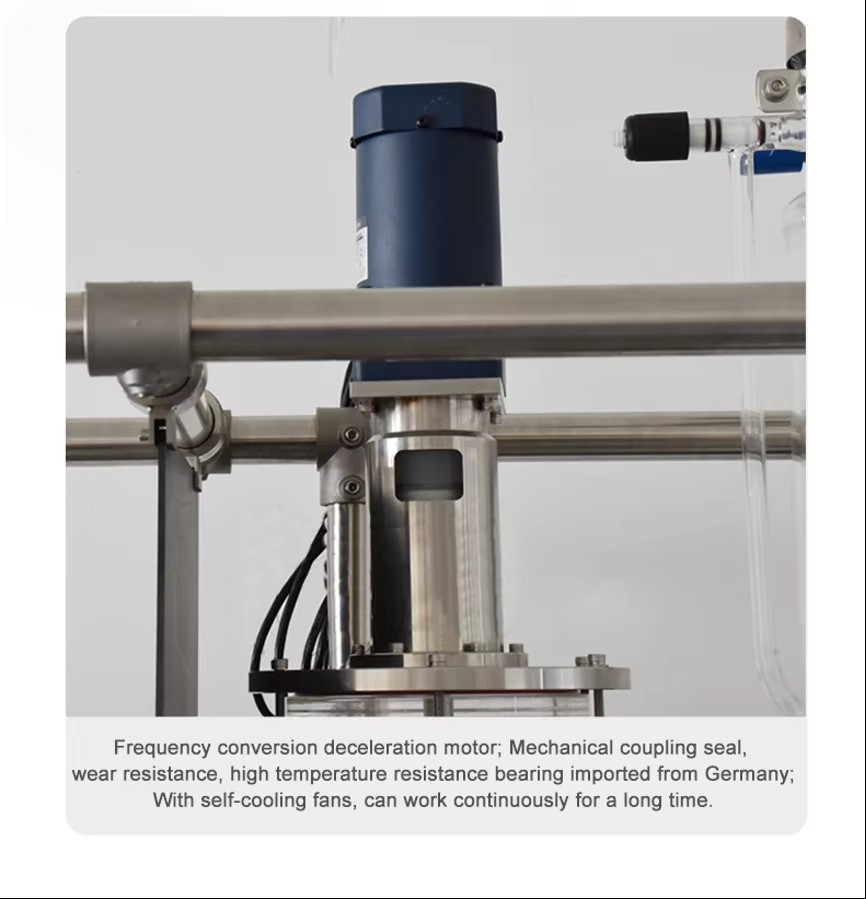

Motor Power 120W
Max Rotation Speed 450W

PRODUCT DETAIL

Molecular distillation is an advanced liquid-liquid separation technology distinct from traditional distillation methods that rely on boiling point differences. Operating under high vacuum conditions, this technique effectively purifies heat-sensitive materials and high boiling point substances by leveraging the varying molecular movement free paths. Ideal for applications in chemical, spice, petrochemical, plastics, and oil industries, our molecular distillation equipment ensures high separation efficiency and product purity. Enhance your laboratory's capabilities with our state-of-the-art molecular distillation systems for precise extraction and refinement.

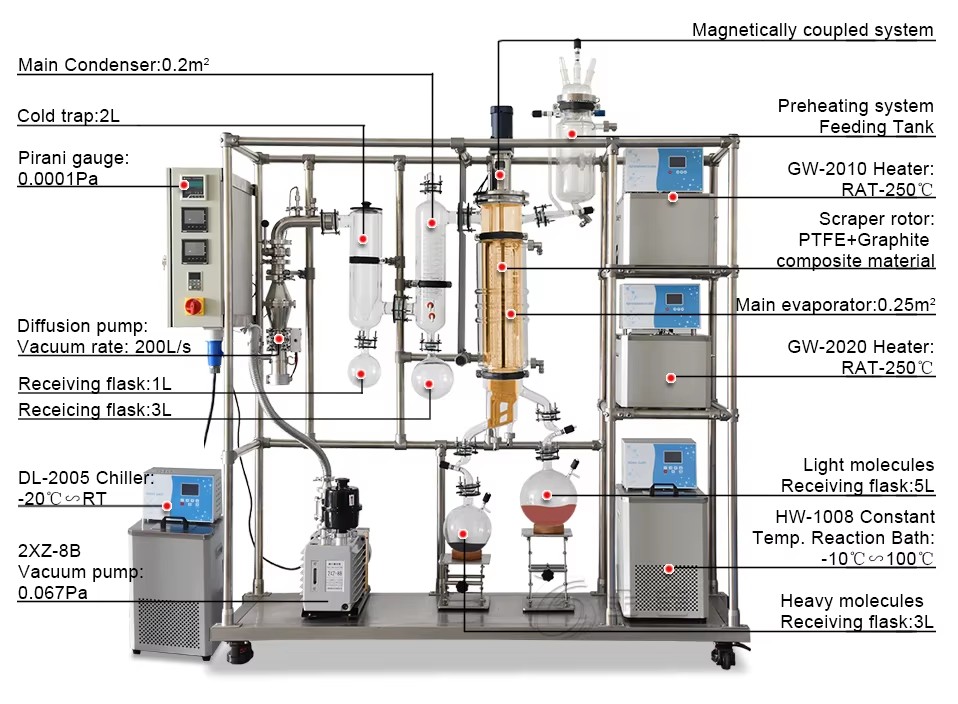

Molecular Distillation.jpg

Model	Effective evaporation area	Internal condensing area	Outer condensing area	Barrel Inside diameter	Constant pressure feeding funnel volume	Processing flow
FMD-60(B)	0.05	0.1	0.2	60	1.5	0.1∽2.0
FMD-80(B)	0.1	0.15	0.25	80	1.5	0.3∽4.0
FMD-100(B)	0.15	0.2	0.3	100	1.5	0.5∽5.0
FMD-150(B)	0.25	0.4	0.6	150	1.5	1.0∽8.0
FMD-200(B)	0.35	0.5	0.6	190	1.5	1.5∽10.0
FMD-230(B)	0.5	0.65	0.6	220	1.5	2.0∽15.0
