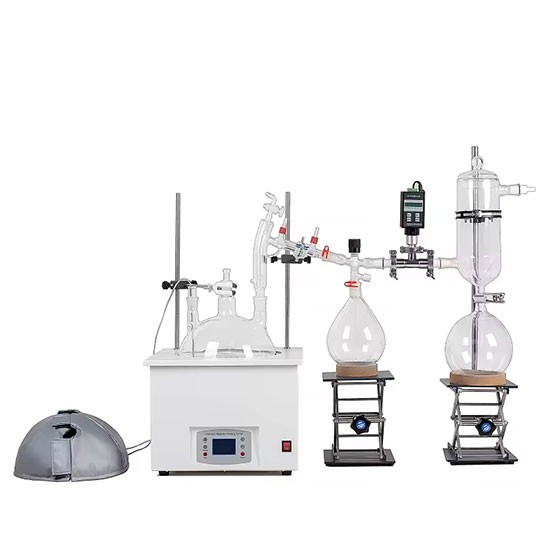

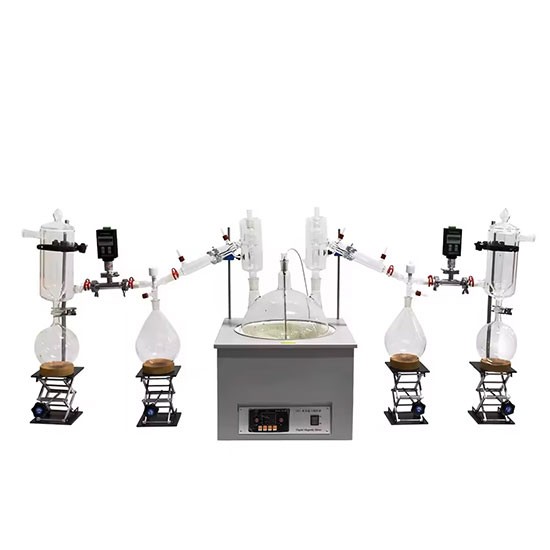

New High Vacuum Oil Extraction 10L 50L Short Path Distillation Industrial Oil Distillation Equipment

Stirring Speed 50-1800rpm
Boiling Flask 10L, 3 Neck
Short Path Distillation Head 2*Large vacuum jacket
4-way Adaptor Continuous discharging valve
Receiving Flasks 2*2L

PRODUCT DETAIL

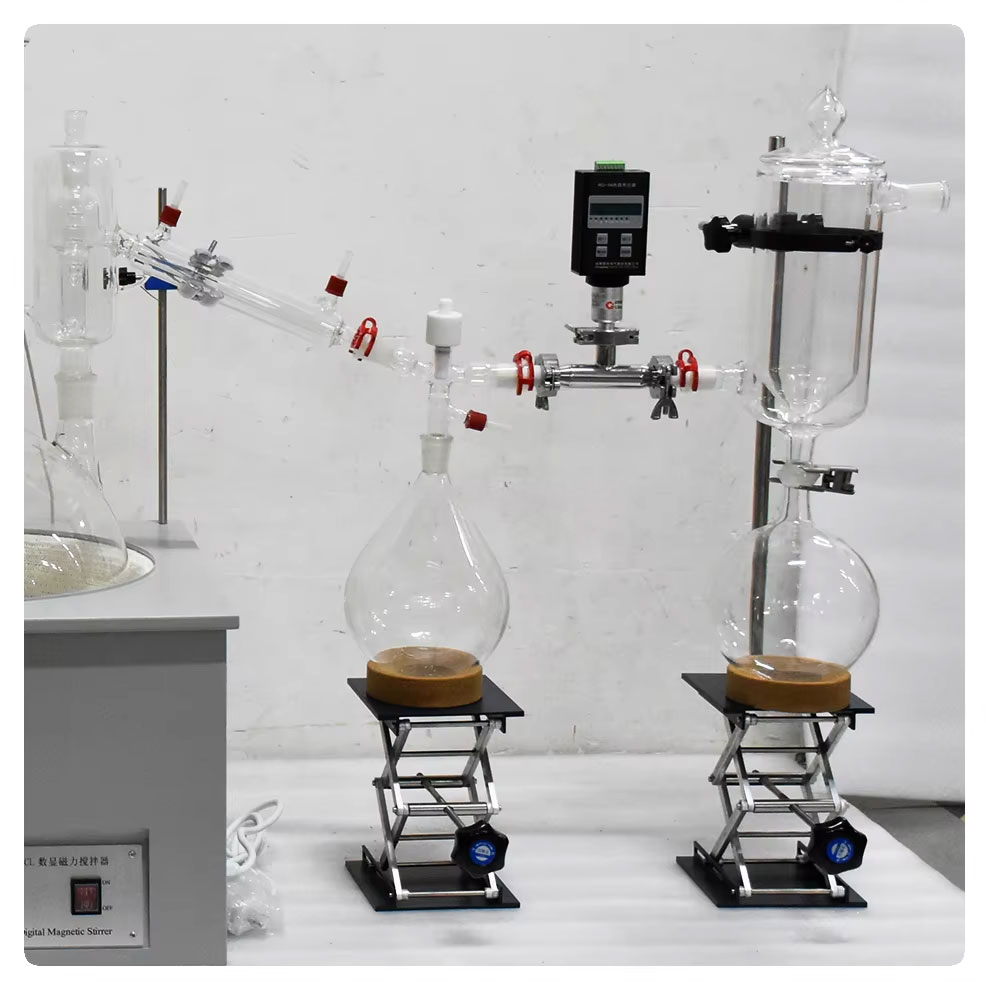

Short path distillation is an efficient separation process that utilizes boiling and condensation under vacuum conditions to isolate compounds. By reducing atmospheric pressure with a vacuum pump, the boiling points of the substances are lowered, allowing for quicker and more effective distillation of heavier molecules. This method follows the principles of molecular distillation and is ideal for thermal-sensitive products and polymer organic compounds, especially in the chemical and food industries. Laboratories often use heating mantles for optimal distillation performance, ensuring high separation

efficiency and preserving product integrity. Short path distillation.jpg

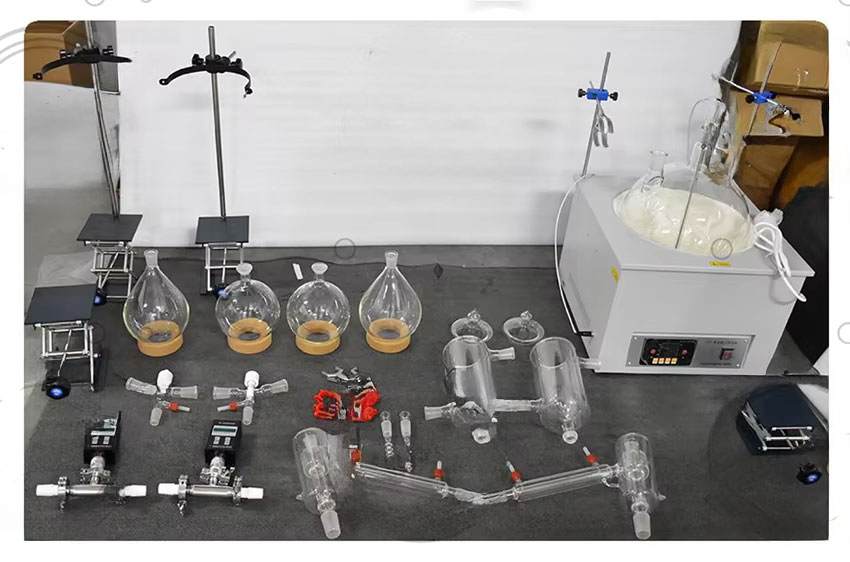

No.	Functional Configuration of 10L Short Path Distillation		Qty
1	Magnetic stirrer heating mantle	10L；2100W；50-1800 r/min；RT~380℃	1set
2	3 Neck boiling flask	10L； 24/39x2, 45/50	1pcs
3	Short path distillation head	Large vacuum jacket design for less heat loss; 45/50, 24/39, 3/8’’x2, 24/39	2pcs
4	New adaptor valve	PTFE Valve for continuously collected, 24/39x4, 3/8’’x3	2pcs
5	Receiving flasks	2L, 24/39	2pcs
6	Cold trap	Dry ice cooling with 10L receiving flask; 24/39x3	2set

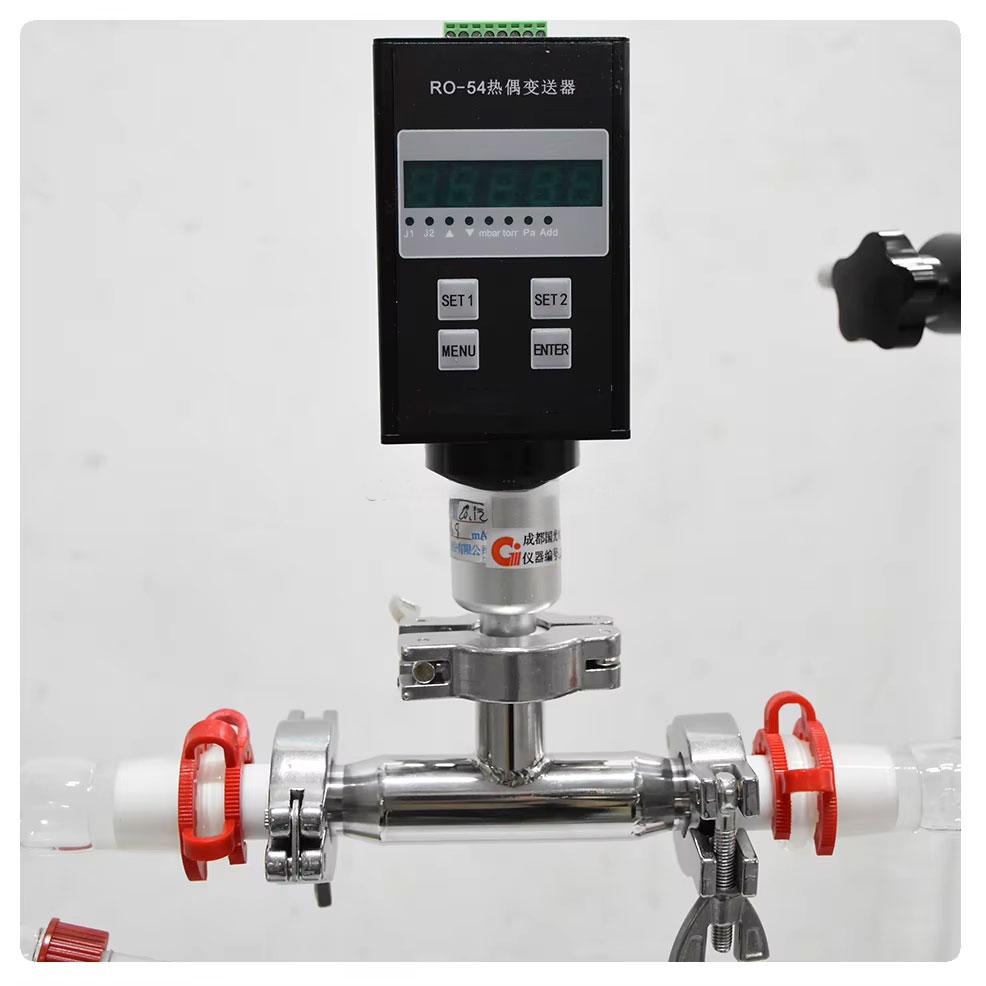

7	Thermocouple vacuum gauge	For monitoring the pressure	2pcs
8	Glass cock	For seal; 24/39	2pcs
9	Thermowell 1	For boiling flask	1pcs
10	Thermowell 2	For short path distillation head	2pcs
11	Plastic Hose Barb Adapter	GL14+8mm nozzle	6pcs
12	Plastic Keck Clips	The size is according the flask to standard	6pcs
13	Lab Jack	6" x 5" (150mm x 150mm) top plate	4pcs
14	Bracket ring	For Round Bottom Flasks and cold trap	2pcs
15	Metal Three Finger Clamp	To fixed short path distillation head	2pcs
16	KF25 PTFE adaptor	Match flexible stainless steel vacuum bellow for high vacuum environment	6pcs
