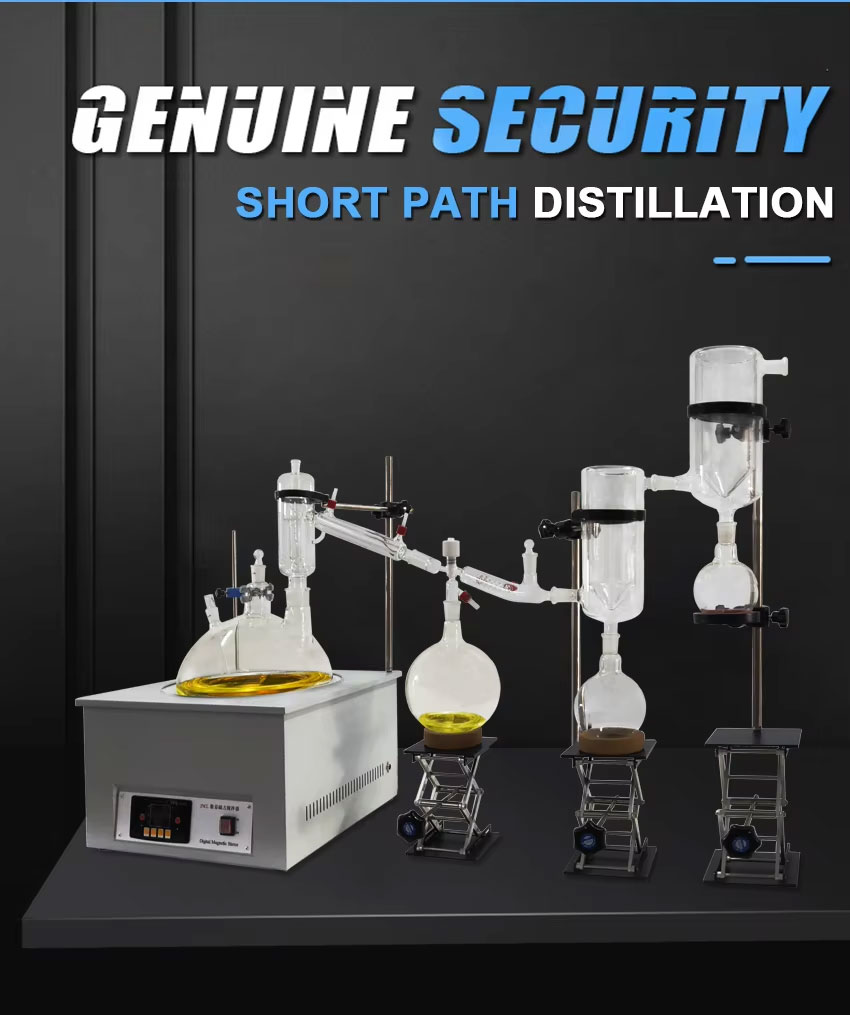

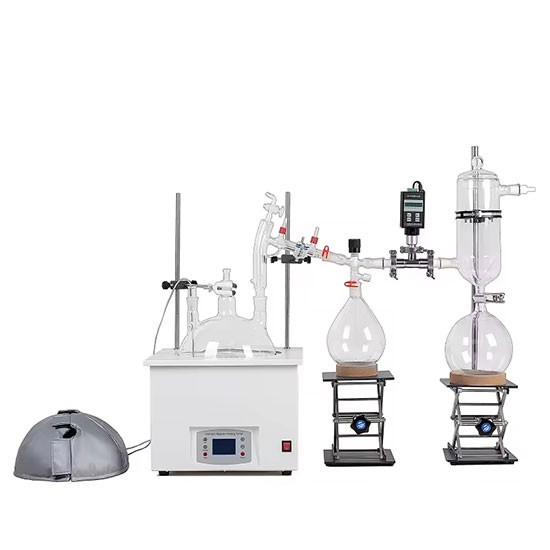

Complete 20L Short Path Distillation Equipment Laboratory Chemical Distillation Kit for Oil

Magnetic stirrer heating mantle 20L
Stirring Speed 50-1800 r/min
Boiling Flask 20L, 3 Neck
Short Path Distillation Head Large vacuum jacket
4-way Adaptor Continuous discharging valve
Round Bottom Flasks 5L

PRODUCT DETAIL

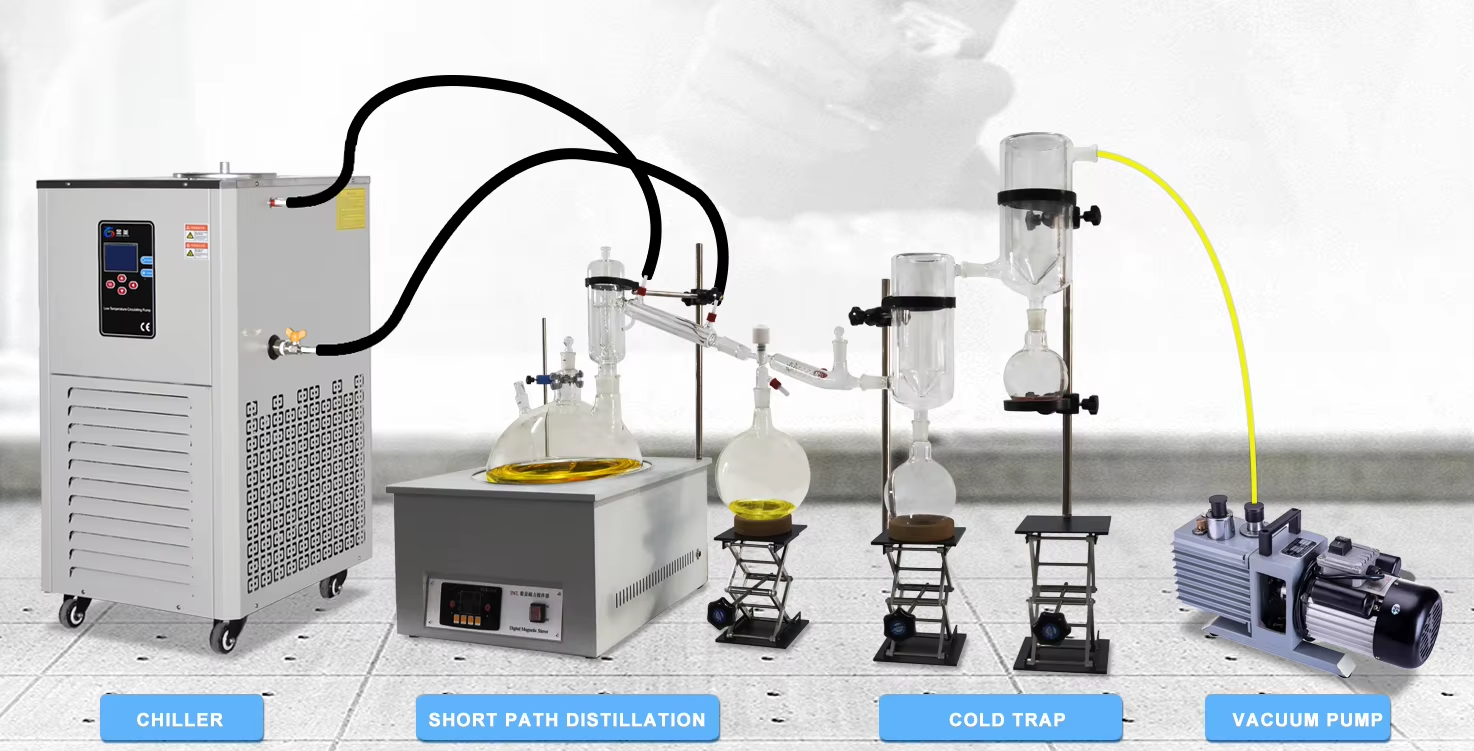

Short path distillation is an advanced process that separates compounds using a vacuum pump to lower atmospheric pressure, effectively reducing boiling points for faster, efficient distillation of heavier molecules. Designed based on molecular distillation principles, this technique is ideal for distilling polymer organic compounds and thermally sensitive products, commonly used in the chemical and food industries. Labs typically use a heating mantle for these high-boiling-point substances. Perfect for applications involving oil extraction and chemical distillation, this setup ensures high precision and reliability.

Equipment Laboratory.jpg

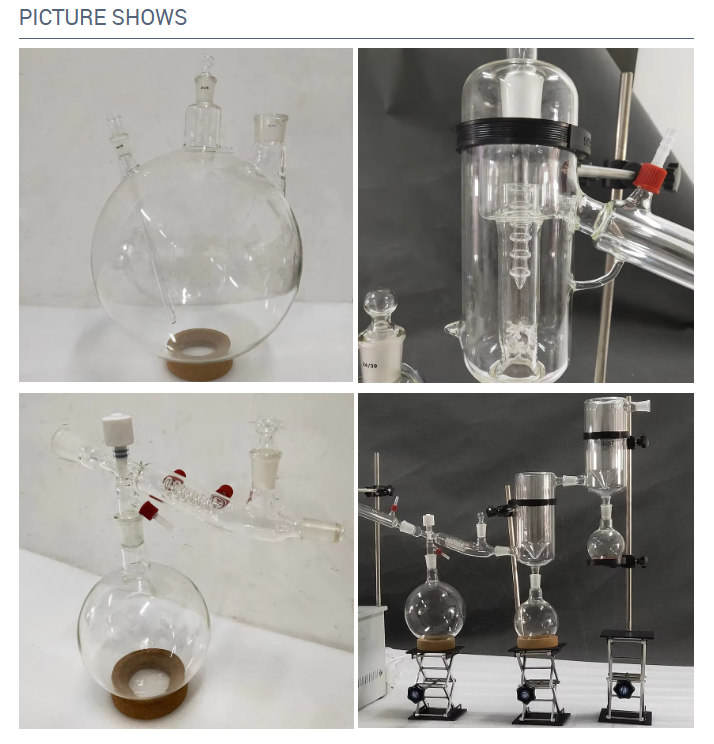

No.	Functional Configuration of 20L Short Path Distillation		Qty
1	Magnetic stirrer heating mantle	20L；3000W；50-1800 r/min；RT~380℃	1set
2	3 Neck boiling flask	20L； 24/39x2, 45/50	1pcs
3	Short path distillation head	Large vacuum jacket design for less heat loss; 45/50, 24/39, 3/8’’x2, 24/39	1pcs
4	New adaptor valve	PTFE Valve for continuously collected, 24/39x4, 3/8’’x3	1pcs
5	Round bottom flasks	3L, 24/39	1pcs
6	Cold trap1(Dry ice cooling)	With 3L receiving flask; 24/39x3	1set
7	Cold trap2(Dry ice cooling)	With 1L receiving flask; 24/39x3	1set
8	Glass cock	For seal; 24/39	1pcs
9	Thermowell 1	For boiling flask	1pcs
10	Thermowell 2	For short path distillation head	1pcs
11	Plastic Hose Barb Adapter	GL14+8mm nozzle	5pcs
12	Plastic Keck Clips	The size is according the flask to standard	10pcs
13	Lab Jack	6" x 5" (150mm x 150mm) top plate	3pcs
14	Bracket ring	For Round Bottom Flasks and cold trap	2pcs
15	Metal Three Finger Clamp	To fixed short path distillation head	1pcs
16	KF25 PTFE adaptor	Match flexible stainless steel vacuum bellow for high vacuum environment	1pcs
