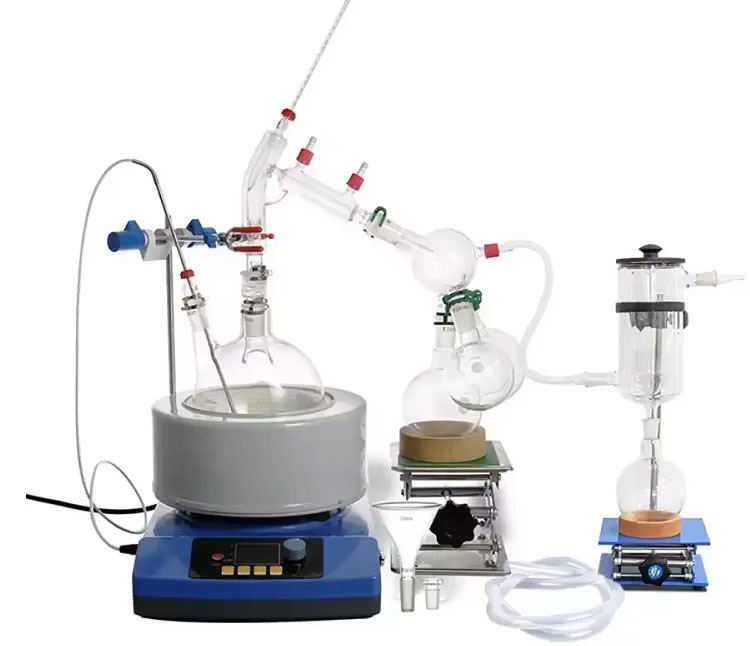

5L short path distillation kit turnkey molecular distillation system fractional distillation plant

Stirring Speed 50-1800r/min
Boiling Flask 5L, 3 Neck
Short Path Distillation Head 24/39
1to 3 Distillation Cow Receiver 500ml, 24/39
Round Bottom Flasks 500ml*3pcs

PRODUCT DETAIL

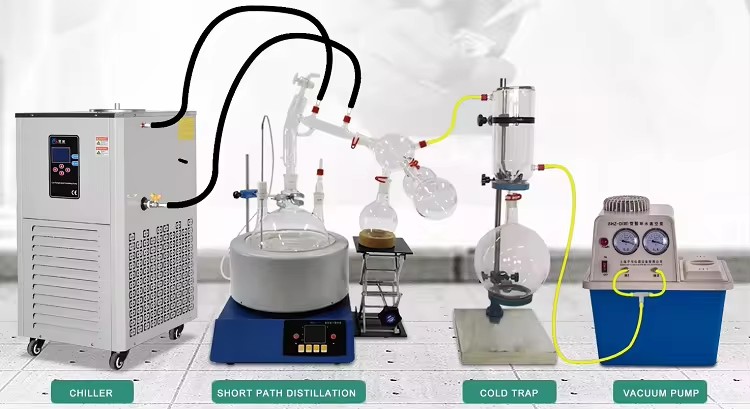

Short path distillation is a specialized technique used to separate compounds through boiling and condensation, utilizing a vacuum pump to lower atmospheric pressure within the system. This reduces the boiling points of compounds, allowing for faster and more efficient distillation of heavier molecules. Based on the principle of molecular distillation, this process is ideal for separating polymer organic compounds and thermal-sensitive materials, making it widely used in the chemical, food, and pharmaceutical industries. For high boiling point substances, labs typically use a heating mantle to perform the distillation.

short path distillation.jpg

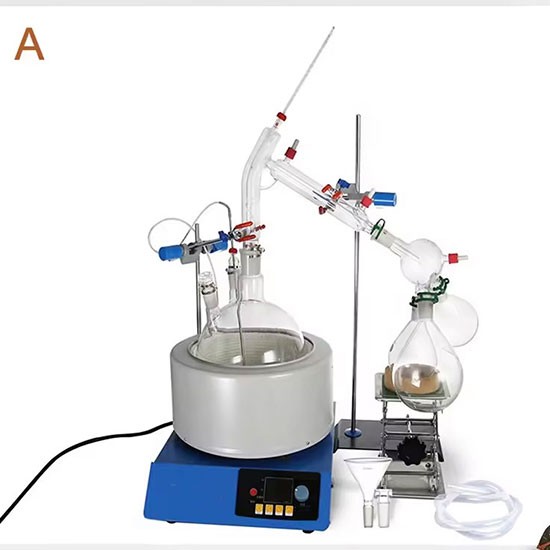

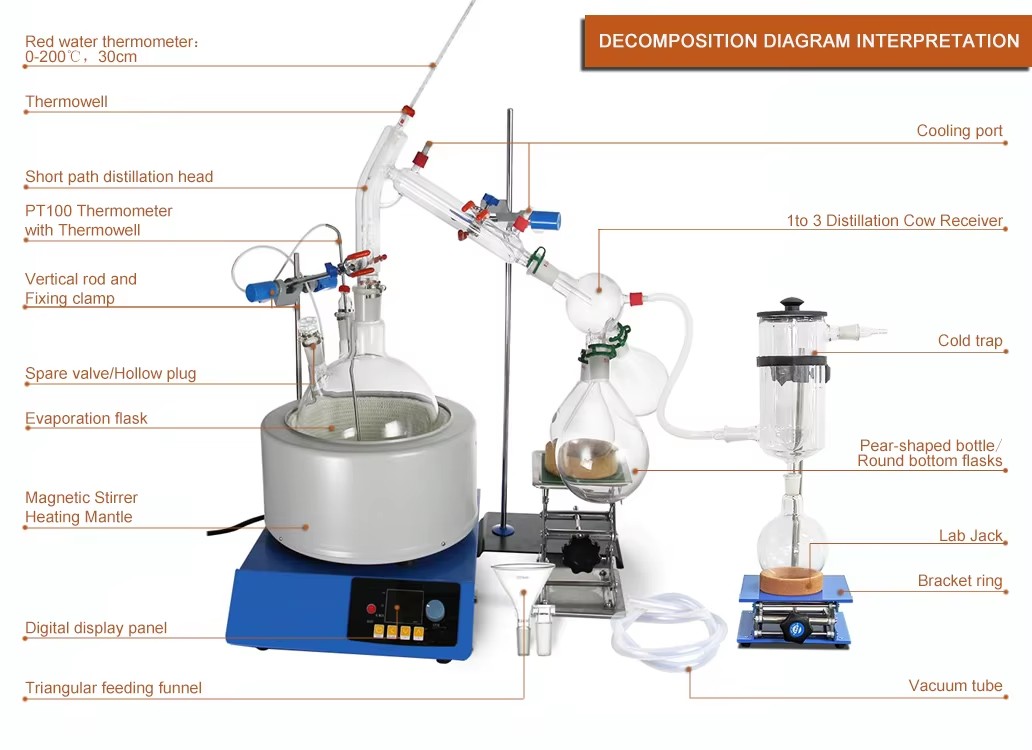

No.	Functional Configuration of SPD-5 (A)		Qty
1	Magnetic stirrer heating mantle	5L；1100W；50-1800r/min；RT~380℃	1set
2	3 Neck boiling flask	5L； 24/39x2, 29/43	1pcs
3	Short path distillation head	24/39x2, 19/39, 3/8’’x2	1pcs
4	1to 3 Distillation Cow Receiver	250ml, 24/39x4, 3/8’’	1pcs
5	Round bottom flasks	500ml, 24/39	3pcs
6	Cold trap(Dry ice cooling)	With 2L receiving flask	1set
7	Glass cock	For seal; 24/39	1pcs
8	Class valve	24/39 For boiling flask	1pcs
9	Thermometer	19/39	1pcs
10	Plastic Hose Barb Adapter	GL12+8mm nozzle	5pcs
11	Plastic Keck Clips	The size is according the flask to standard	8pcs
12	Lab Jack	6" x 5" (150mm x 150mm) top plate	1pcs
14	Metal Three Finger Clamp	To fixed short path distillation head	3pcs
