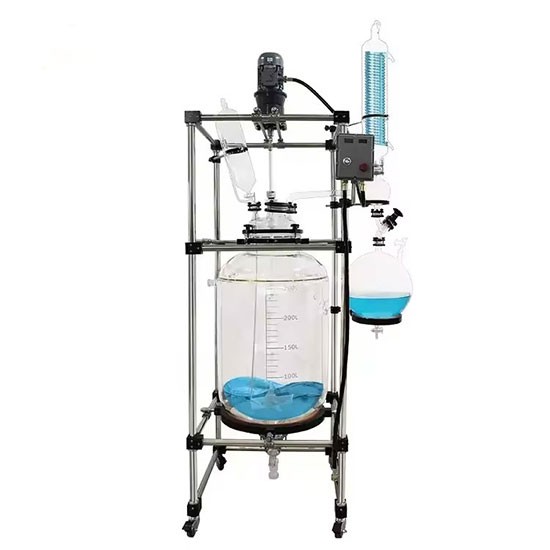

250L Laboratory chemical high borosilicate cylindrical dual layer jacketed glass reactor turnkey system reactor light glasses

Working Volume 250L
Jacket volume 80L
Stirring speed 0-600r/min (1:3)
Sealing shaft Mechanical seal
Reflux Standard
Constant pressure drop funnel Standard
Working temperature -120~300℃
Working pressure -0.1~0.1Mpa
Certification CE

PRODUCT DETAIL

layer jacketed glass.jpg

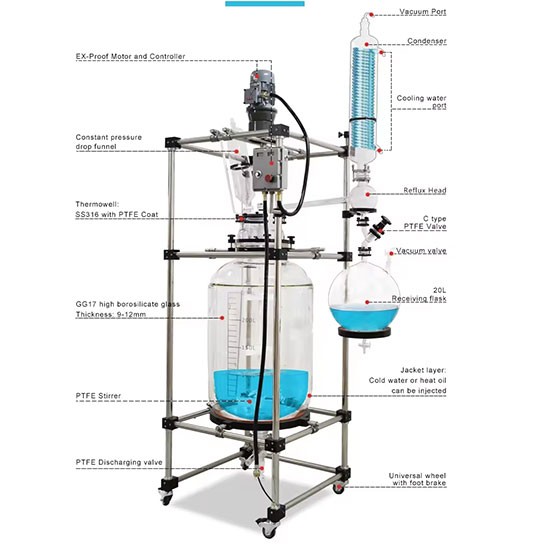

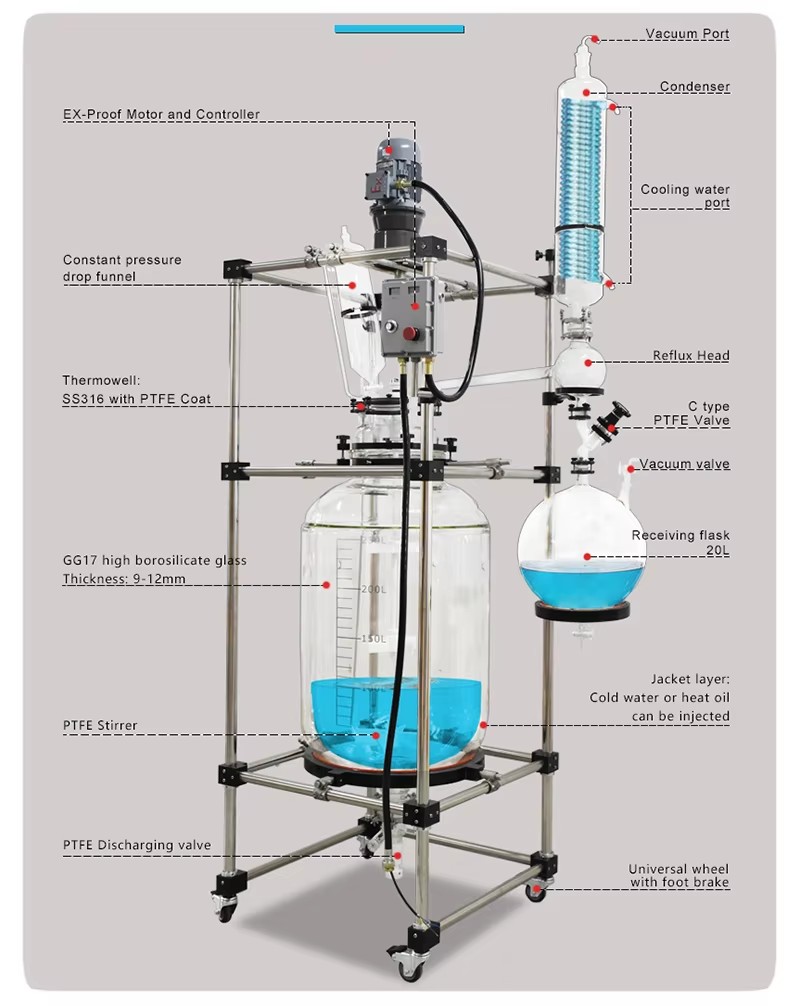

No.	Model	S212-250L

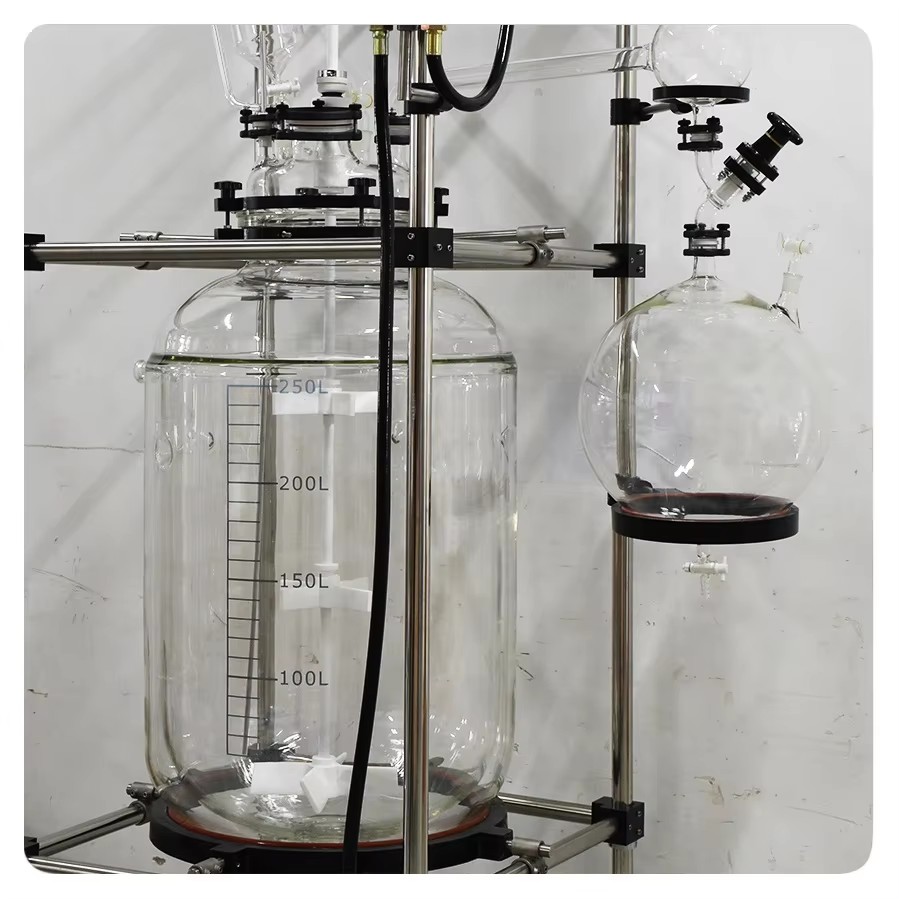

1	Reaction capacity	250L
2	Jacketed volume	80L (Vessel body size: ID 610mm, OD 668mm )
3	Tolerance temperature	-120℃~300℃

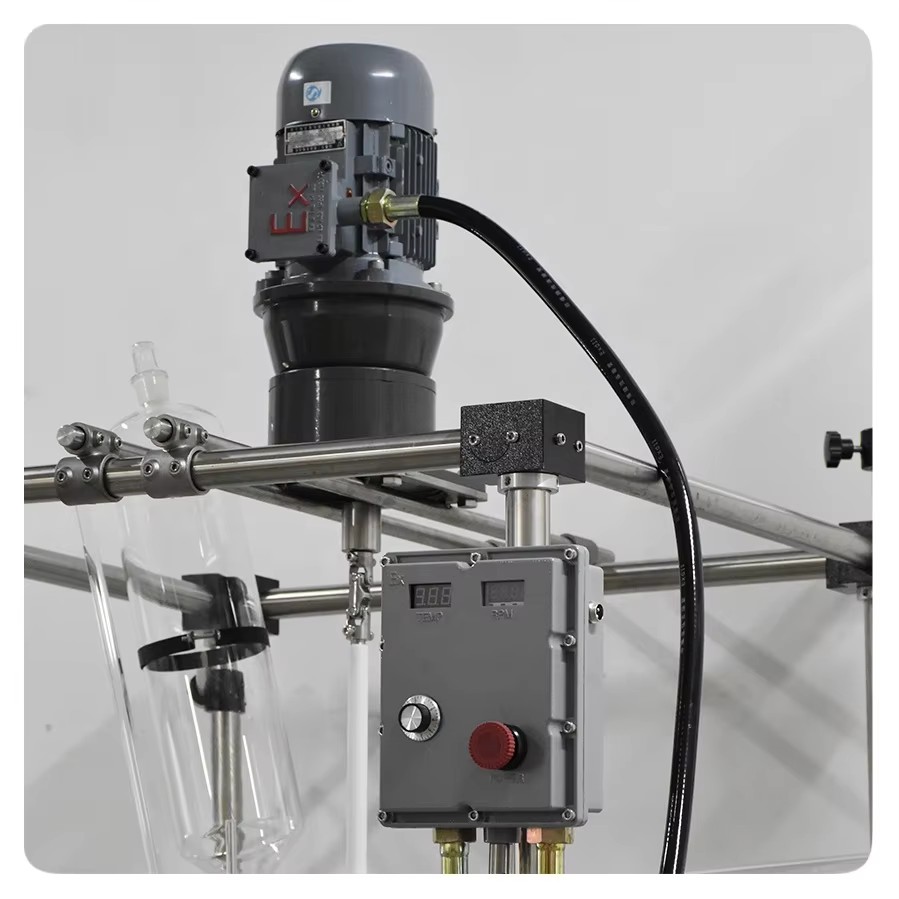

4	Motor	750W Variable frequency decelerating motor
5	Rotating speed	0-600rpm
6	Controller	Speed adjustment, temperature and speed LCD digital display
7	Voltage	220V/50Hz(110V/60Hz optional)
8	Working pressure	-0,1Mpa~0.1Mpa (-1bar~1bar)

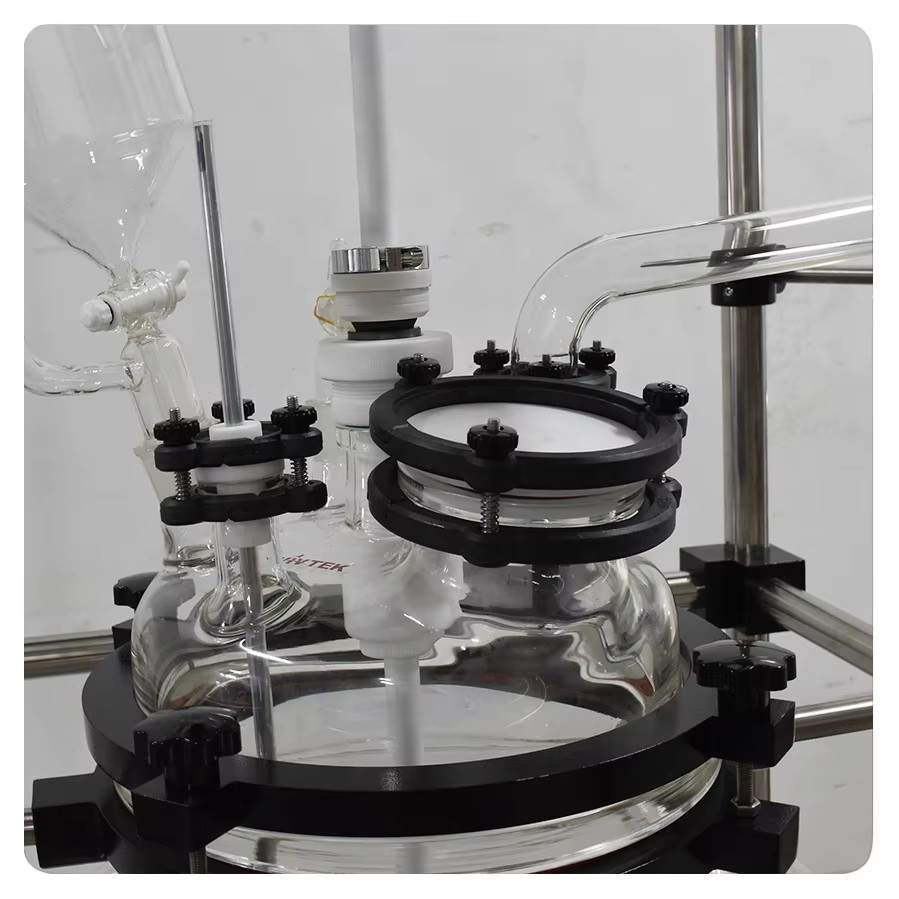

9	Six port on lid	50# Refulx/Condenser+43# Thermometer+40# Drop funnel +34# Spare valve+ 60#Flange Stirrer+120# Soild adding port
10	Mechanical seal	PTFE + Silicon Carbide + Ceramic
11	Spare valve	Used for adding liquid, venting air or filling nitrogen
12	Thermometer tube	SS316 with PTFE coat
13	Condenser	Spiral condenser: φ160MM， H:910MM
14	Reflux separator	2L
15	Constant pressure drop funnel	2L
16	Discharge valve	PTFE, Removable (Drain port: ID:30MM, OD:40MM)

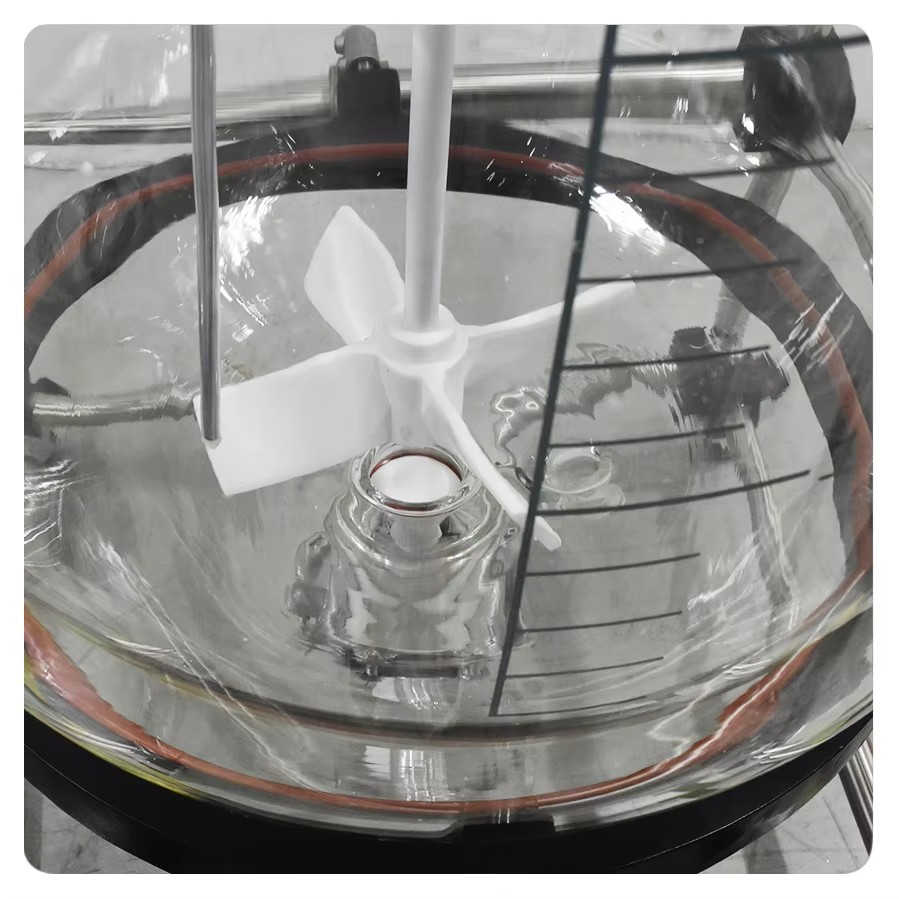

17	PTFE Stirrer	Three layer four-blade type; (Diameter of Blade: 260MM，Wide of Blade: 65MM, Length:1550MM）
18	Frame/support rob and base	304 Stainless steel
19	Fixed parts	Aluminum alloy( For kettle body and kettle cover)
20	Tray	Aluminum alloy( For kettle body)
21	Inlet/outlet oil port	Pagoda joint/Ball-mill Joint
22	Hexagon wrench	Some
23	Connect Tube	Insulation pipe
