Dimension(L*W*H) 67*65*192cm

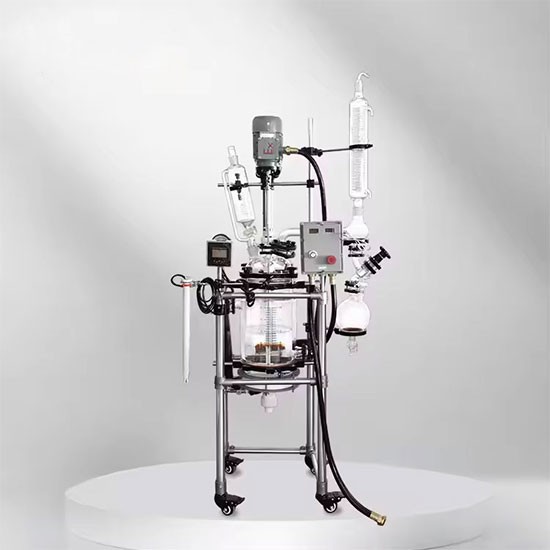

Product name Jacketed Glass Reactor
Glass Material High Brosilicate Glass 3.3
Material Capacity 10L
Jacket Capacity 3L
Sealing PTFE sealing
Rotating Speed 0~600rpm
Working temperature -120℃~300℃
Working pressure -0.1~0.1Mpa
PRODUCT DETAIL
| Model | EXS212-10L | EXS212-20L | EXS212-30L | EXS212-50L | EXS212-80L | EXS212-100L |
|---|---|---|---|---|---|---|
| Jacket capacity | 3L | 6L | 10L | 16L | 25L | 30L |
| Material capacity | 10L | 20L | 30L | 50L | 80L | 100L |
| Speed | 0~600rpm | |||||
| Power | 120W | 200W | ||||
| 6 kettle covers | Can be customized according to the requirements of guests | |||||
| Kettle cover diameter | 265MM | 340MM | ||||
| Temperature | ||||||
| The stirring rod | PTEE material | |||||
| Kettle body | High borosilicate glass | |||||
| Power supply | 220V/50Hz | |||||
| Size (cm) | 67*65*192 | 72*70*202 | 65*75*240 | 75*70*245 | 77*72*248 | 78*73*250 |
