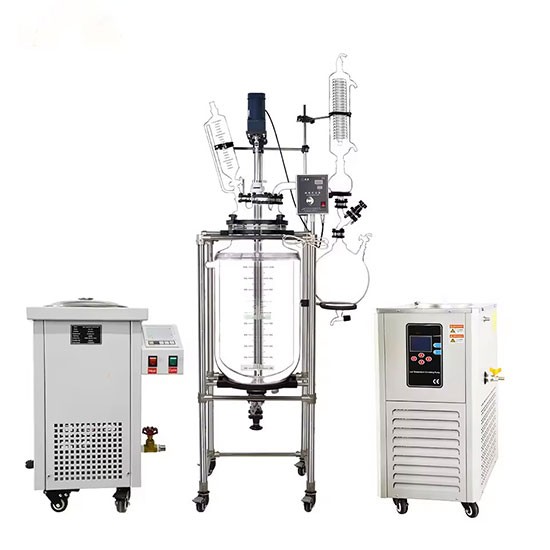

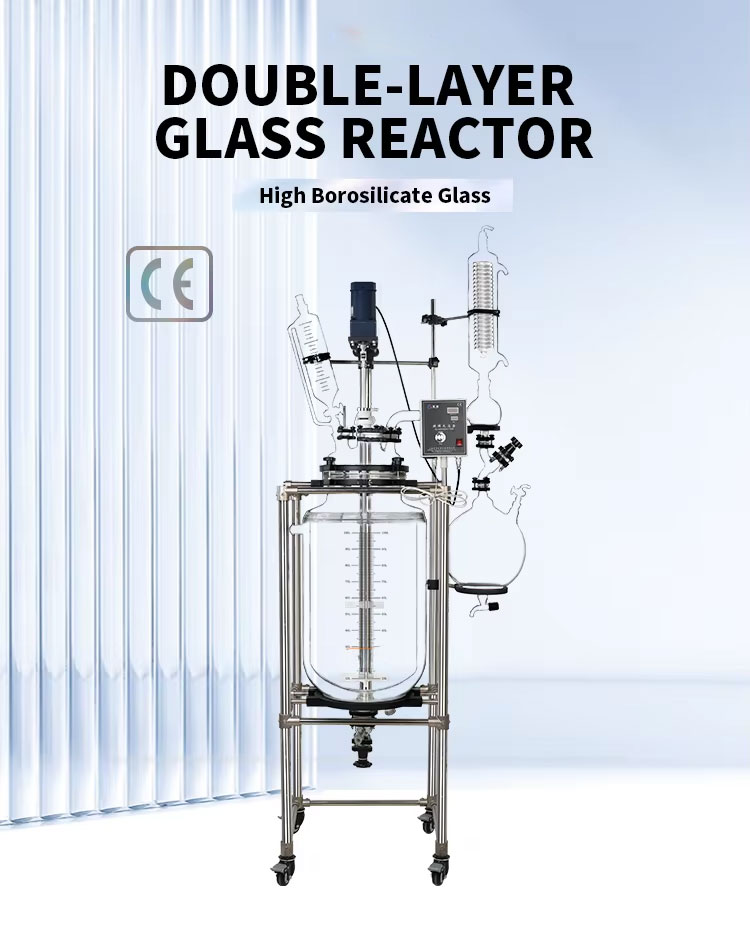

1L 5L 10L 30L 100L double wall jacketed glass reactor for lab use, 10L 50L 30L lab reactor, chemical glass reactor

  PRODUCT  DETAIL

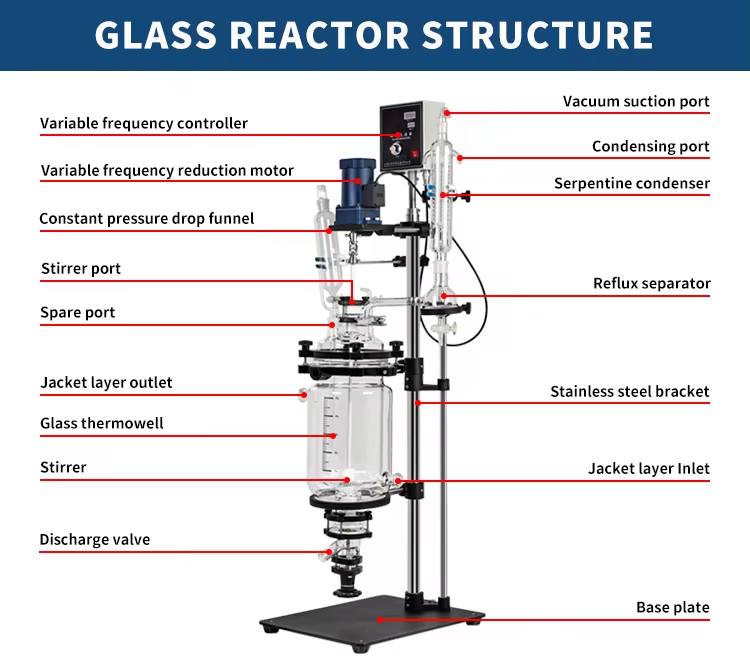

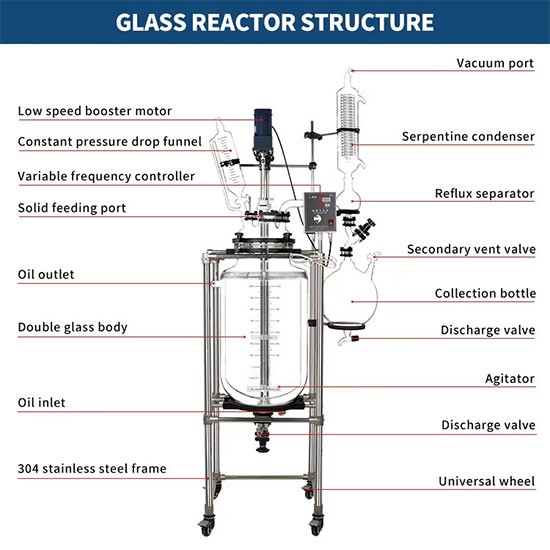

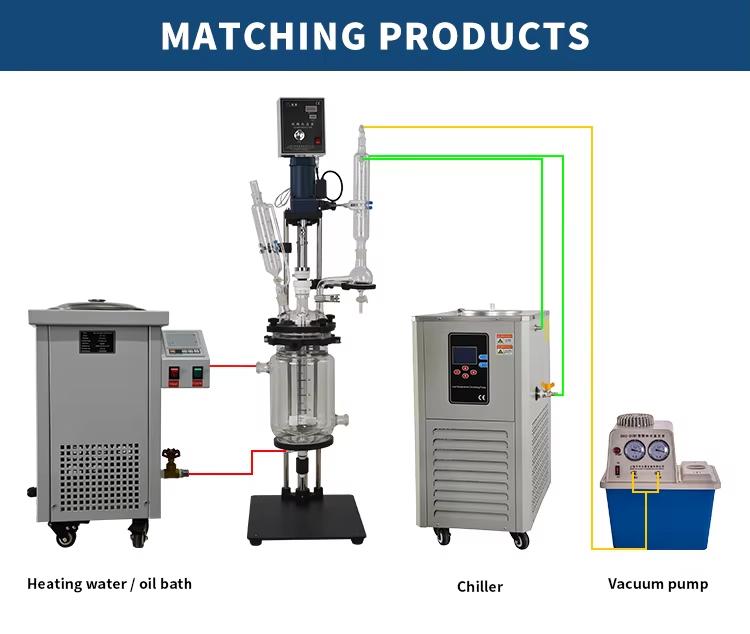

The jacketed glass reactor is ideal for experiments involving material synthesis, distillation, concentration, and separation. This reactor features an inner and outer layer, with circulation fluid in the outer layer to regulate temperature. By injecting thermostatic heating or cooling media, it maintains a constant temperature for heating and cooling materials. Additionally, the reactor includes a mixing function and can achieve vacuum conditions for negative pressure experiments. Material addition is controlled via a constant pressure funnel or regulating valve in the feeding flask, while the condenser’s heat exchange function facilitates distillation and collection.

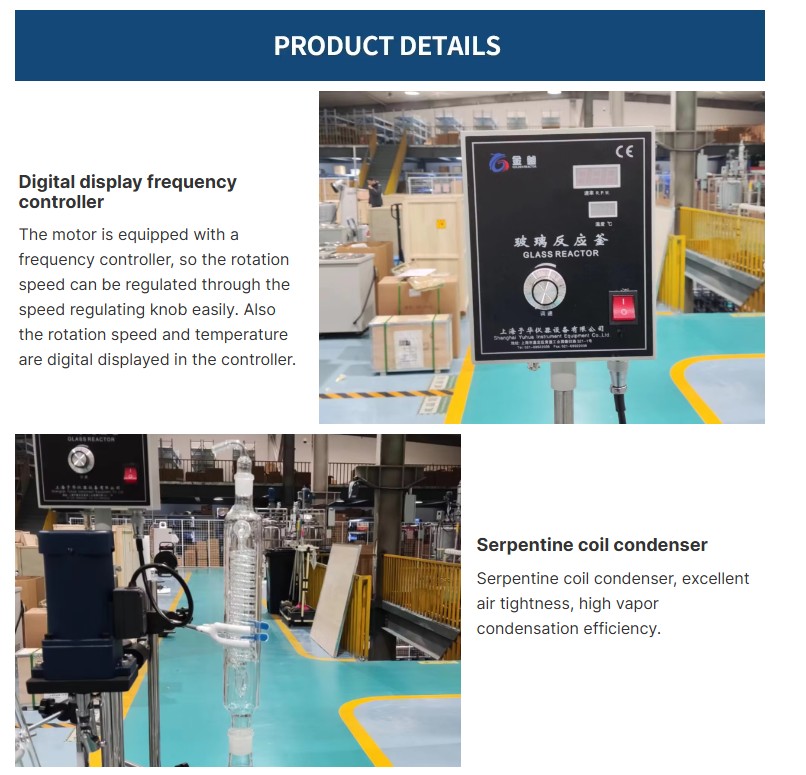

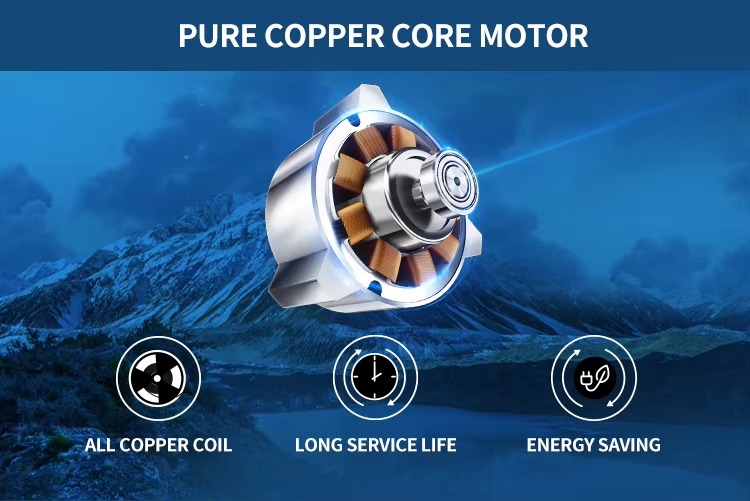

Speed control motor

The All-Copper Brushless Variable-Frequency Speed Regulating Motor offers exceptional performance with no brushes, eliminating sparks and reducing noise. This motor is designed for safety, stability, and long lifespan, featuring overload protection and constant speed for reliable operation. It ensures stable starting and is available with an optional explosion-proof feature, making it ideal for demanding industrial and laboratory environments.

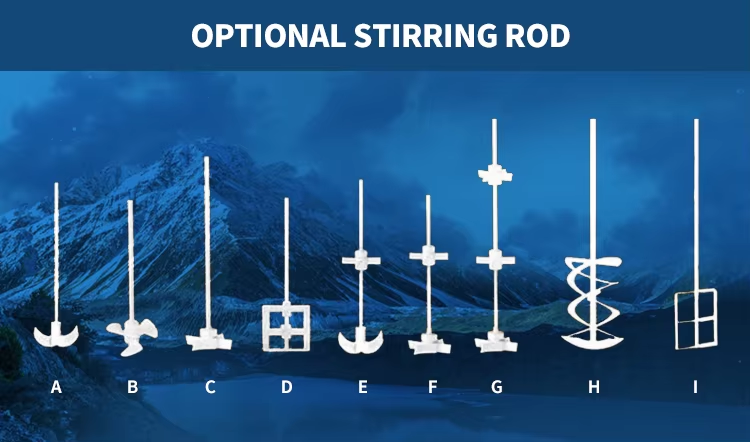

Various stirrers

The stirrer is constructed from 316L stainless steel wrapped in a PTFE coat, offering excellent corrosion resistance. (316L stainless steel is optional.) The stirring blade is fully customizable, and we provide a range of blade shapes to meet your specific needs. This design ensures durability and versatility for a variety of laboratory and industrial applications.
