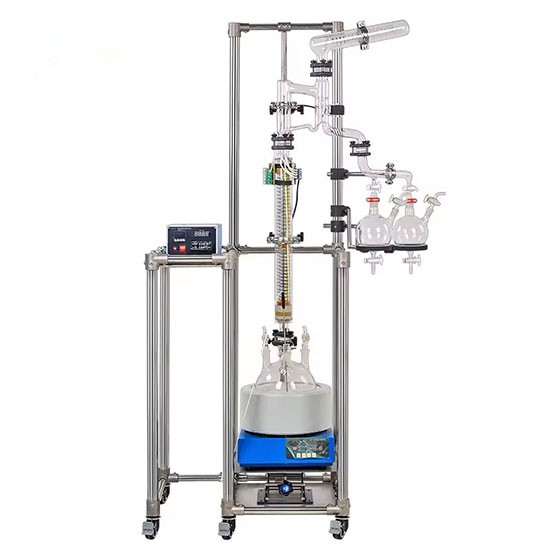

Industrial Fractionating Distillation Column Rectification Equipment for High-Efficiency Separation

Name 2L Lab rectifying column
kettle 2000ML
column D30*L800mm
Heater controller 500W
Distillation head Reflux ratio distillation head
Application1 Distillation of petroleum distillation alcohol
receiver 2000ML
Return ratio controller 1:99(99:1)

PRODUCT DETAIL

The fractionation process allows gas and liquid to interact fully, enabling efficient heat exchange. This leads to the separation of low boiling point components at the top of the column, while higher boiling point components remain in the receiving vessel, effectively purifying substances with varying boiling points. This equipment is ideal for the separation and purification of organic mixtures in petrochemical, food, and pharmaceutical industries. It excels in distilling alcohol, ether, and traditional Chinese medicine volatile oils under constant or variable pressure, offering high separation efficiency and ease of use. Perfect for laboratory and industrial applications, this distillation column enhances productivity in chemical processing.

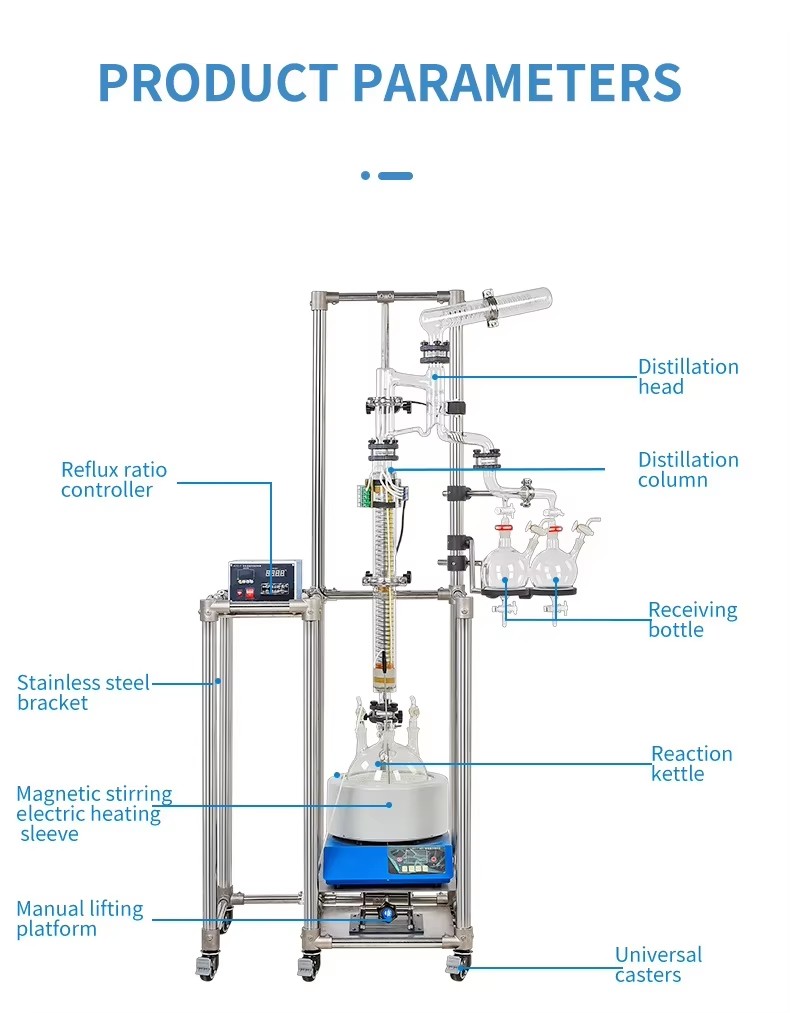

Column Rectification.jpg

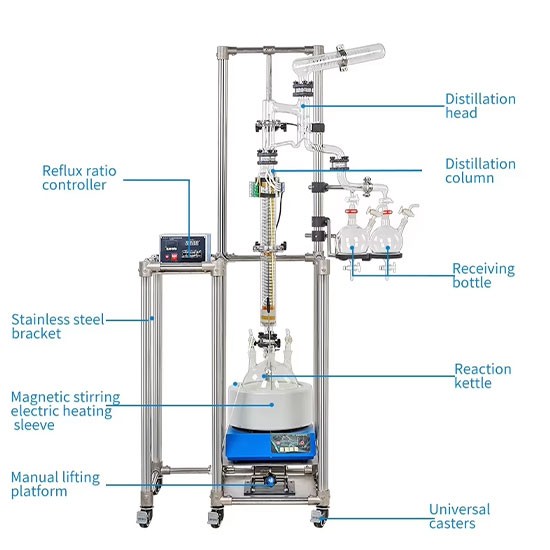

No.	Name	Specification	Quantity	Describe
1	The distillation kettle	2000ml	1pcs	Four port evaporation flask / tower joints, temperature measuring port, feeding port and spare port
2	Thermowell		1pcs	Evaporation flask temperature test
3	Glass valve	24#	2pcs	Feeding liquid
5	Precision distillation column	D30×L800mm	1pcs	The upper and lower ports are 24 # standard grinding ports (also made as required) built-in electric heating wire
6	Heater controller		1pcs	The matching distillation column uses a controller to the temperature

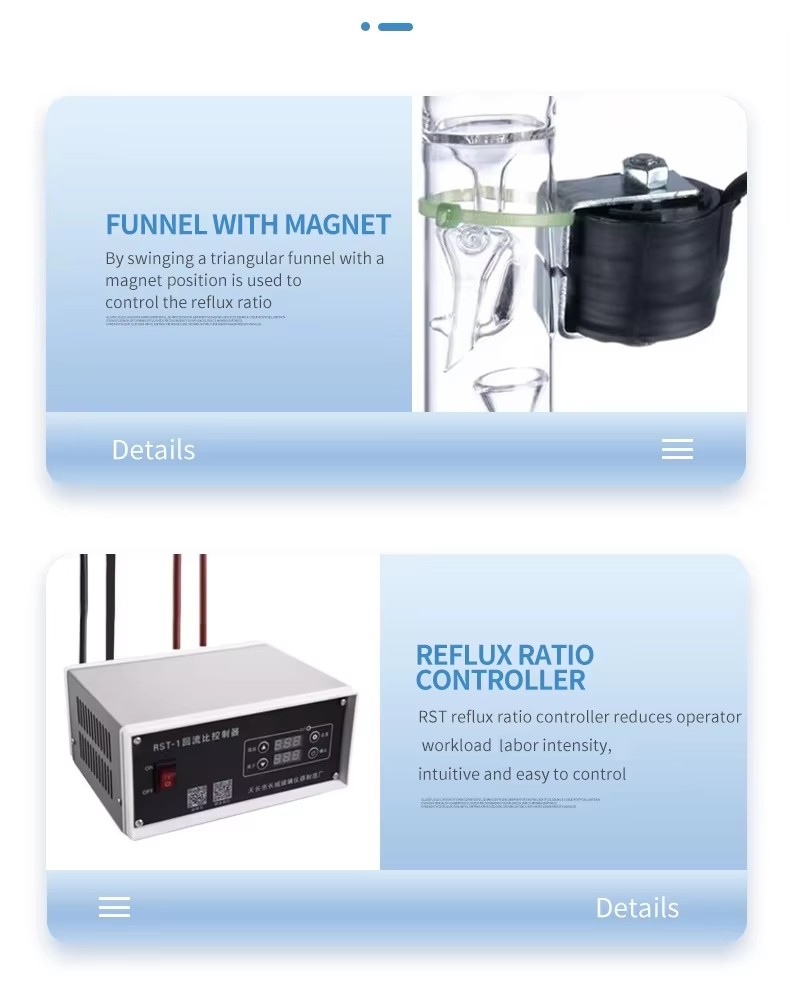

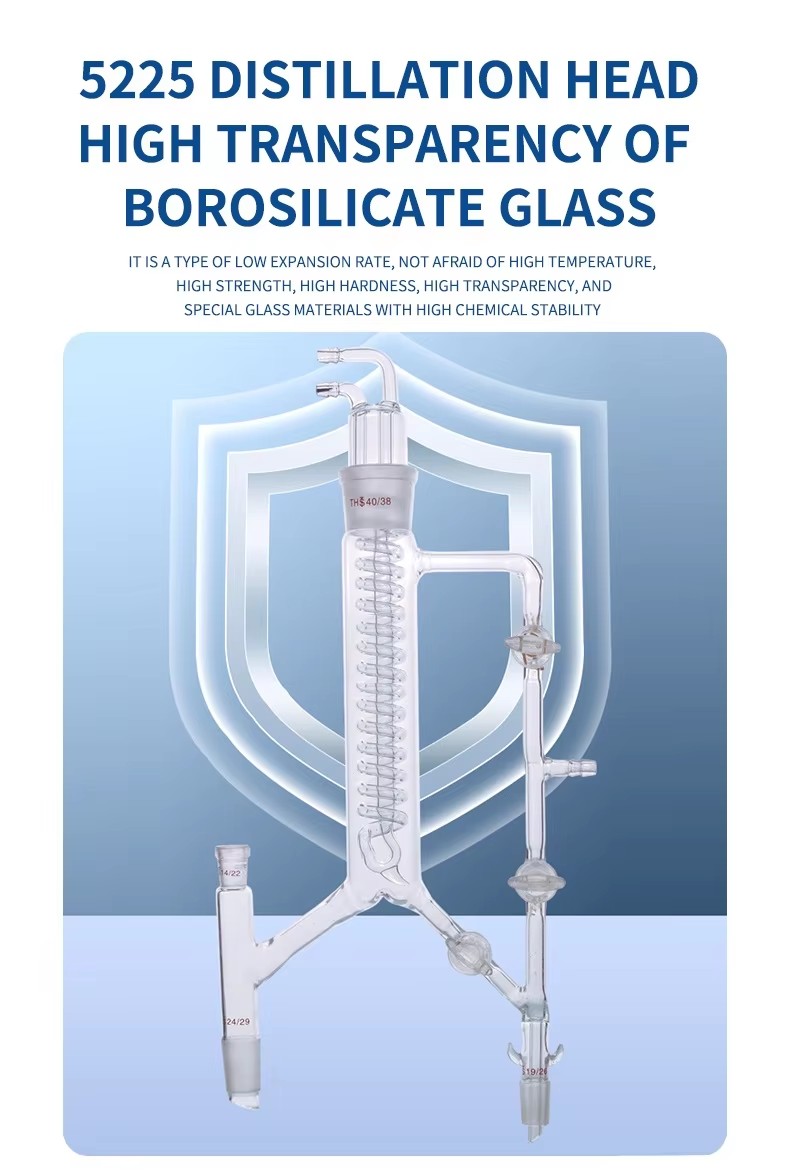

7	Precision distillation head	Supporting with equipment	1pcs	Electromagnet automatically controls the return ratio containing a serpentine tube condenser, steam inlet, gas phase temperature measuring port on top of tower and discharging valve
8	Distillate receiver	2000ml	1pcs	Fractional distillate receiver
9	Secondary condenser	D30*L400mm	1pcs	Optional
10	Glass valve	24#	1pcs	Replace the receiving bottle under vacuum state

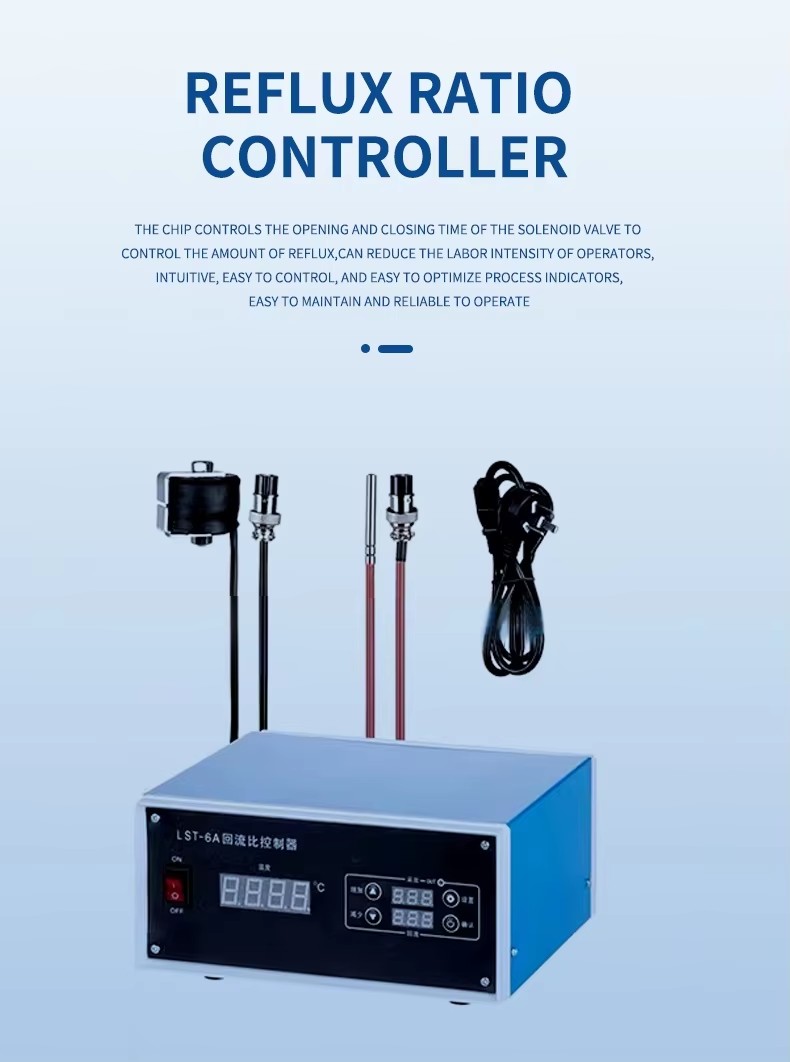

11	The return ratio controller	RFJL-2	1pcs	Contains power lines
12	Filler		1pcs	Glass spring packing
13	Electromagnetic iron	18V	1pcs	Used to control the backflow and extraction
14	Heating device	2000ml	1set	ZNCL-TS 2L magnetic stirring heating mantle
15	Install bracket		1set	Stainless steel frame
16	Instrumentation clip		Several	Including universal clips, cross clips
17	Vacuum tube		3m	Vacuum pipe connection
18	Vacuum silicone ester		1 Box	Vacuum seal
