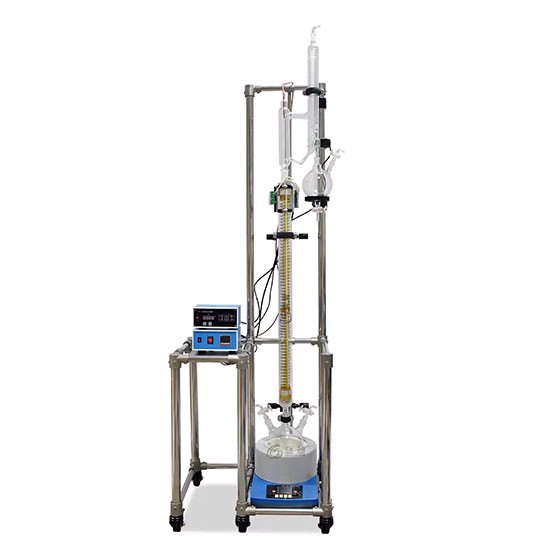

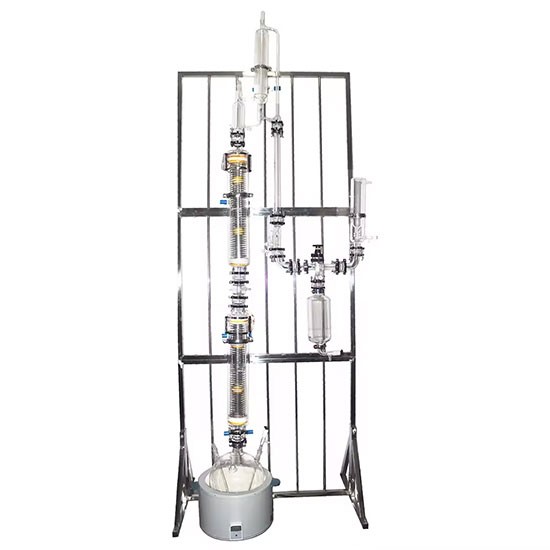

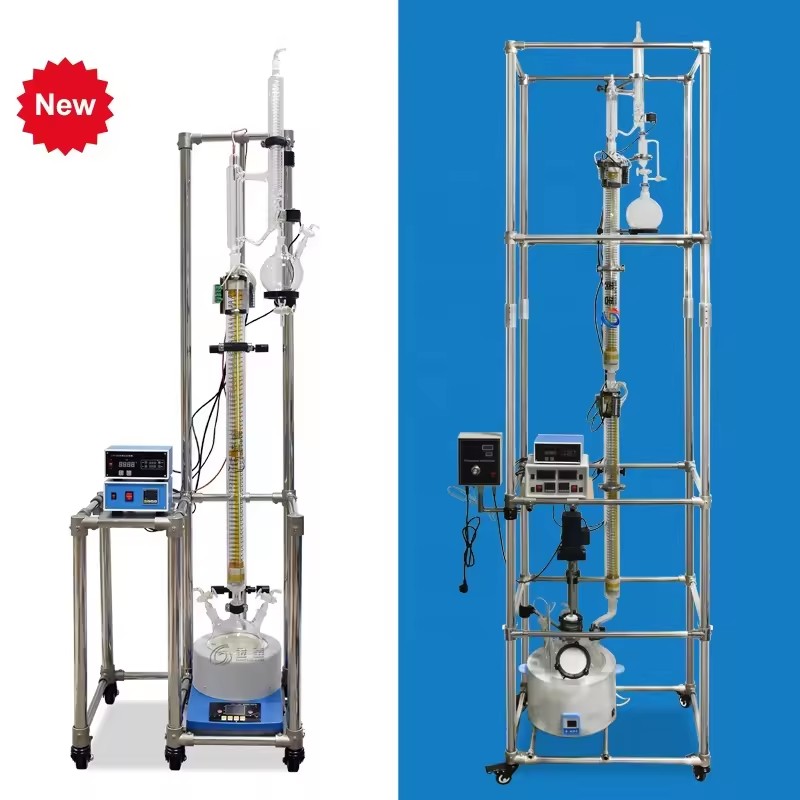

Laboratory distillation unit 1L 2L 3L 5L 10L 20L glass distillation unit packed distillation column for efficient separation

kettle 2000ML
column D30*L800mm
Heater controller 500W
Distillation head Reflux ratio distillation head
Application1 Distillation of petroleum distillation alcohol

PRODUCT DETAIL

Fractionation involves extensive gas and liquid contact, enabling effective heat exchange multiple times. This process allows low boiling point components to be efficiently separated at the top of the column, while higher boiling point substances remain in the flask, facilitating the purification of various compounds based on their boiling points.

Ideal for separating and purifying organic mixtures in research, petrochemical applications, and the food industry, our fractionation equipment is perfect for distilling petroleum, alcohol, ether, and volatile oils from traditional Chinese medicine. This method offers high separation efficiency and straightforward operation, making it a valuable addition to any laboratory setup.

glass distillation.jpg

No.	Name	Specification	Quantity	Describe
1	The distillation kettle	2000ml	1pcs	Four port evaporation flask / tower joints, temperature measuring port, feeding port and spare port
2	Thermowell		1pcs	Evaporation flask temperature test
3	Glass valve	24#	2pcs	Feeding liquid
5	Precision distillation column	D30×L800mm	1pcs	The upper and lower ports are 24 # standard grinding ports (also made as required) built-in electric heating wire
6	Heater controller		1pcs	The matching distillation column uses a controller to the temperature
7	Precision distillation head	Supporting with equipment	1pcs	Electromagnet automatically controls the return ratio containing a serpentine tube condenser, steam inlet, gas phase temperature measuring port on top of tower and discharging valve

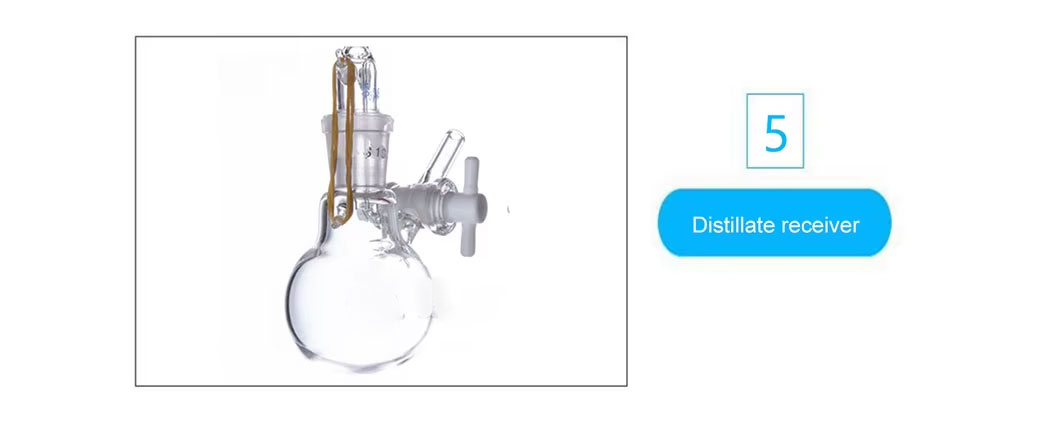

8	Distillate receiver	2000ml	1pcs	Fractional distillate receiver
9	Secondary condenser	D30×L400mm	1pcs	Optional
10	Glass valve	24#	1pcs	Replace the receiving bottle under vacuum state

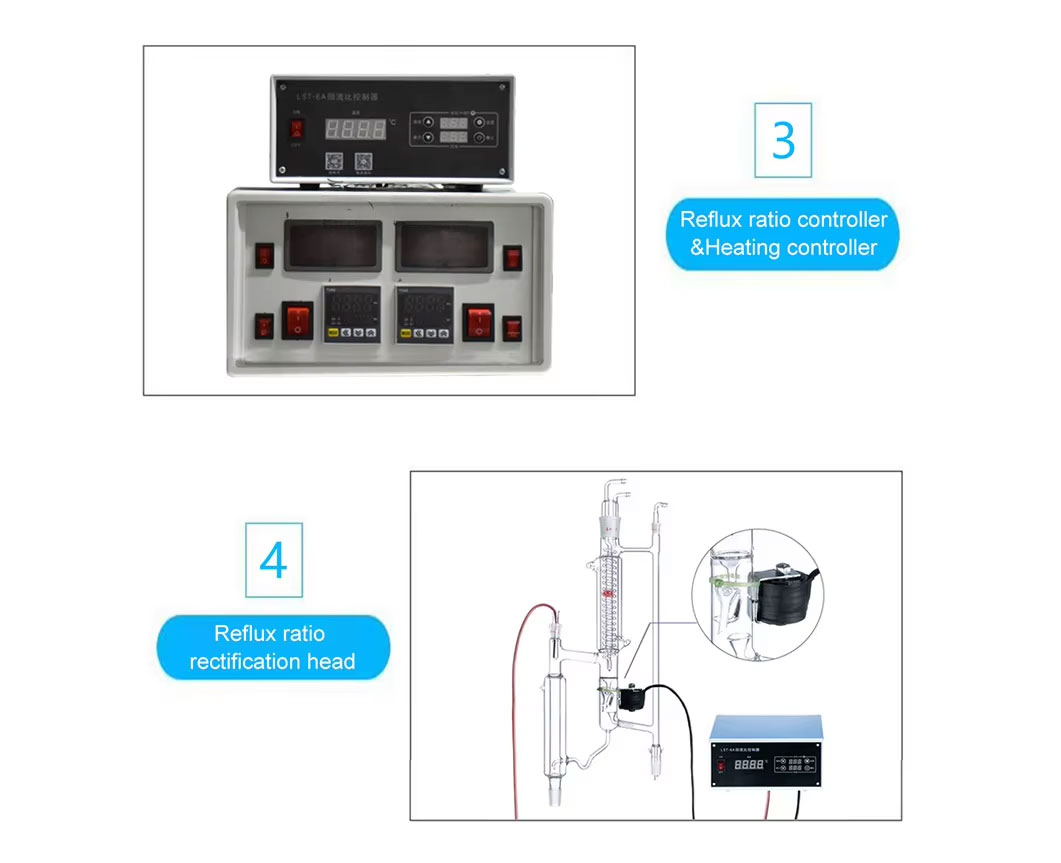

11	The return ratio controller	RFJL-2	1pcs	Contains power lines

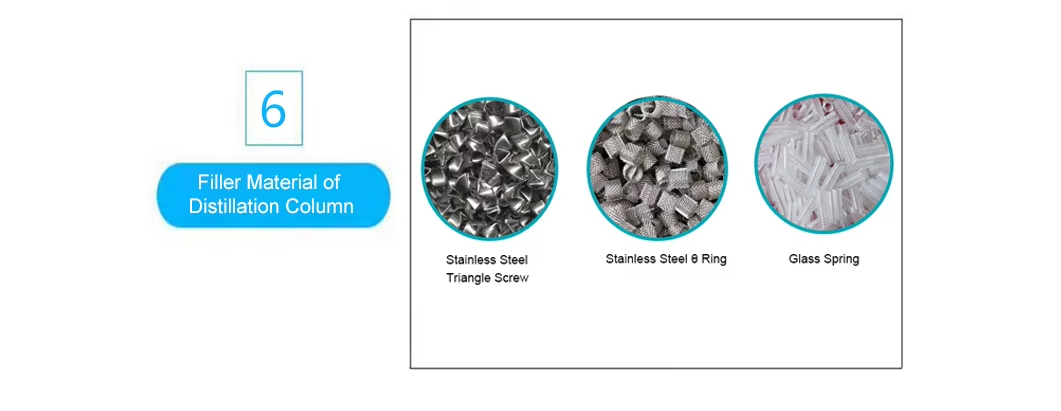

12	Filler		1pcs	Glass spring packing
13	Electromagnetic iron	18V	1pcs	Used to control the backflow and extraction

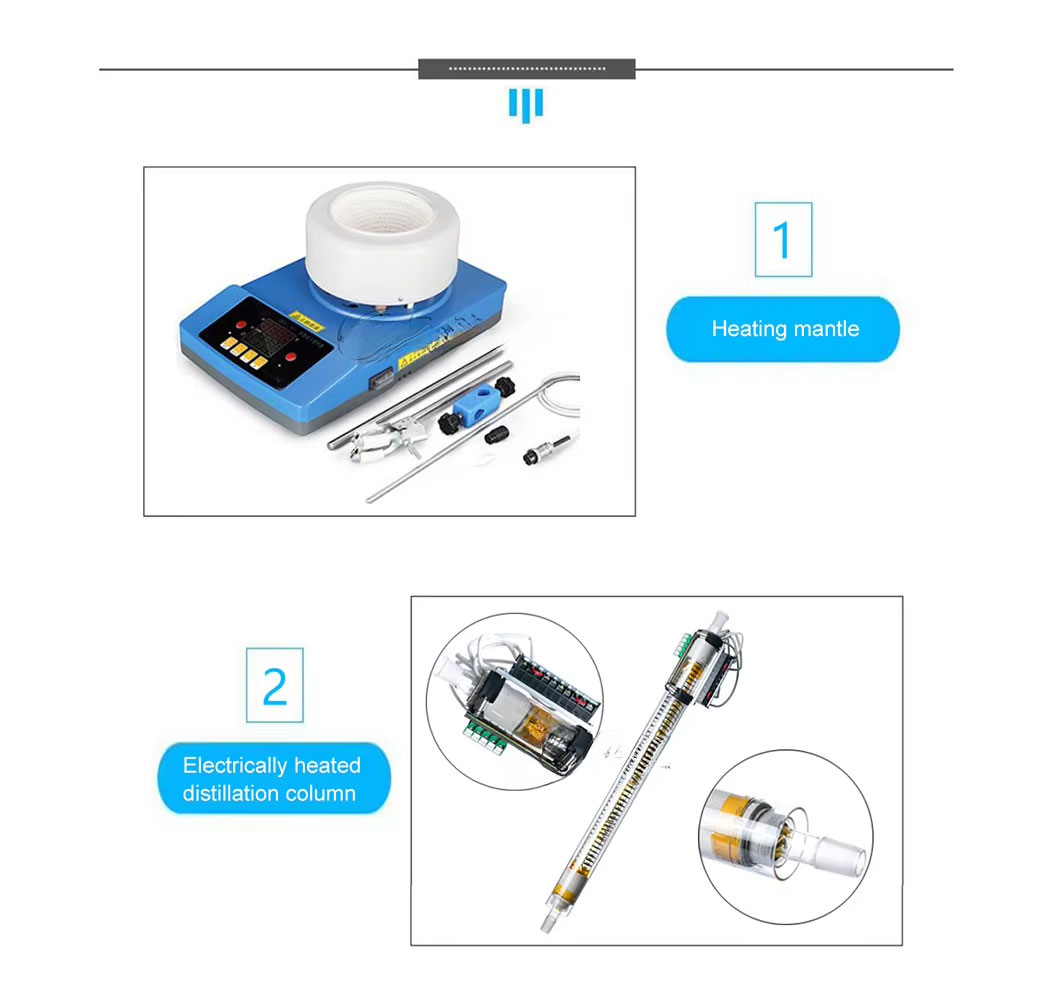

14	Heating device	2000ml	1set	ZNCL-TS 2L magnetic stirring heating mantle
15	Install bracket		1set	Stainless steel frame
16	Instrumentation clip		Several	Including universal clips, cross clips
17	Vacuum tube		3m	Vacuum pipe connection
18	Vacuum silicone ester		1 Box	Vacuum seal
