Hot Sale Lubricating Oil Solution Separator Dispenser for Laboratory Price

Power 120W
Dimension(L*W*H) 590*680*2100mm
Machine type FY-50
Function Extraction Oil
Reaction Capacity 50L
Motor Power 120W
Rotate speed 0~600Rpm
Seal PTFE
Glass Material High Borosilicate Glass 3.3
Discharge valve PTFE valve core

PRODUCT DETAIL

The extractor separator is designed for efficient separation and extraction of newly generated materials based on specific gravity after chemical or physical reactions. This advanced equipment ensures rapid and uniform reaction and collection under vacuum conditions, making it ideal for various laboratory applications. Versatile in function, the machine can serve as both a standalone separator and a conventional reactor, catering to specific operational needs. Perfect for research and development in chemical engineering and related fields, it enhances productivity and precision in material processing. Our product comes in different models and can meet the experimental requirements of different needs. You can contact us specifically

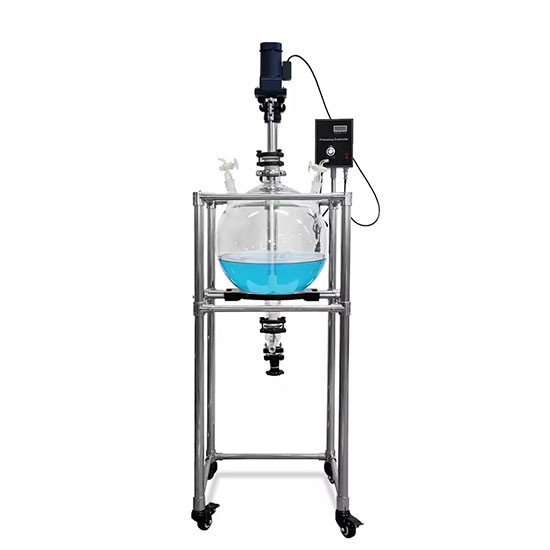

Extractor separator.jpg

Model	FY-50L
Reaction capacity	50L
Motor power	120W
Rotation speed	0-600rpm
Vacuum degree	0.098Mpa
Controller	Frequency Conversion Speed, LED, Temperature&Speed digital display
Seal mixting shaft	PTFE and special rubber compound seal ring seal
Glass material	High borosilicate glass, Temperature range: -120℃~300℃
Spherical vessel body φ280mm (Four port)	Stirrer port: φ80mm Flange
	Charging valve: 34# glass valve
	Pressure reducing valve: 34# glass valve
	Discharging valve: φ80mm Flange
Stirring blade	Φ14×900H(mm) * Blade spread diameter:190mm
Discharging valve	Inclined discharge port (pagoda connector): Φ34mm; Distance from ground: 350mm
Frame material	304 stainless steel with brake universal wheel
Power supply	220V/110V, 50/60Hz
Machine size	590×680×2100mm
