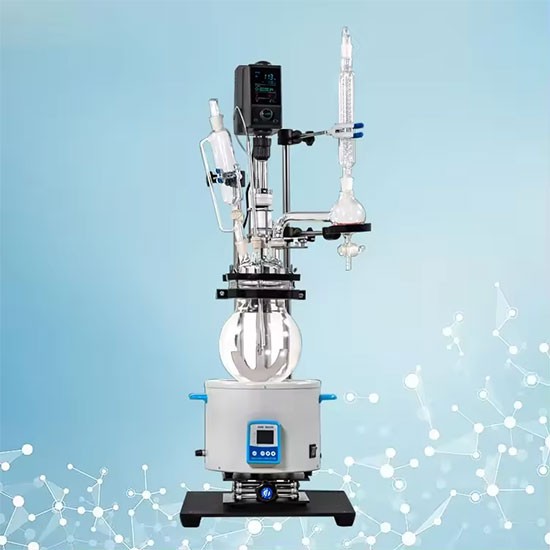

5L 1L Mini Single Layer Glass Reactor and Jacketed Glass Reactor for Lab Equipment

Dimension(L*W*H) customized
Capacity 1L
Heating method Water/Oil Bath
Glass Material Borosilicate Glass (3.3)
Rotational speed 50-2200rpm
Heating Temperature Max. 380 ℃
Heating Power 530W

PRODUCT DETAIL

Mini Single Layer Glass Reactor.jpg

Model	HS20-U
Capacity	20L

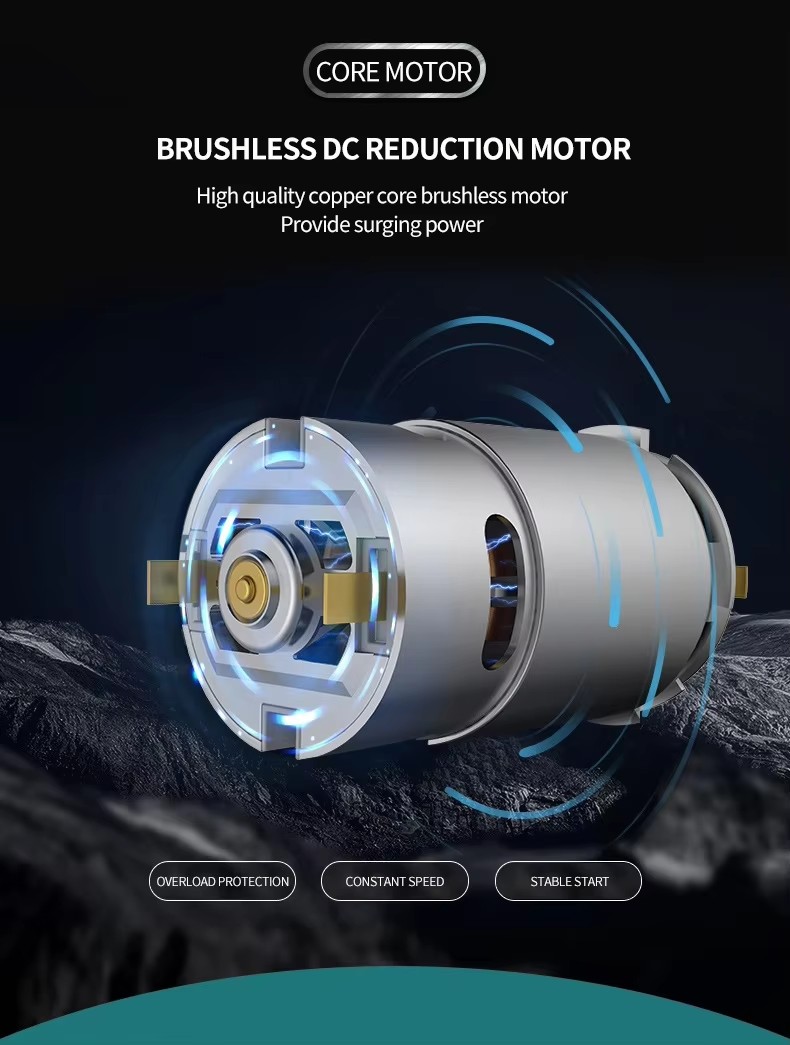

Motor power	160W
Voltage	100-240V 50/60HZ
Timing range	0-99H59MIN

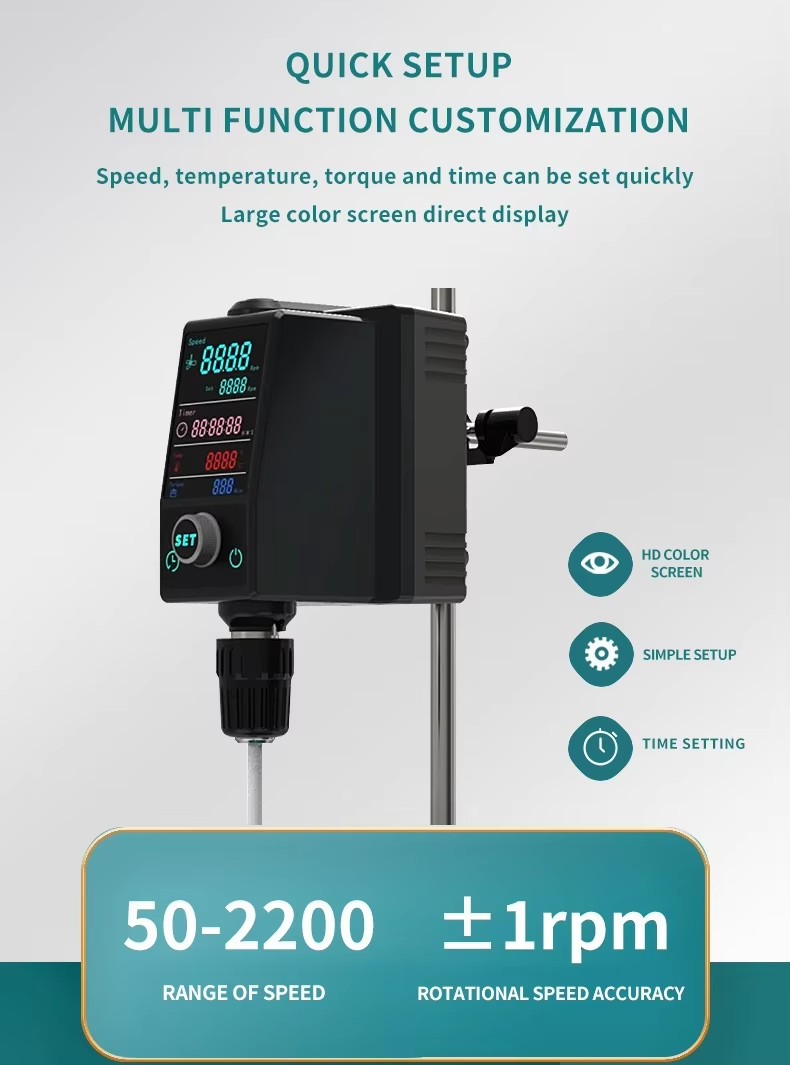

Speed range	50-2200 RPM ±5 RPM
Maximum torque	60N.CM
Overload protection	Automatic stop
Motor protection	Automatic stop

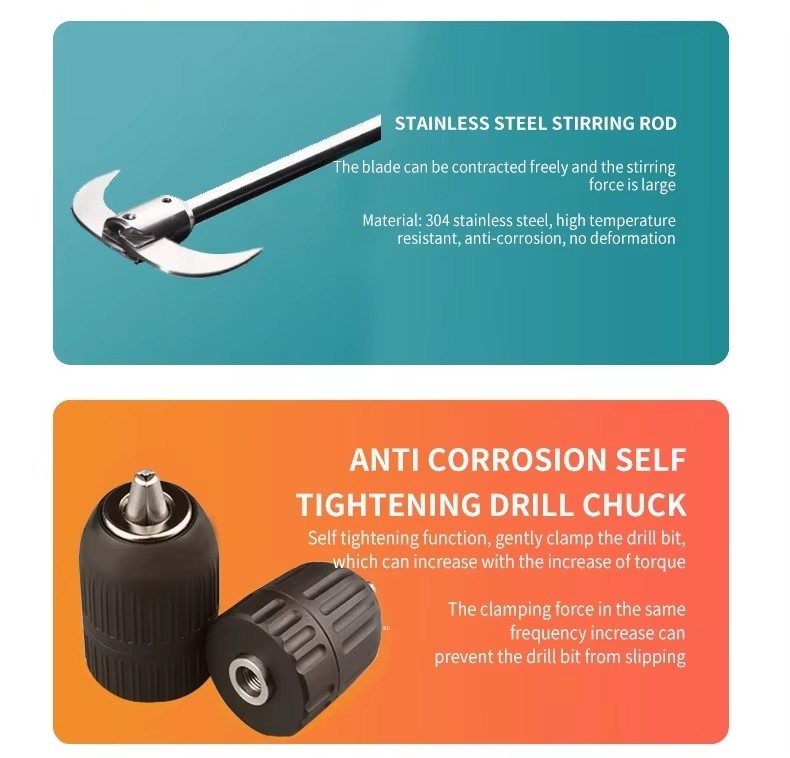

The stirring rod	φ 7mm long 400mm anchor type Teflon mixing rod
Baseboard	330 * 215mm, thickness 10mm, weight 5.5kg
Pole	φ 16 length 800mm, 316 material
Support rod	φ 16 length 230mm, 316 material

Mini Single Layer Glass Reactor.jpg

The glass reactor is primarily used for material synthesis, distillation, concentration, and other experimental processes. It is extensively utilized across various chemical industries, with significant applications in the fine chemical industry, petrochemical processes, and new material synthesis. This versatile equipment is essential for achieving precise and efficient results in both research and industrial applications.

Mini Single Layer Glass Reactor.jpg

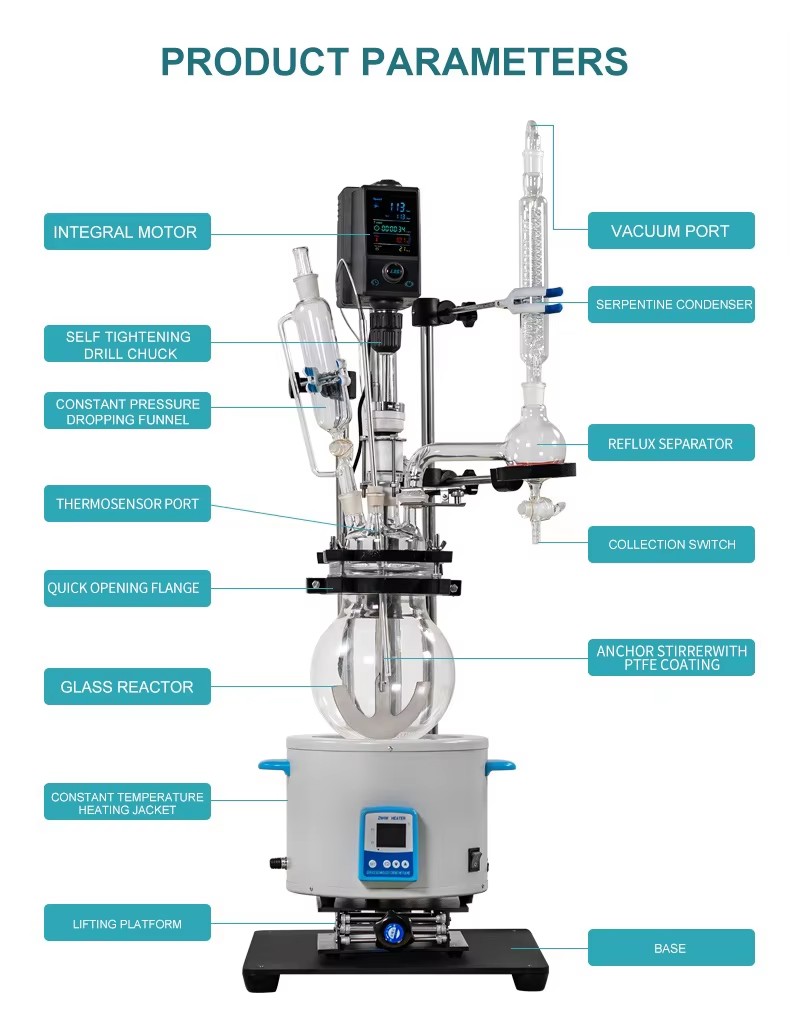

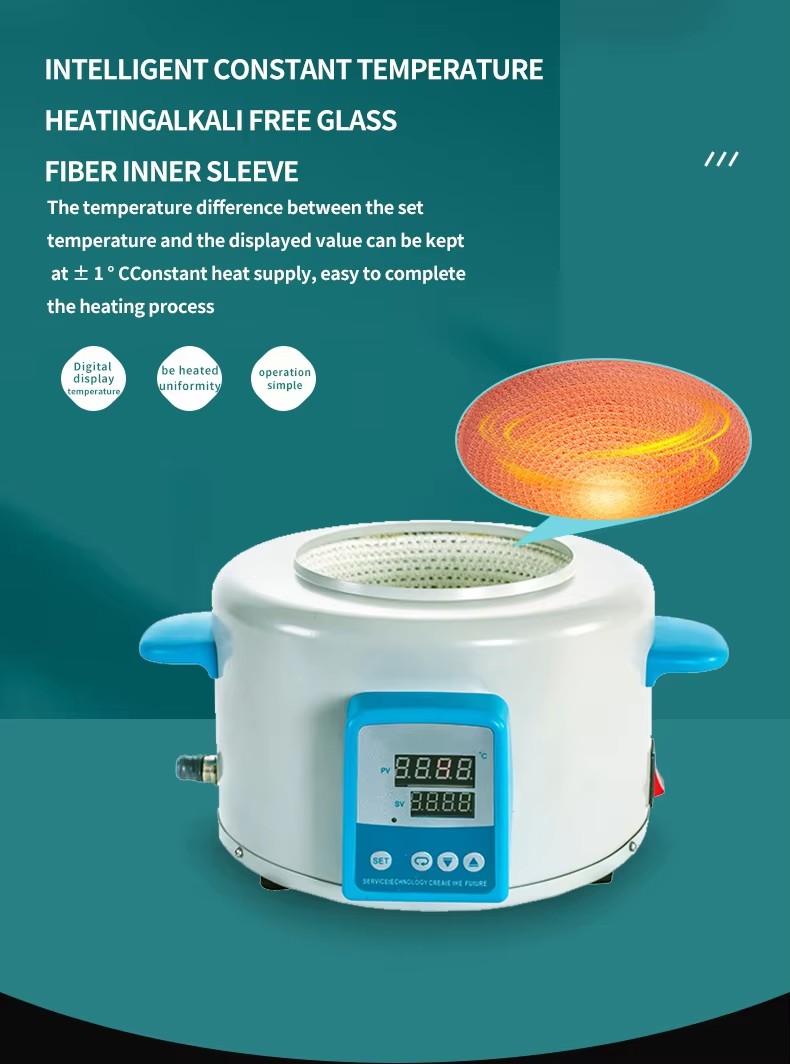

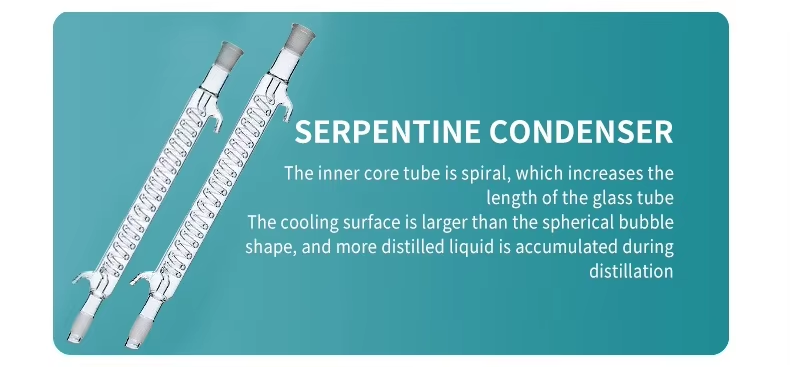

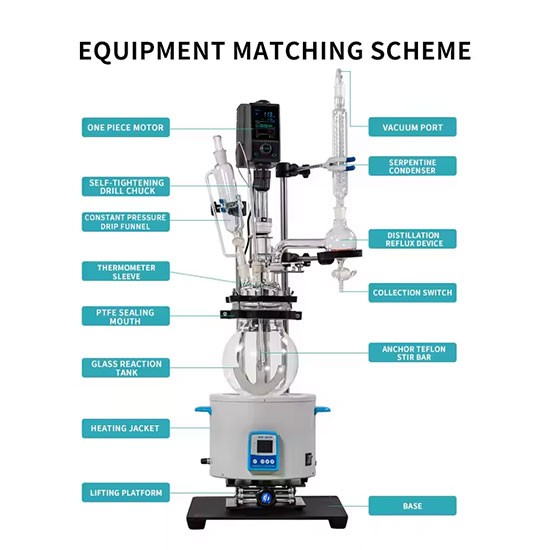

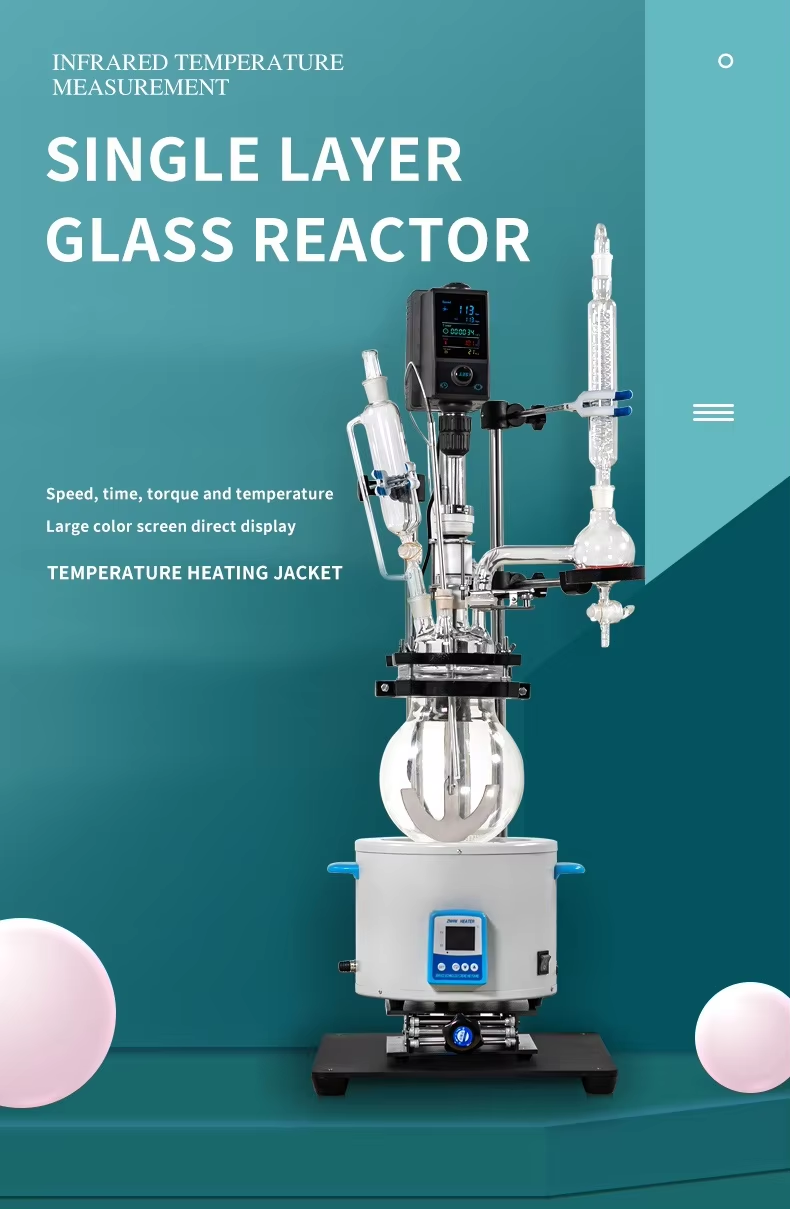

The single-layer glass reactor can be directly placed in a water/oil bath or heating mantle to meet the specific heating requirements of your experiment. The constant temperature environment is easily controlled by adjusting the controller. Stirring speed is adjustable via the control knob, and the reactor can be operated under vacuum conditions for vacuum reactions. Vapor rises to the condensing tube, where it is cooled and liquefied, facilitating various experimental processes such as reflux, distillation, and purification, so it will be used with CHILLER and VACUUM PUMP to use together.
