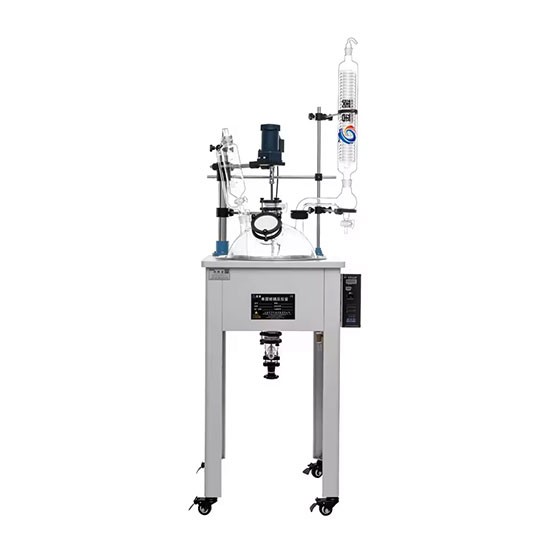

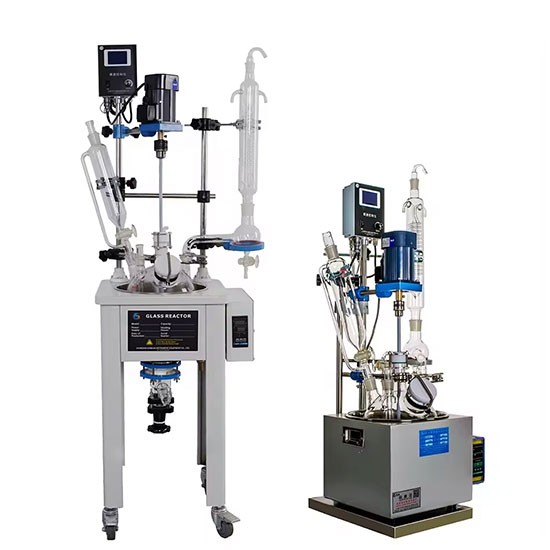

Industrial stirring single layer glass reactor lab chemical reactor vessel factory price glass reactor

  PRODUCT  DETAIL

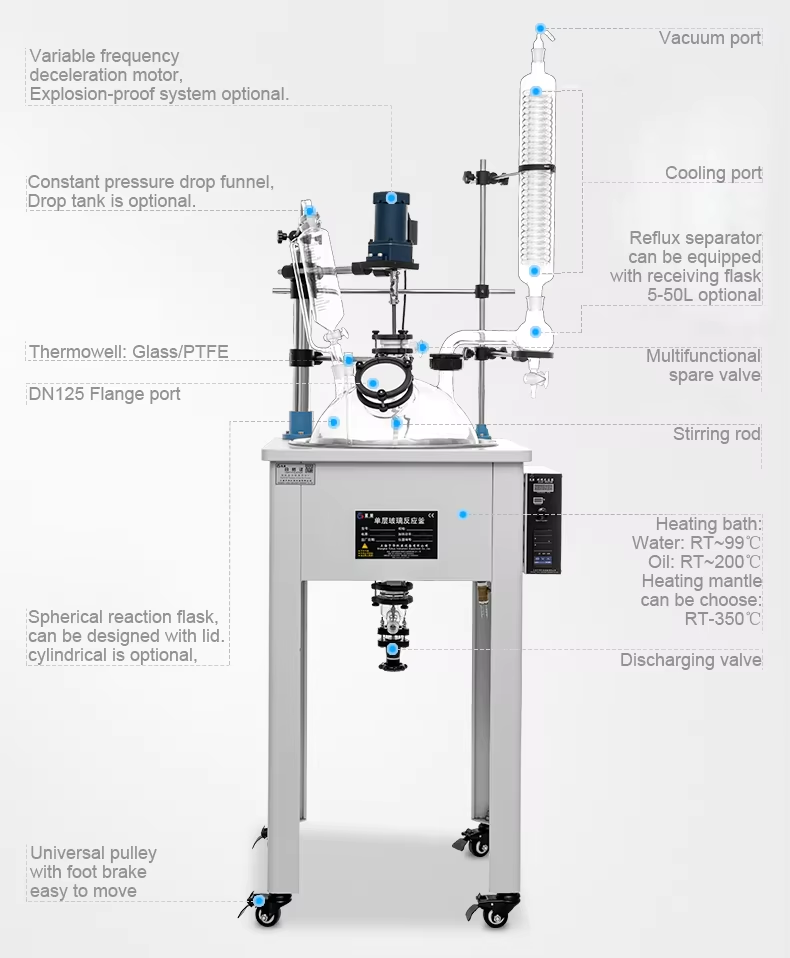

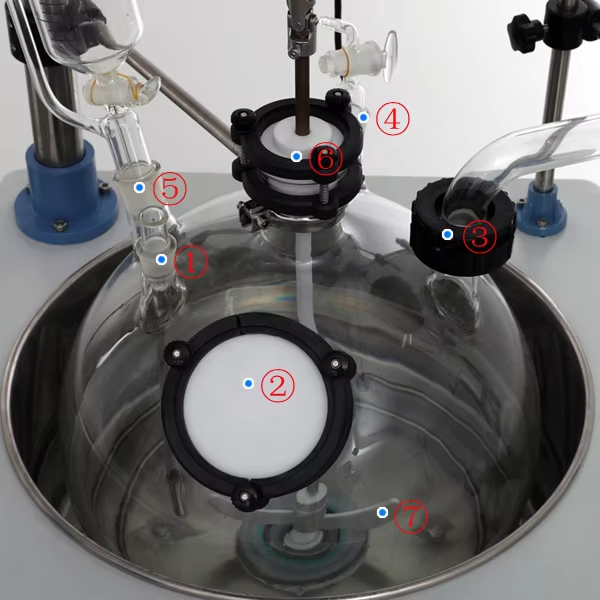

①Temperature tube port:24#, 350mm   ②Soild feeding port: DN125 Flange   ③Reflux sperator: 50#, Ball mill mouth, 500ml   ④Multi-function spare port: 34#, can be used for negative pressure liquid feeding, nitrogen filling, etc.   ⑤Constant pressure drop funnel port: 34#, 2000ml   ⑥Stirrer port: DN50 Flange, PTFE Shaft mean, can choose ceramic mechanical seal

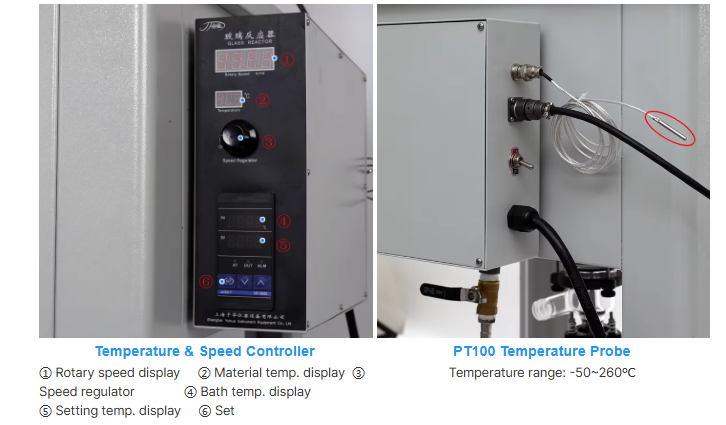

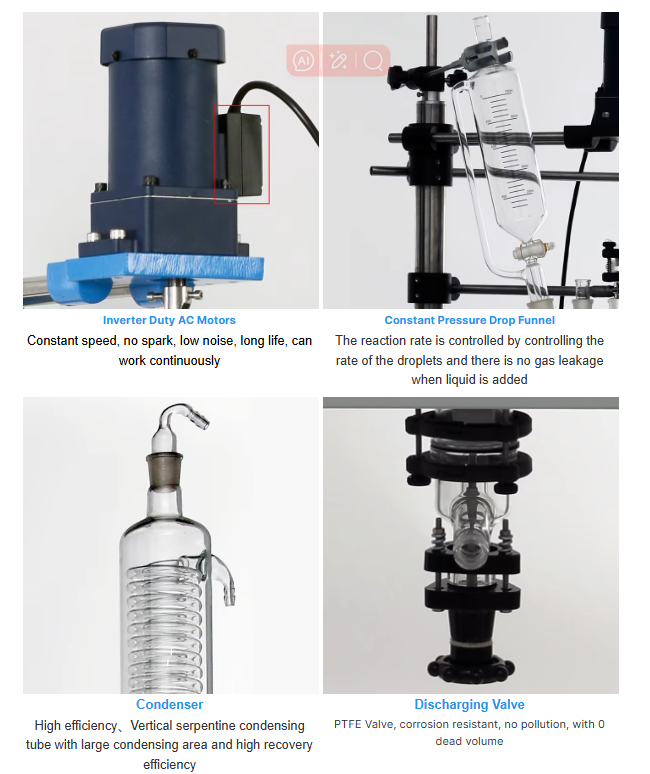

The single-layer glass reactor is placed in a water or oil bath, or a heating mantle, according to the experiment’s heating needs. The constant temperature is controlled by adjusting the controller, and the stirring speed can be fine-tuned via the control knob. The reactor can also be set to negative pressure for vacuum reactions. Vapor rises to the condenser, cools, and liquefies, enabling processes such as reflux, separation, purification, and crystallization, making it ideal for efficient chemical experiments.

It is widely used in chemical industries, especially in fine chemical industry, petrochemical process and new material synthesis,etc.

It will be used with CHILLER and VACUUM PUMP to use together.
