Heating power 3000W
Glass Material High Borosilicate Glass 3.3
Rotational speed 0-600rpm
Temp range RT~200℃
Sealing Type PTFE Vacuum Sealing
Digital Display speed and temperature display
Condenser Vertical high efficient
Application Chemical Testing Research
PRODUCT DETAIL
| Model | F-10L-WO | F-10L-HM |
|---|---|---|
| Glass material | G17 High borosilicate glass (-80-250℃) | G17 High borosilicate glass (-80-250℃) |
| Support material | 304 Stainless steel | 304 Stainless steel |
| Bath shell material | Cold-rolled plate is sprayed with plastic | Cold-rolled plate is sprayed with plastic |
| Reaction flask capacity | 10L | 10L |
| Port on reaction flask | 5+1+1 | 5+1+1 |

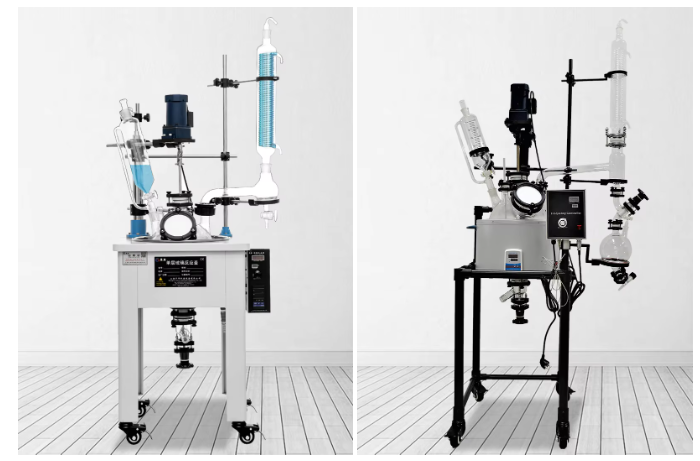

| Heating Type | Heating water/oil bath | Heating mantle |
| Heating power | 200W; 220V/50Hz | 1100W; 220V/50Hz |
| Temperature range | RT~200℃, ±0.2℃ | RT~380℃, ±1℃ |
| Motor power | 120W ; 220V, 50/60Hz | 120W ; 220V, 50/60Hz |
| Rotary speed | 0-600pm | 0-600pm |

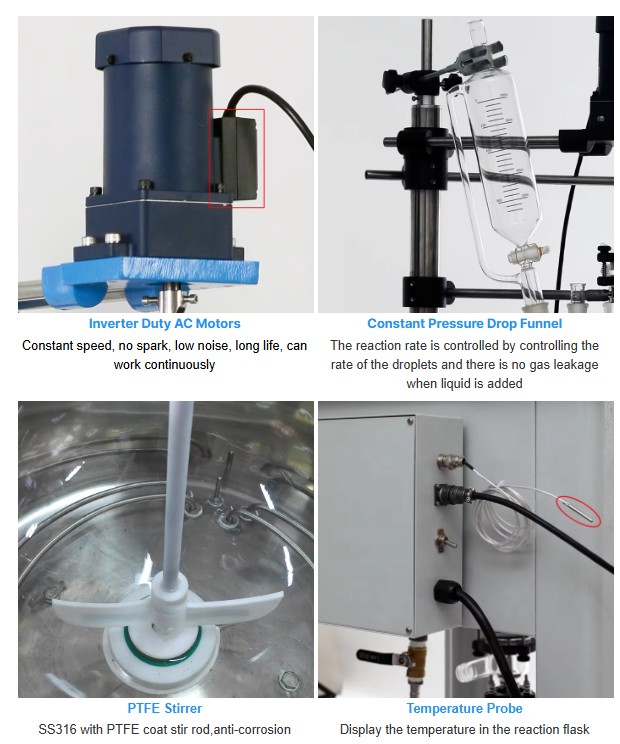

| PTFE seal shaft | Internal oil seal, external O-ring double seal | Internal oil seal, external O-ring double seal |
| Stirring rod fixtures | Universal joint | Universal joint |
| Stirring shaft diameter | 14mm | 14mm |
| Machine size | 640*560*1880mm | 600*600*1850mm |
| Vertical condenser | 40#, Spiral condenser | 40#, Spiral condenser |
| Temperature tube | 24#,200mm | 24#,200mm |
| Spare valve | 34#, Used for adding liquid, venting air or filling nitrogen | 34#, Used for adding liquid, venting air or filling nitrogen |
| Solid feeding port | DN125 Flange | DN125 Flange |
| Constant pressure drop funnel | 34#, 1000ml | 34#, 1000ml |
| Reflux separator | 35# Ball mill mouth | 35# Ball mill mouth |

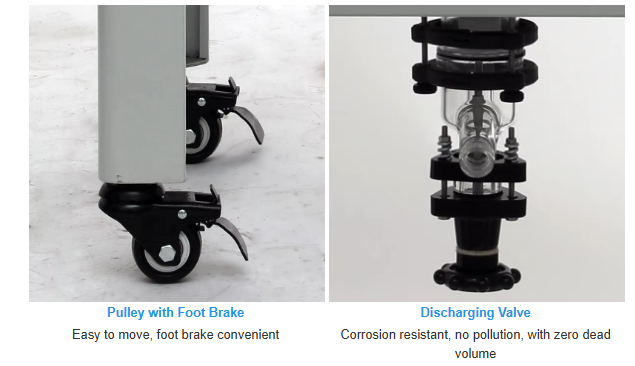

| Discharging valve | No liquid storage, no stirring dead Angle, PTFE core, anti-corrosion | No liquid storage, no stirring dead Angle, PTFE core, anti-corrosion |
| PTFE Stir blade | Anchor type | Anchor type |

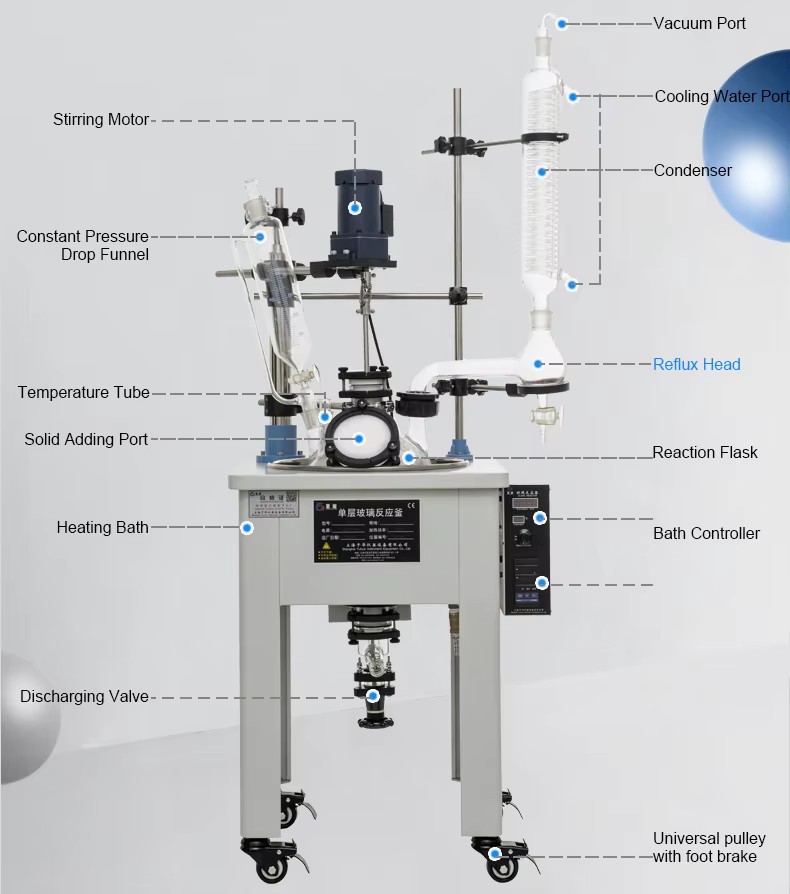

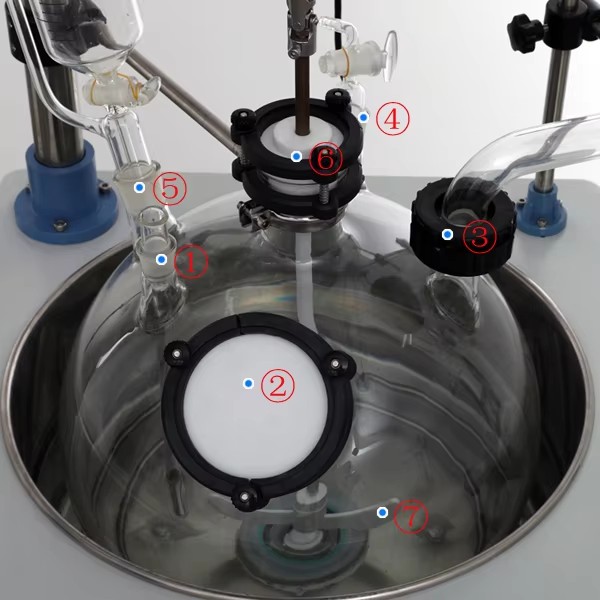

①Temperature tube port:24#, 180mm ②Soild feeding port: DN80 Flange ③Reflux sperator: 50#, Ball mill mouth, 500ml ④Multi-function spare port: 24#, can be used for negative pressure liquid feeding, nitrogen filling, etc. ⑤Constant pressure drop funnel port: 24#, 500ml ⑥Stirrer port: DN50 Flange, PTFE Shaft mean

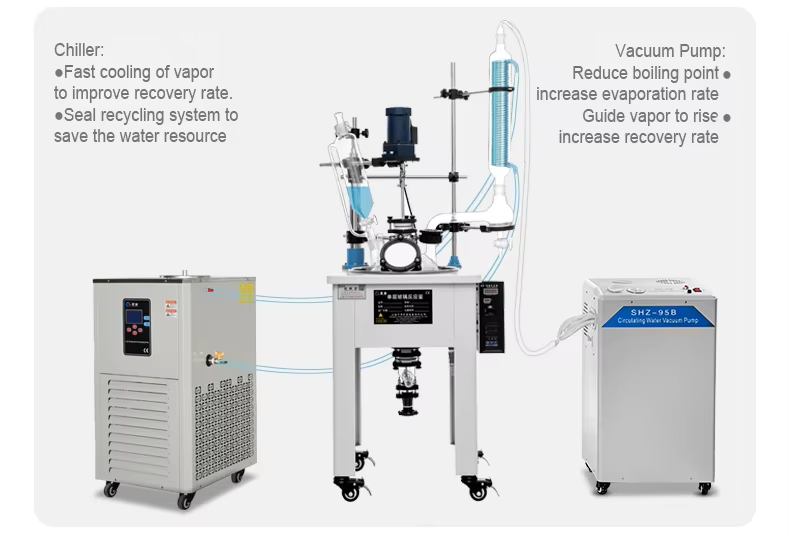

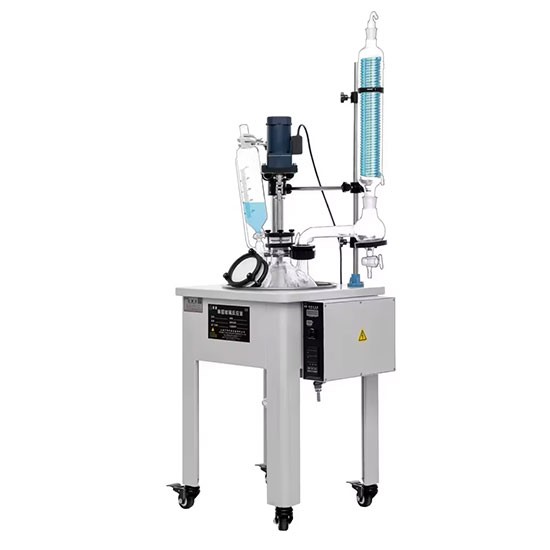

The single-layer glass reactor is designed for precise heating and temperature control. It can be directly placed in a water/oil bath or heating mantle to achieve the desired constant temperature environment by adjusting the controller. The stirring speed is adjustable via the control knob, and the reactor can be operated under vacuum conditions for processes such as reflux, separation, purification, and crystallization. The vapor rises to the condensing tube, where it is cooled and liquefied to facilitate the experiment.
Ideal for modern chemical samples, new material synthesis, and biochemical experiments, this reactor provides excellent performance for a variety of applications in both laboratory and industrial settings.
