Lab Liquid-Liquid Extraction Apparatus for Efficient Extraction Separation Technique

Power 120W
Dimension(L*W*H) 590*680*2100mm
Machine type FY-50
Function Extraction Oil
Reaction Capacity 50L
Motor Power 120W
Rotate speed 0~600Rpm
Seal PTFE
Glass Material High Borosilicate Glass 3.3
Discharge valve PTFE valve core

PRODUCT DETAIL

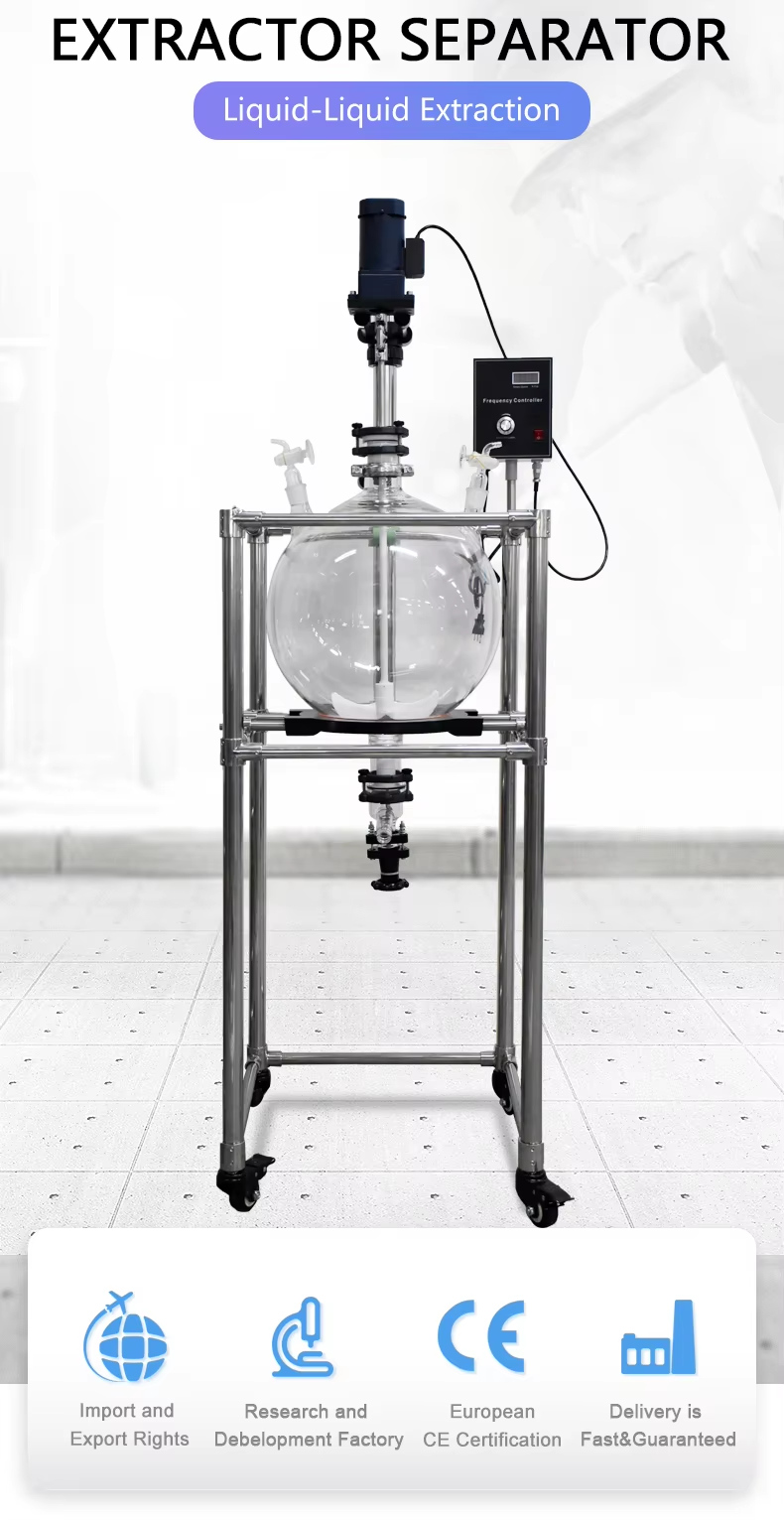

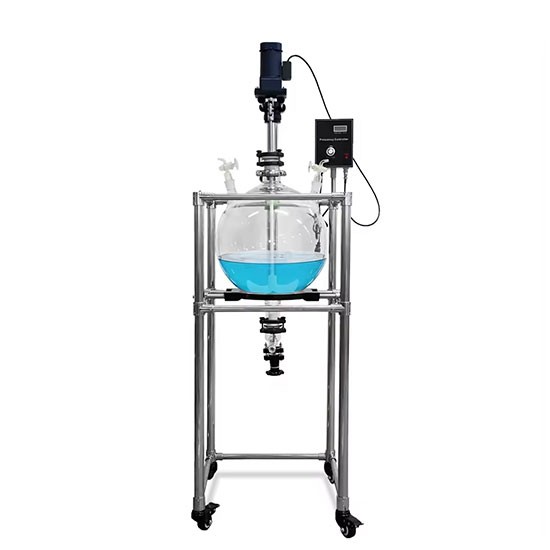

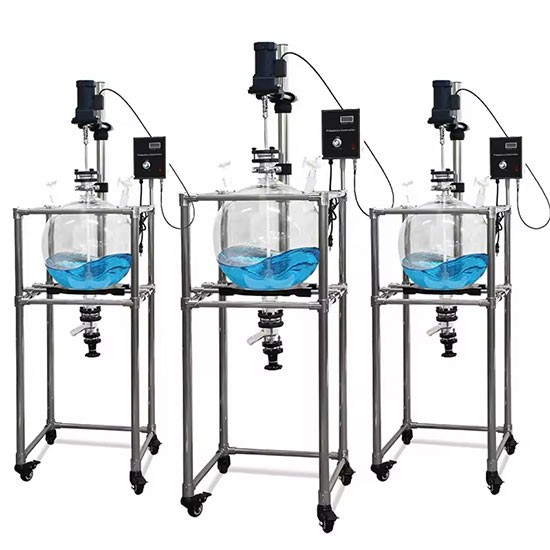

The extractor separator is designed for efficient separation and extraction of newly generated materials based on specific gravity after chemical or physical reactions of mixed materials. This versatile equipment delivers rapid and uniform reaction and collection effects under vacuum conditions, making it ideal for various laboratory applications. It can function as both a standalone separator and a conventional reactor, providing flexibility to meet your specific needs. Enhance your chemical processing with our high-quality extractor separator for improved efficiency and precision.

Extractor separator.jpg

Model	FY-50L
Reaction capacity	50L
Motor power	120W
Rotation speed	0-600rpm
Vacuum degree	0.098Mpa

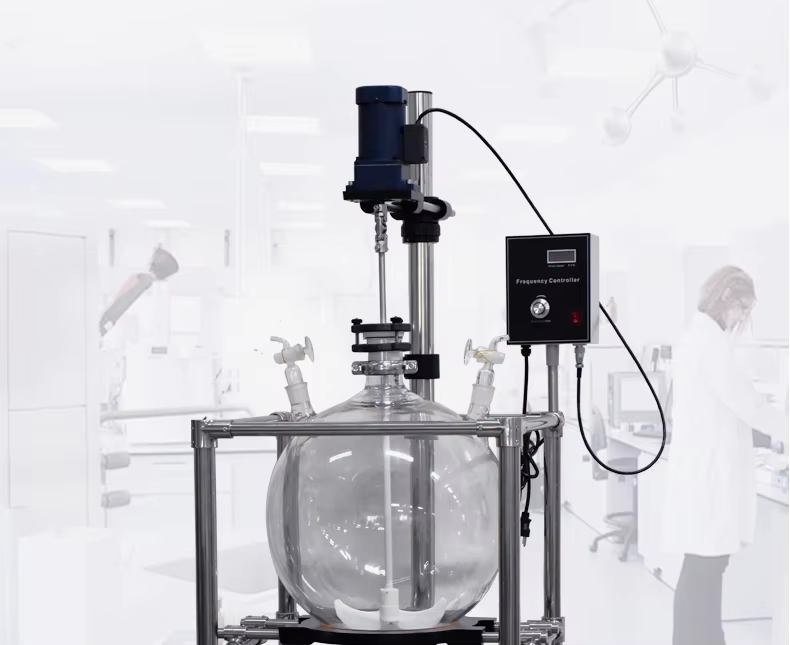

Controller	Frequency Conversion Speed, LED, Temperature&Speed digital display
Seal mixting shaft	PTFE and special rubber compound seal ring seal
Glass material	High borosilicate glass, Temperature range: -120℃~300℃

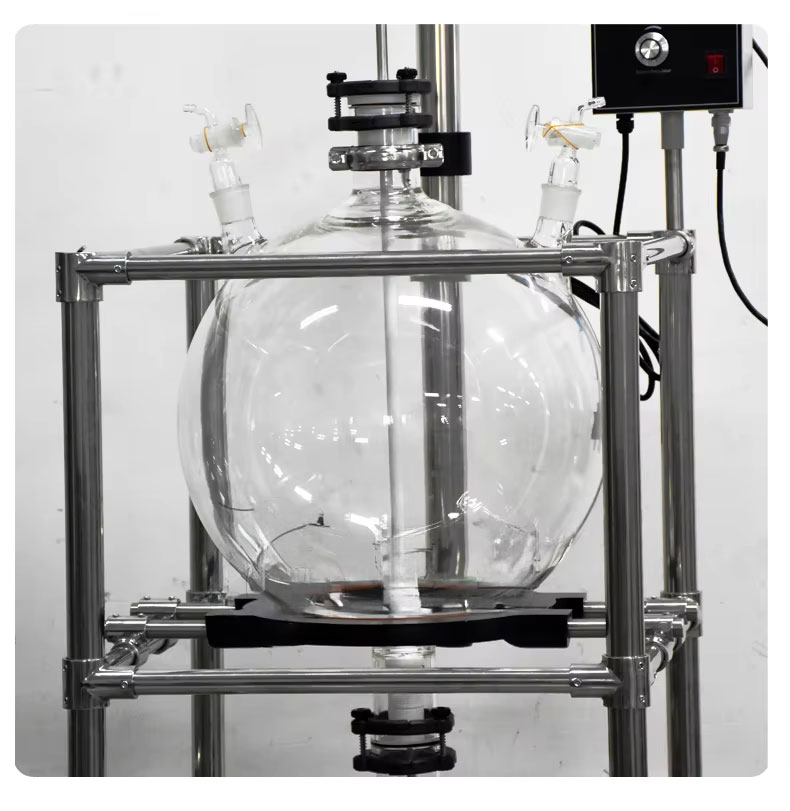

Spherical vessel body φ280mm (Four port)	Stirrer port: φ80mm Flange
	Charging valve: 34# glass valve
	Pressure reducing valve: 34# glass valve
	Discharging valve: φ80mm Flange

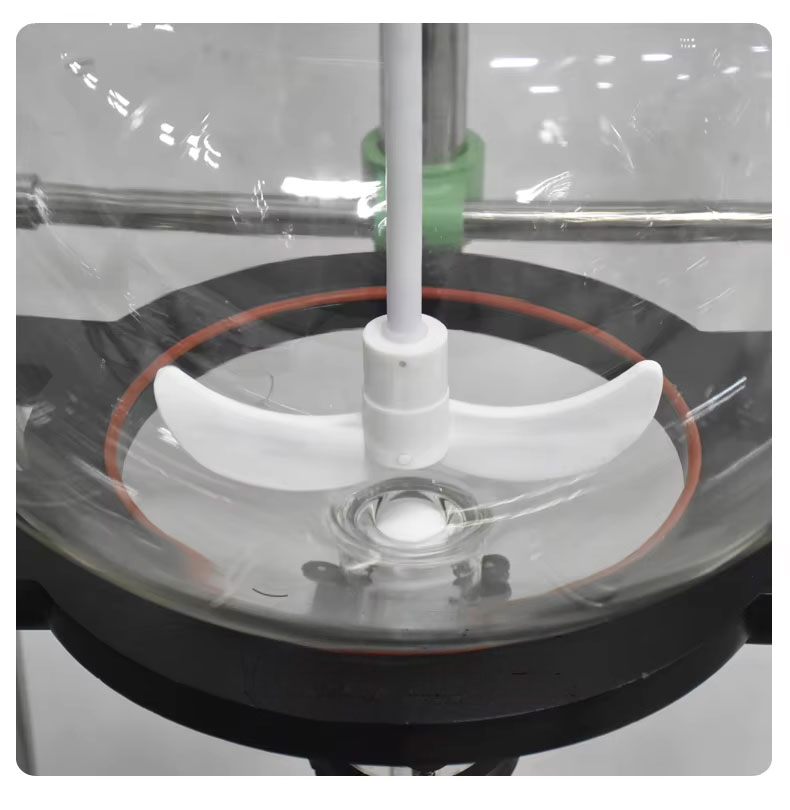

Stirring blade	Φ14×900H(mm) * Blade spread diameter:190mm

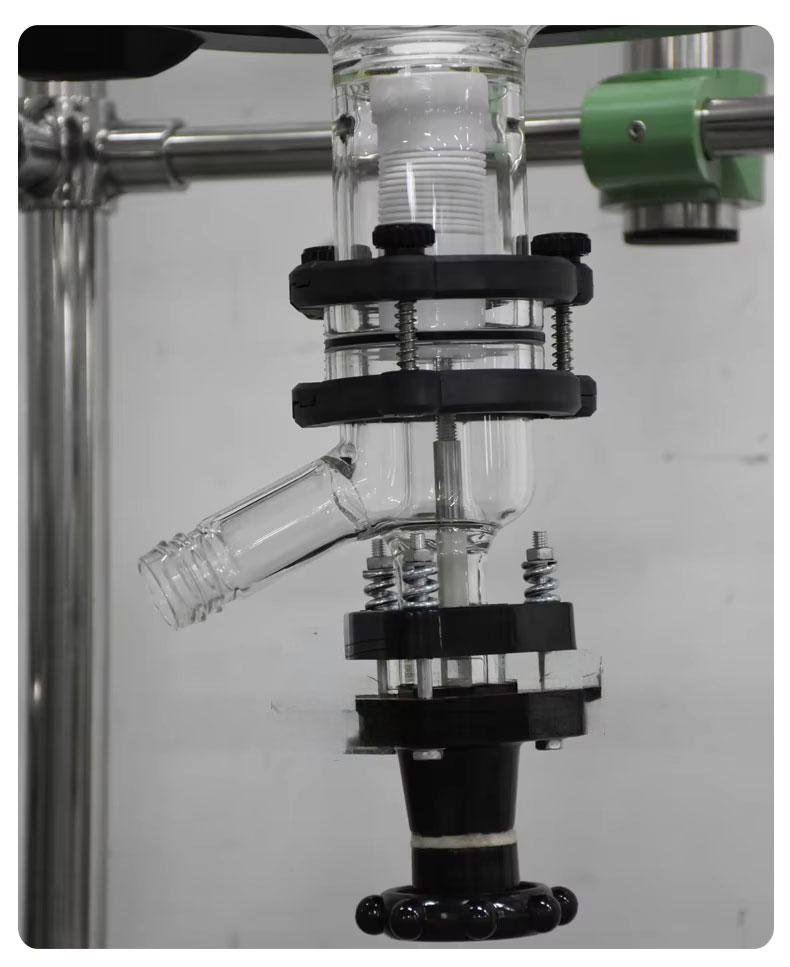

Discharging valve	Inclined discharge port (pagoda connector): Φ34mm; Distance from ground: 350mm
Frame material	304 stainless steel with brake universal wheel
Power supply	220V/110V, 50/60Hz
Machine size	590×680×2100mm
