Vortex series point motion mixer

Power Supply AC100 ~ 240V 50/60Hz
Power 12W
Speed Range 3500rpm

EMAIL

Overview

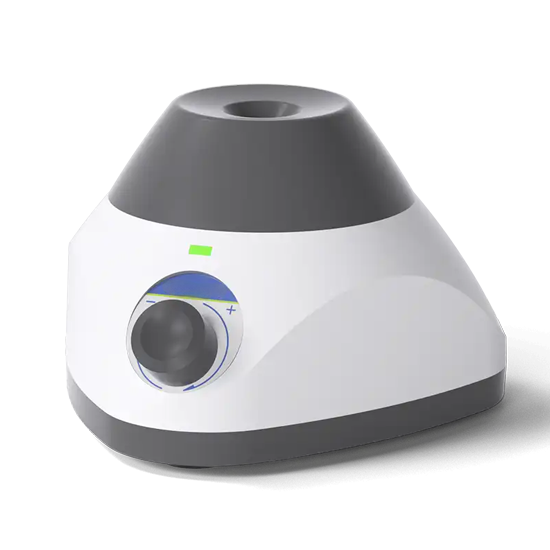

Vortex Series Point Motion Mixer – Compact, Efficient, and Thorough Mixing Solution

The Vortex Series Point Motion Mixer is designed for rapid and thorough mixing with a compact size, ideal for laboratory environments. Its vortex motion creates a swirling effect that efficiently mixes liquids, even those adhering to the walls of tubes. This mixer is perfect for general tube and centrifuge tube mixing and is particularly effective for difficult-to-dissolve substances, such as erythromycin and staining solutions.

Key Features:

  1. Powerful Brushless DC Motor: Delivers strong, reliable performance with zero maintenance requirements.

  2. High-Quality Imported Silicone Mixing Head: Excellent elasticity and durability for long-lasting use.

  3. Fast Vortex Activation: Samples can begin mixing within 2 seconds for quick results.

  4. User-Friendly Operation: One-touch start with stepless speed adjustment for easy, precise control.

  5. Enhanced Anti-Vibration Design: Equipped with silicone suction feet (LC-Vortex-P1E, LC-Vortex-P2E) or flexible gel pads (LC-Vortex-P1, LC-Vortex-P2) to minimize vibration and ensure stability during operation.

  6. Durable Zinc Alloy Base: The sturdy zinc alloy base (LC-Vortex-P1, LC-Vortex-P2) with a triangular structure enhances the instrument's stability during use.

SPECIFICATIONS

ModelLC-Vortex-P1ELC-Vortex-P2ELC-Vortex-P1LC-Vortex-P2
Power SupplyAC100 ~ 240V 50/60HzAC100 ~ 240V 50/60HzAC100 ~ 240V 50/60HzAC100 ~ 240V 50/60Hz
Power12W12W12W12W
Speed Range3500rpm500 ~ 3500rpm3500rpm500 ~ 3500rpm
Motor TypeBrushless DC MotorBrushless DC MotorBrushless DC MotorBrushless DC Motor
Vibration ModePress and RunPress and Run + Speed AdjustmentPress and RunPress and Run + Speed Adjustment
Amplitude4.5mm4.5mm4.5mm4.5mm
Maximum Capacity50ml50ml50ml50ml
Applicable Tube Diameter≤Φ30mm≤Φ30mm≤Φ30mm≤Φ30mm
Base MaterialPlastic Shell + Cold Steel WeightPlastic Shell + Cold Steel WeightZinc AlloyZinc Alloy
Foot MaterialSilicone Suction FeetSilicone Suction FeetGel PU FeetGel PU Feet
Net Weight0.35 kg0.35 kg0.54kg0.54kg
Product Dimensions110×110×75mm110×110×75mm110×110×75mm110×110×75mm
