Power Supply AC220V/50Hz
Power 90W
Display LED Digital Tube
Overview

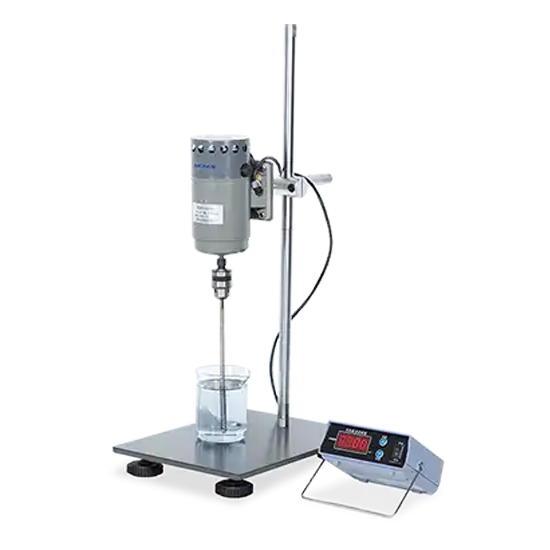

JB Series Digital Display Constant Speed Stirring Machine – Ideal for Laboratory and Industrial Mixing Applications
The JB Series Digital Display Constant Speed Stirring Machine consists of a stirring drive unit, frame, and other components. It is designed for the efficient mixing, emulsification, dispersion, and pasting of liquids and powders across various industries, including biomedicine, chemistry, cosmetics, health products, and food. This mixer is the ideal choice for scientific research, product development, quality control, and production applications in research institutions, universities, public health organizations, and manufacturing sectors.
LED Digital Display: Clearly shows the stirring speed for intuitive and easy monitoring.
AC Brushless Motor: Provides high torque, powerful output, and stable operation for reliable performance.
Constant Speed Control: Automatically adjusts torque to maintain a consistent stirring speed, even with changes in sample viscosity.
Open Frame Design: Accommodates a variety of containers, making it versatile for different applications.
Adjustable Stirring Rod Clamp: Easy to install and remove the stirring rod, ensuring convenience and flexibility.
SPECIFICATIONS
Model | JB-90SH | JB-120SH | JB-200SH | JB300-SH | JB500-SH | JB-1000SH |
---|---|---|---|---|---|---|
Power Supply | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
Power | 90W | 120W | 200W | 300W | 500W | 1000W |
Display | LED Digital Tube | LED Digital Tube | LED Digital Tube | LED Digital Tube | LED Digital Tube | LED Digital Tube |
Speed Range | 100-3000rpm | 100-3000rpm | 100-3000rpm | 100-3000rpm | 100-3000rpm | 100-3000rpm |
Speed Control Accuracy | 100rpm | 100rpm | 100rpm | 100rpm | 100rpm | 100rpm |
Maximum Mixing Capacity (H2O) | 3L | 5L | 8L | 15L | 20L | 30L |
Recommended Mixing Capacity (H2O) | 500ml | 800ml | 1500ml | 2500ml | 4000ml | 7000ml |
Lift Travel | 180mm | 195mm | 240mm | 240mm | 400mm | 400mm |
Motor Type | AC Brushed Motor | AC Brushed Motor | AC Brushed Motor | AC Brushed Motor | AC Brushed Motor | AC Brushed Motor |
Timer Range | / | / | / | / | / | / |
Net Weight | 12kg | 12kg | 15kg | 16kg | 21kg | 22kg |
Dimensions | 35*25*71cm | 35*25*71cm | 35*25*71cm | 41*29*73cm | 49*35*82cm | 49*35*82cm |
Base Type | Square Base | Square Base | Square Base | V-Shaped Base | V-Shaped Base | V-Shaped Base |
