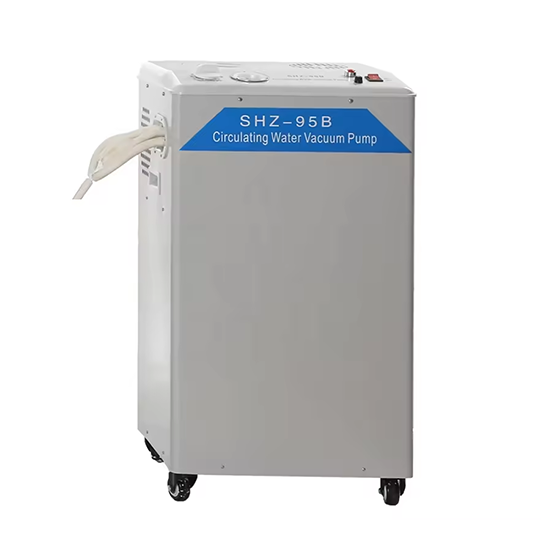

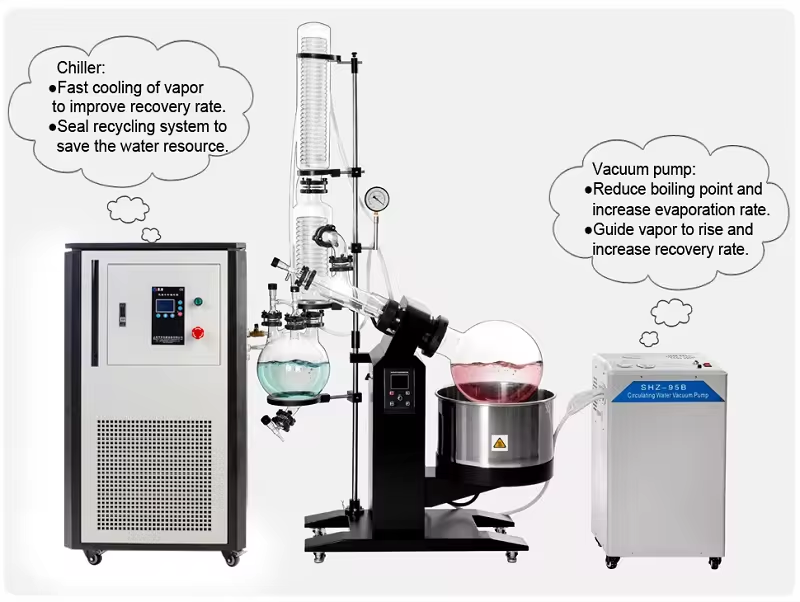

SHZ-95B Laboratory Circulating Water Vacuum Pump Rotary Evaporator Vacuum Pump

SHZ-95B Laboratory Circulating Water Vacuum Pump Rotary Evaporator Vacuum Pump

Application: Vacuum, Circulating water;
Pressure: Low Pressure;
Voltage: 220V, 50/60Hz

PRODUCT DETAIL

Vacuum Pump Overview

The Laboratory Circulating Water Vacuum Pump utilizes circulating water as its working fluid, employing advanced jet technology to create negative pressure efficiently. This innovative vacuum pump not only serves as a reliable vacuum suction device but also provides cooling circulating water to reactors, enhancing overall system performance.

This versatile pump is widely used in evaporation, distillation, crystallization, decompression sublimation, and various laboratory operations. It is the ideal instrument for universities, colleges, and research institutions focused on environmental protection, biochemistry, and the chemical industry. Designed for efficiency and reliability, our vacuum pump meets the demanding needs of modern scientific research.

Model		SHZ-95B Circulating Water Vacuum Pump
Motor Performance	Power	370 W
	Pumpage	90L/Min
	Lift	12m
	Body material	Anti-corrosion
	Voltage	220V,50/60HZ
Function 1	Sucking rate	10L/Min x5pcs
	Maximum vacuum	0.098Mpa
	Tank capacity	50L

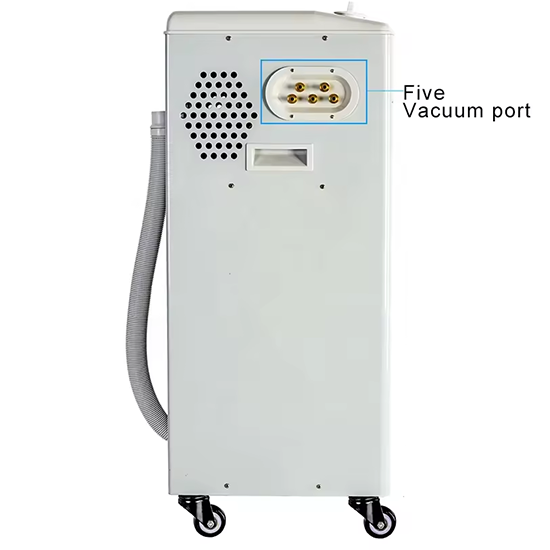

	Vacuum port no.	5Pcs

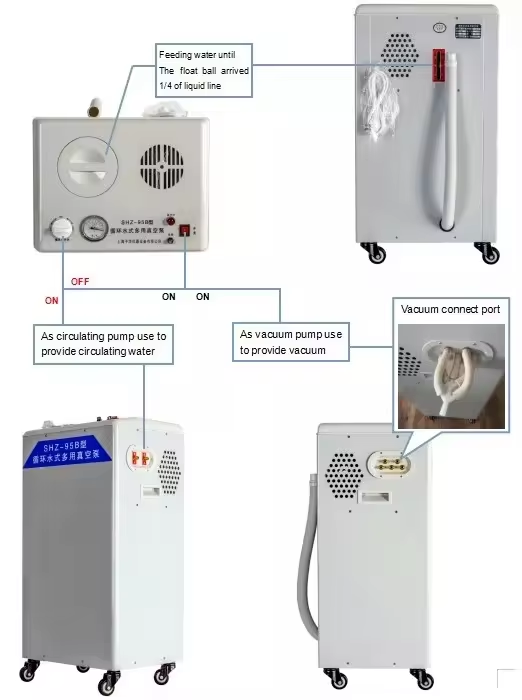

Function 2	As circulating pump	Circulating water temperature: 0~25℃
Safety Protection		The product includes check valve to prevent cross-flow
Shell Material		PVG with surface electrostatic spray
Dimensions		450×340×870mm
Net weight		37kg

The Laboratory Circulating Water Vacuum Pump utilizes circulating water as its working fluid, leveraging advanced jet technology to generate negative pressure efficiently. This innovative vacuum pump serves dual purposes: it operates as a reliable vacuum suction device and provides cooling circulating water to reactors, ensuring optimal temperature control during experiments.

This pump is widely employed in evaporation, distillation, crystallization, filtration, and decompression sublimation processes. It is the ideal instrument for colleges, universities, and research institutions focusing on environmental protection, biochemistry, and the chemical industry. Designed for reliability and efficiency, this vacuum pump is essential for modern scientific research applications.
