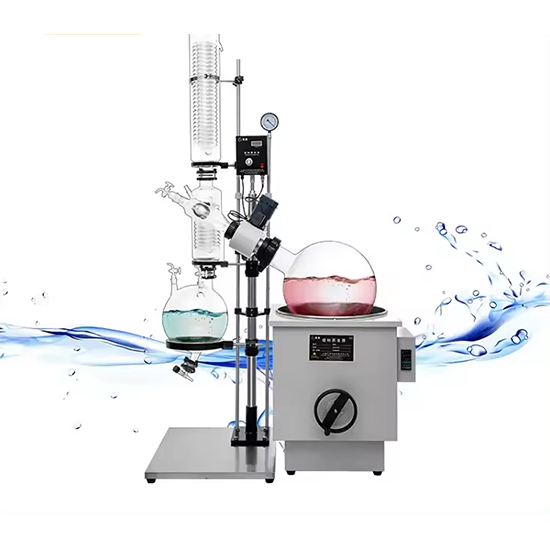

10L Laboratory Alcohol Distillation Rotary Evaporator with Vacuum Pump and Chiller

10L Laboratory Alcohol Distillation Rotary Evaporator with Vacuum Pump and Chiller

Applicable Industries：Petrochemical, Scientific Research, College Experiment；
Process：Vacuum Distillation；
Heating bath Temp:water:RT~99℃ / RT~200℃;
Rotation Speed:10~120 rpm

PRODUCT DETAIL

Lab Vacuum Pumps Supplier for Small Labs

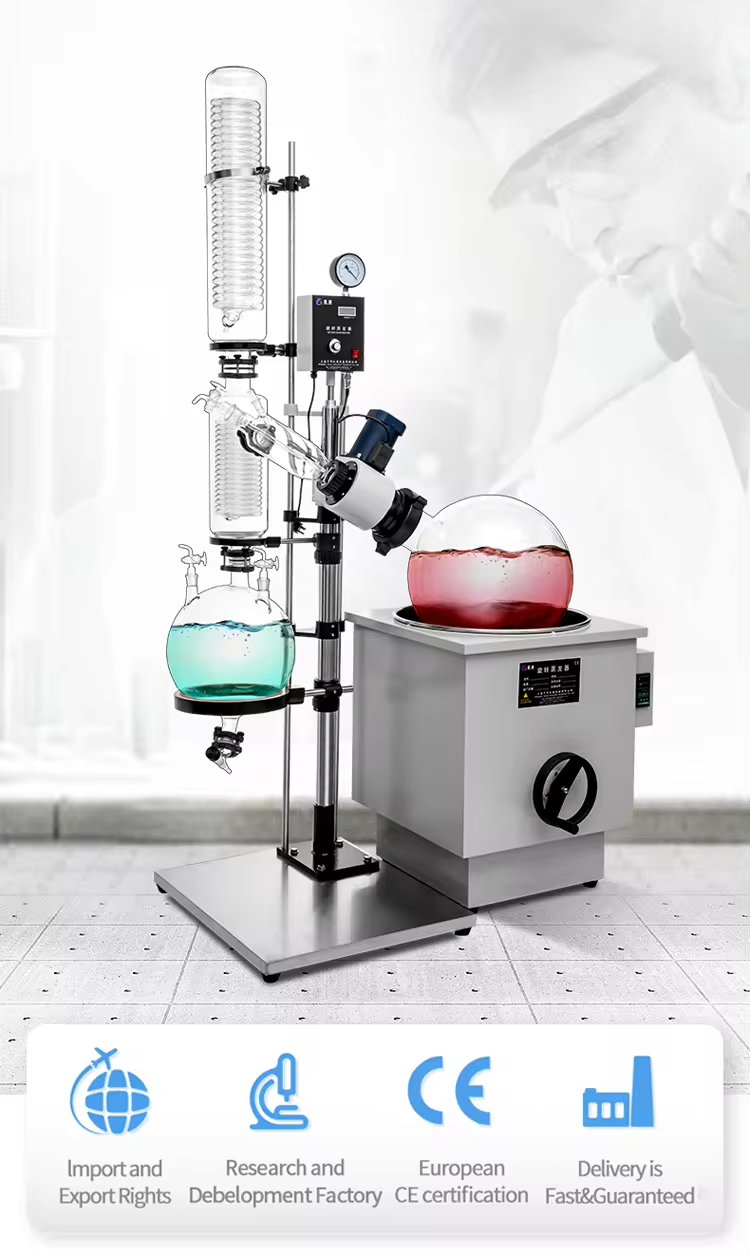

The RE-Series Rotary Evaporator is designed for small-scale tests, pilot-scale experiments, and production in biological, chemical, and food industries. This high-performance rotary evaporator features a large-capacity, wide-diameter evaporating flask that enhances efficiency. When placed in a heated water bath, the device enables simultaneous rotation and heating, allowing solutions to spread and evaporate quickly.

Ideal for a variety of applications, the rotary evaporator is perfect for:

Concentrating solutions
Recovering solvents
Separating chemicals
Vacuum drying of wet solids
Extracting essential oils
Removing solvents from samples

This versatile equipment is essential for laboratories seeking efficient distillation and solvent separation solutions.

Model	(EX) RE-1002 (E)	(EX) RE-2002 (E)	(EX) RE-3002 (E)	(EX) RE-5002 (E)
Electrical requirements	220V/240V, 50/60Hz		220V/240V/380V, 50/60Hz
Motor	180W (Explosion proof 180W optional)		250W (Explosion proof 370W optional)
Glass material	High borosilicate glass 3.3
Evaporating flask	10L (2.6 gallon)	20L (5.3 gallon)	30L (7.9 gallon)	50L (13.2gallon)
Maximum load	Not to exceed 60% of the flask’s capacity
Rotation speed	10-120rpm, It can be self-tuning		10-90rpm, It can be self-tuning
Heating power	2KW	3KW	6KW/9KW	6KW/9KW
Evaporating speed	H2O≥3.2L/h, Alcohol≥6.5L/h	H2O≥5L/h, Alcohol≥11L/h	H2O≥7.5L/h, Alcohol≥17L/h	H2O≥9L/h, Alcohol≥19L/h
Receiving flask	5L (1.32gallon)	10L (2.6 gallon)	20L (5.3 gallon)	20L (5.3 gallon)
Condenser	Main Condenser+Assistant Condenser
Heating temp. range	Ambient to 99℃ (210℉)
Bath type	Manual lift with drain port
Ultimate vacuum level	<3torrs （PTFE + Viton gaskets seal）
Unit dimensions	11006001730mm	12006501950mm	12207302000mm	12507502100mm

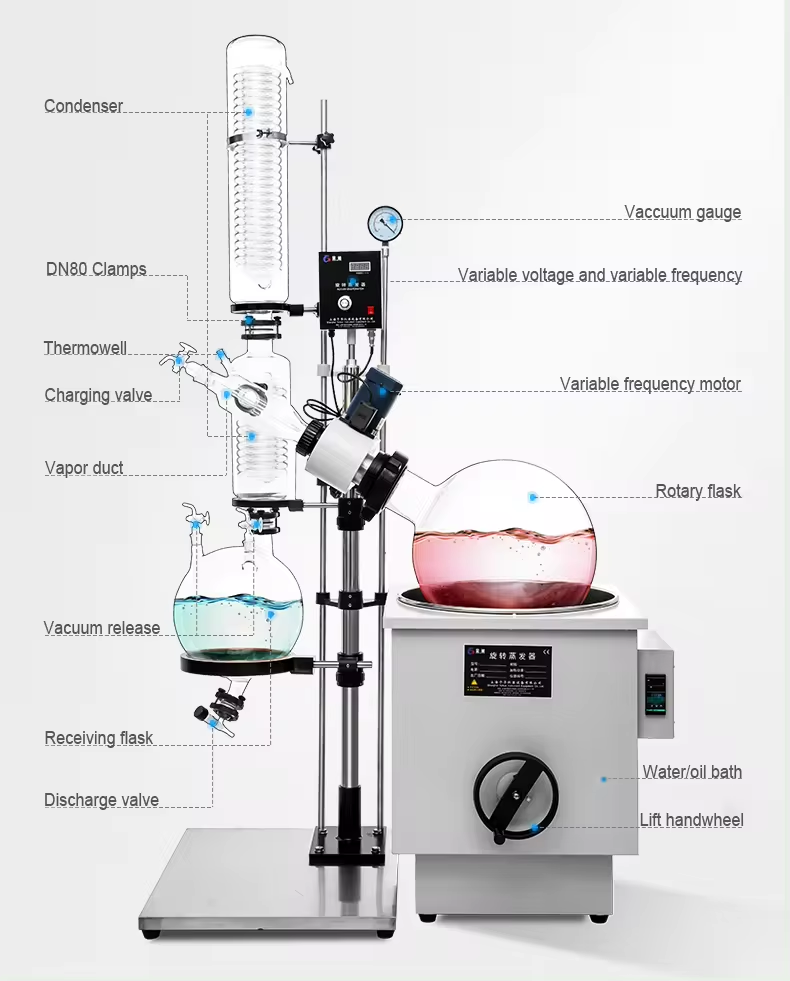

Product Advantages:

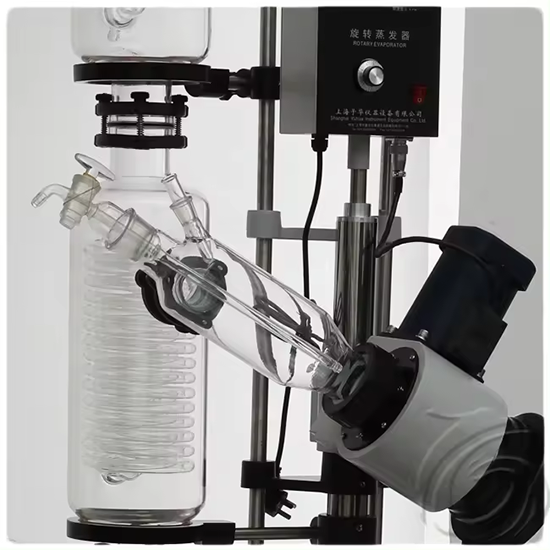

Vertical Double Condenser: The vertical double condensing tube offers a large condensing area, resulting in high recovery efficiency for optimal solvent distillation.
Receiving Flask: Features two vacuum valves that enable rapid pressure relief and discharge without compromising overall vacuum integrity.
Charging Valve: Connects the PTFE tube to the rotating bottle, ensuring a clean and pollution-free process while minimizing additive loss.
Discharging Valve: Equipped with a PTFE discharging valve, which boasts high corrosion resistance and prevents contamination.
Controller: Utilizes a frequency conversion governor with an adjustable knob for speed control and a digital speed display for precision monitoring.
Motor: Incorporates a variable speed reduction motor designed for constant speed, spark-free operation, low noise, and longevity for continuous use.

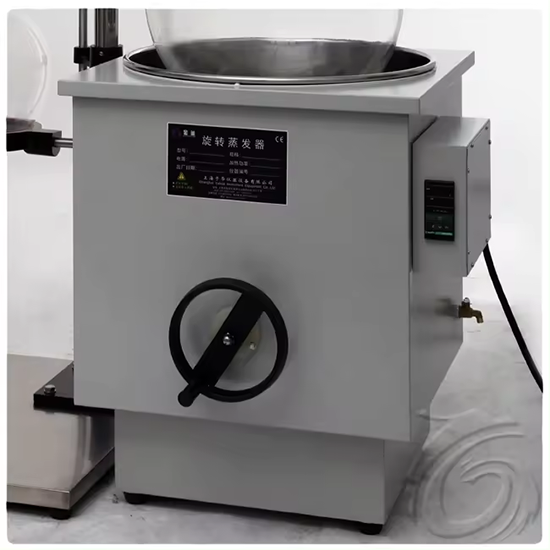

Water/Oil Bath: Features a water/oil heating bath with a handwheel for easy height adjustment and a drainage system for convenient maintenance.
Bottle Holder/Rack: The multifunctional stainless steel bottle holder allows for single-person operation, enhancing usability and efficiency.

Vacuum Pumps.jpg

Match Equipment：The Rotary Evaporator can be a system with Chiller and Vacuum Pump.

Vacuum Pumps.jpg

Chiller Functions:

Rapid Vapor Cooling: Quickly cools vapor to enhance recovery rates.
Sealed Recycling System: Efficiently recycles cooling water, conserving water resources.

Vacuum Pump Functions:

Boiling Point Reduction: Lowers the boiling point to accelerate evaporation rates.
Vapor Guidance: Effectively directs vapor upward, improving recovery efficiency.

Packing & Shipping
