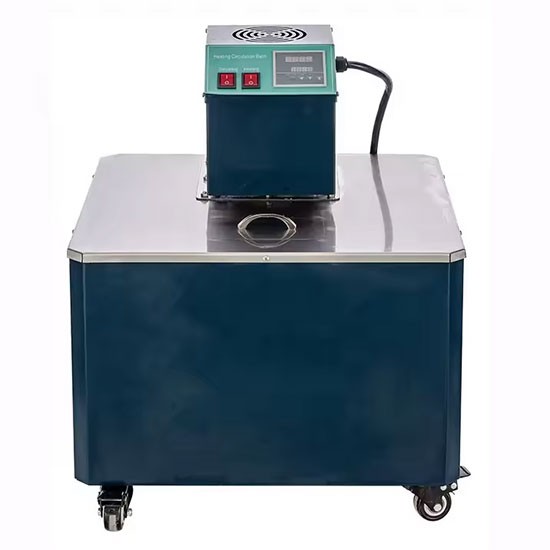

Laboratory LCD Display Circulating Oil Heater Thermostat lab oil heater industrial thermostat equipment circulating oil heating system

Heating Power 3000W
Circulation pump power 180W
Flow 30L/min
Total power 3180W
Bath capacity 385*270*260; 28L

PRODUCT DETAIL

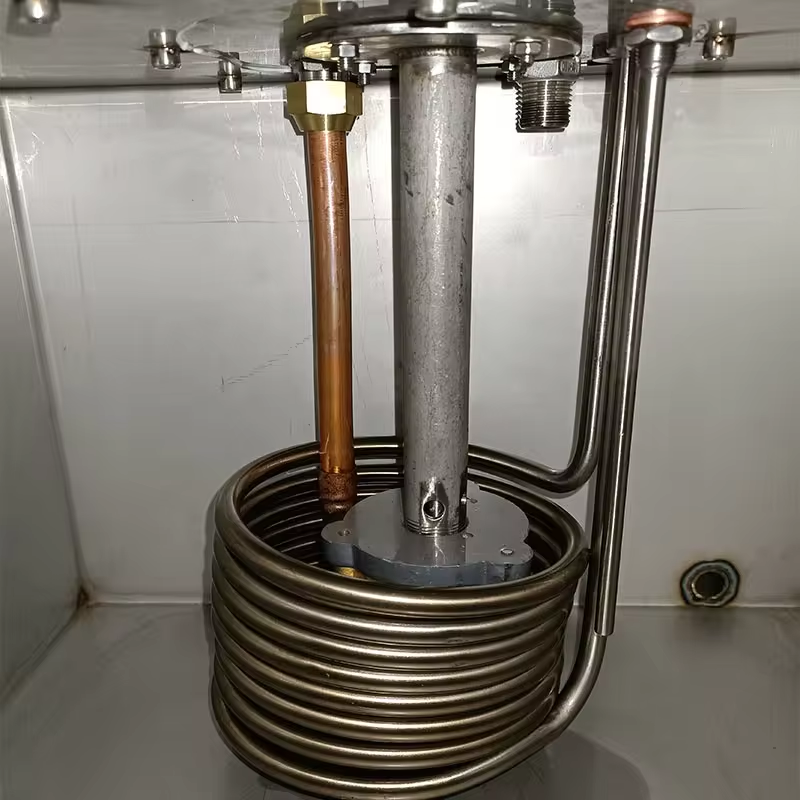

This laboratory LCD display circulating oil heater thermostat is widely used in colleges, scientific research, environmental testing, biochemical, and chemical research fields. With a stable structure and easy operation, the bath is made from SS304 stainless steel, while the shell is constructed from high-quality, electrostatic spray plastic. The heating ring is submerged in the oil for rapid, efficient heating. The system is energy-saving with PID accurate temperature control. An efficient circulating pump allows connection to external equipment like a double-layer glass reactor for enhanced temperature control. Ideal for labs needing precise temperature regulation, this oil heating system ensures stable and consistent performance for research needs.

Model	GY-10L	GY-20L
For glass reactor	10L	20L
Heating power	3KW
Pump power	180W
Voltage	220V/50Hz
Flow rate	30L/min
Lift head	8m
Total power	3180W
Temperature range	Water: RT~ 99℃ Oil: RT ~ 250℃; ±1℃
Circulation medium	Distilled water/Heat transfer oil
Bath capacity	385270260; 28L
Capacity of oil in the bath	No less than 17L
Feeding oil port size	140*100mm

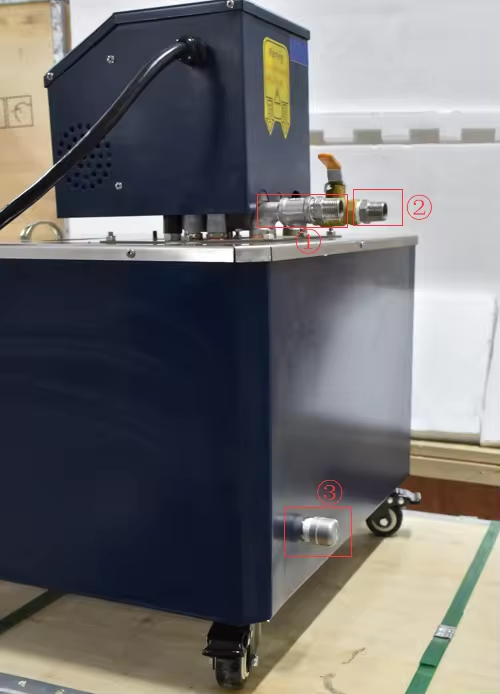

Circulating tube	4'' *2m (internal thread)
Drain port	4'' (external thread)
Connect pipe	Stainless steel bellows

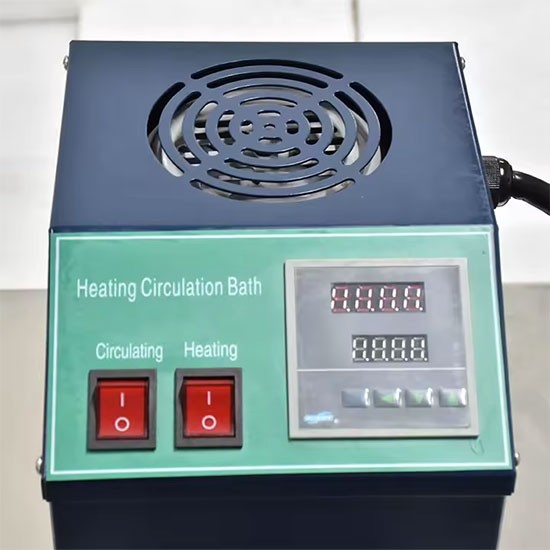

Temp. display	PID accurate temperature control
Operating environment	Ambient temperature: 0-50℃; Ambient humidity: 45%~85%RH
Machine size	405530600mm
