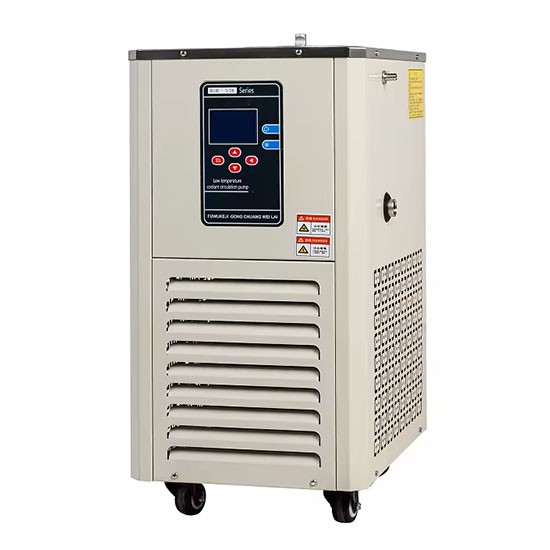

Science laboratory low temperature circulating chiller -120C to room temperature low temp chiller laboratory cooling system

Working Temperature Range -30℃-RT
Function Low Temperature Circulating Cooling
Voltage 220V 50Hz/220V 60Hz
Cooling capacity 1314W~225W
Refrigerant R404A
Heat exchanger SS304 Tank with Cooling coil
Cooling power 650W

PRODUCT DETAIL

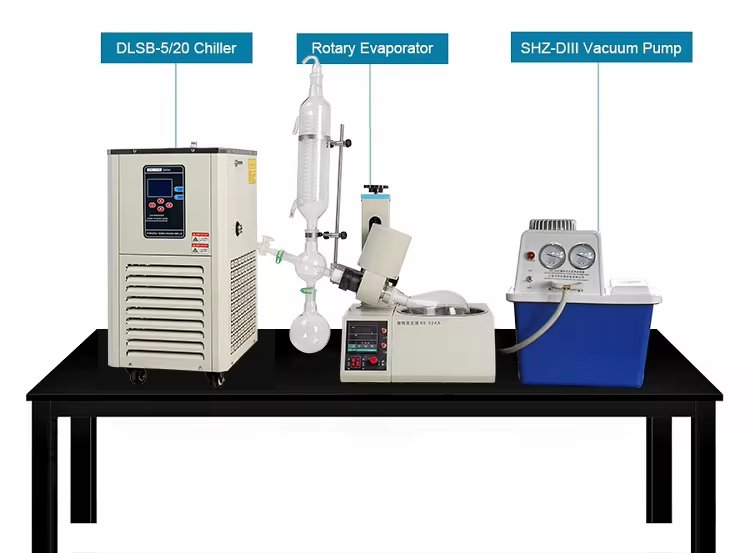

The DLSB Series Chiller uses a fully enclosed compressor for mechanical refrigeration. It features cooling copper coils around the tank wall, with refrigerant (Freon) continuously circulating through these coils to cool the coolant (industrial alcohol). The built-in circulation pump and external pipeline transfer the refrigerant to jacketed reactors or condensing coils, indirectly cooling materials or liquefying vapor. It can be connected to jacketed reactors, rotovaps, and other lab equipment for low-temperature reactions.

We have models with different temperature usage ranges：

Model		DLSB-5/20	DLSB-5/40	DLSB-5/80	DLSB-5/120
Using Temperature Range		-20℃-RT	-40℃-RT	-80℃-RT	-120℃-RT
Placement Environment		Optimum ambient:5 ~35℃; Ambient humidity:≤70% Ventilation
Circulating Coolants		>95% Industrial alcohol
Compressor	Quantity	1	1	2	3
	Refrigerant	R404A	R404A	R404A+R23	R404A+R23+R14
	Cooling power	470W	750W	1500W	2250W
	Cooling capacity	875W~225W	1900W~170W	2044W~170W	2250W~150W

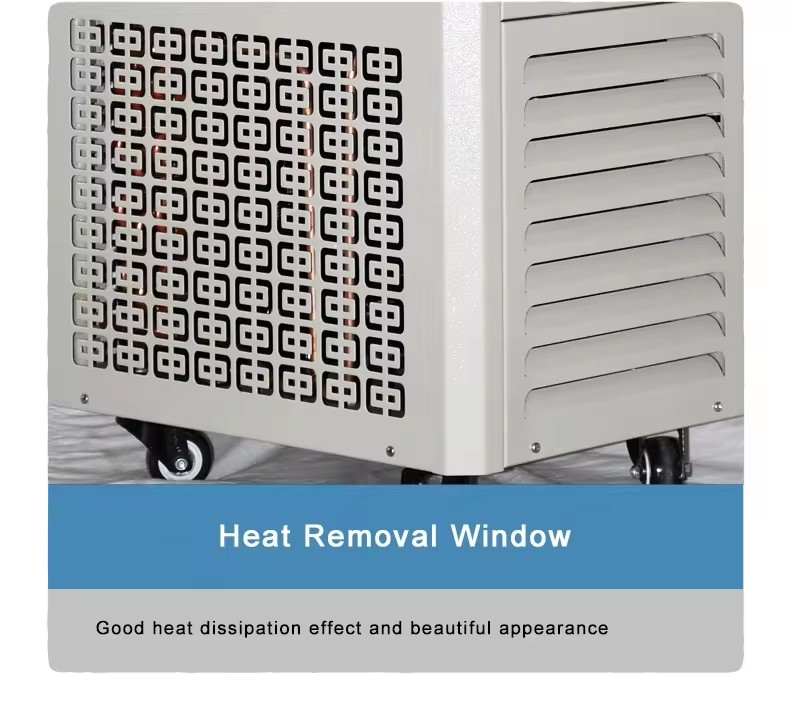

Air Condenser	Power	75W	75W	75W	180W
	Heat transfer area	8㎡	8㎡	8㎡	16㎡
	Air volume	1560m³/h	1560m³/h	1560m³/h	3400m³/h
Circulating Pump	Power	100W
	Flow	Q=20-40L/min
	Lift	4-6m
Temperature Control System	Setting way	Touch button setting
	Control type	PID intelligent temperature control
	Temperature sensor	PT100
	Temperature feedback	Outlet coolants temperature feedback PT100

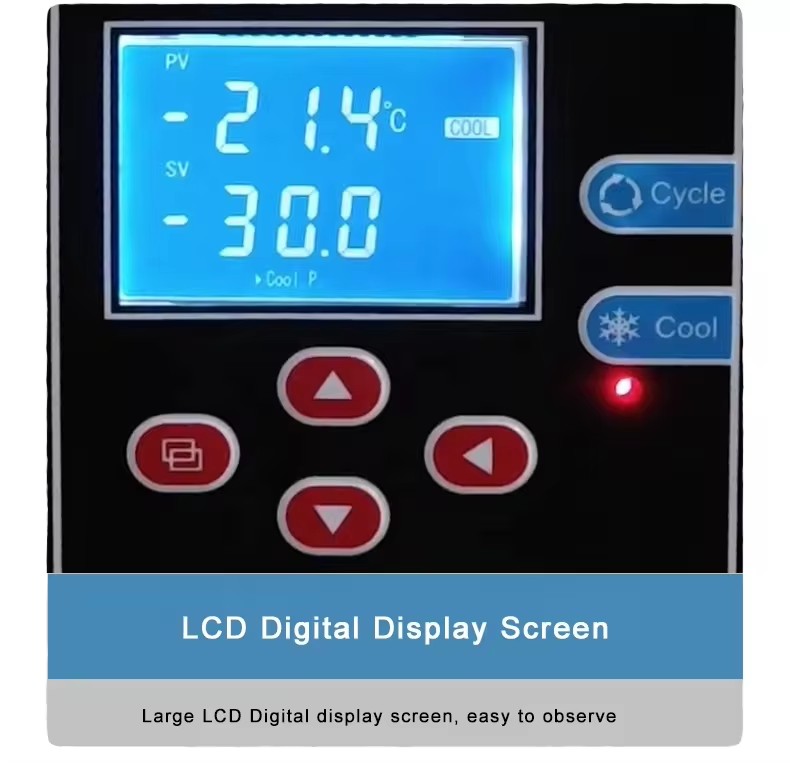

	Display type	Set temperature and Real-time temperature LCD digital display (smallest unit:0.1℃)
	Control accuracy	±0.1℃

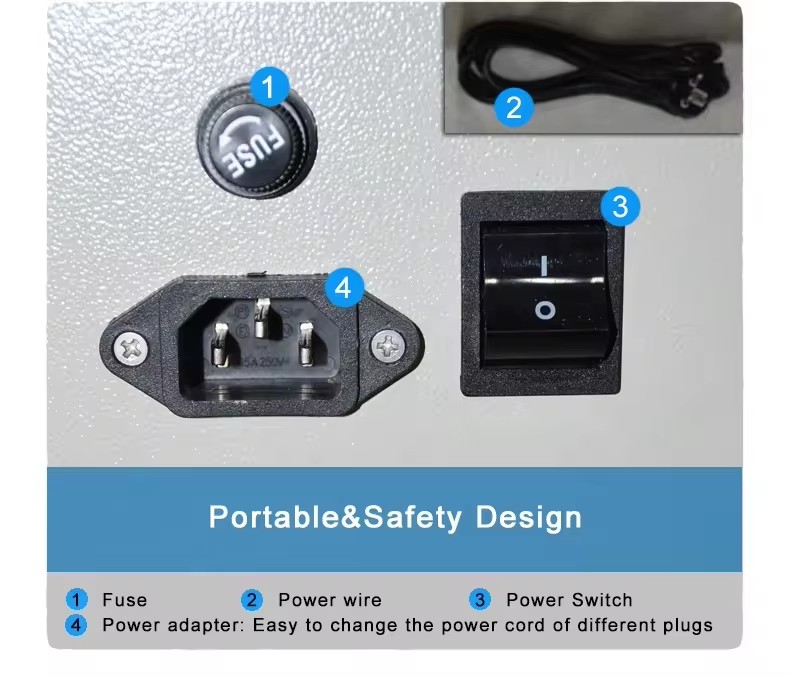

	Safety function	With time delay, leakage, overcurrent, overheating protection
Power Supply	Voltage	220V±10%，50/60Hz
	Output power	650W	950W	1700W	2550W
	Output current	3A	4.3A	7.8A	11.6A

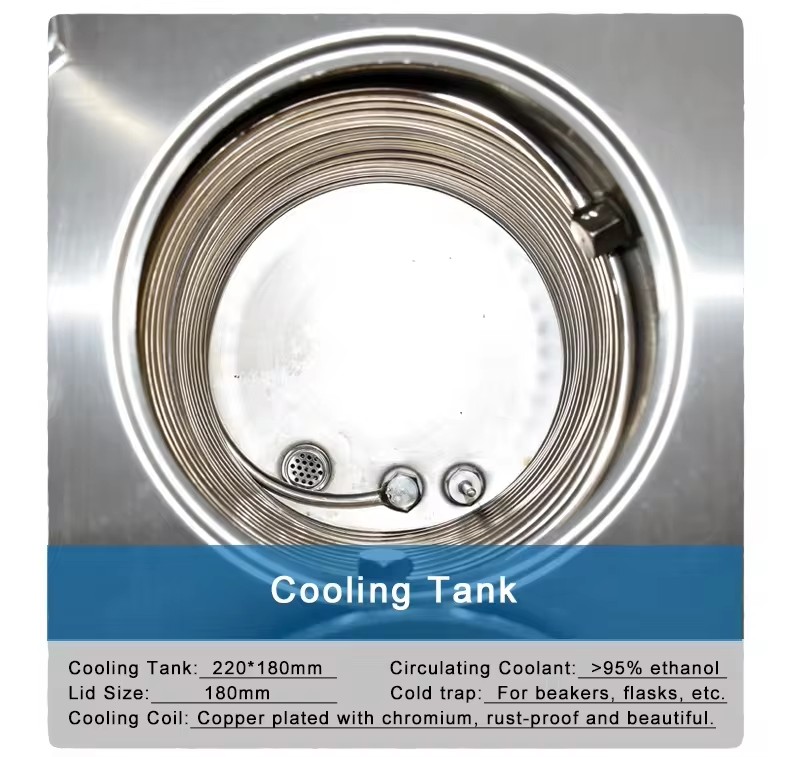

Configuration Dimension	Cooling tank	Φ220×180 1Crl8Ni9Ti
	Inlet/Outlet	4’ (DN15)
	Lid of Tank size	180mm
