1.5KW Laboratory Intelligent Thermostatic Circulating Heater with Digital Temperature Controller for Precise Heating

Dimension(L*W*H) 450X640X730mm
Working Temperature Range 25 - 200 ℃
Pump Power 100W
Flow Rate 20-40L/min

EMAIL

  PRODUCT  DETAIL

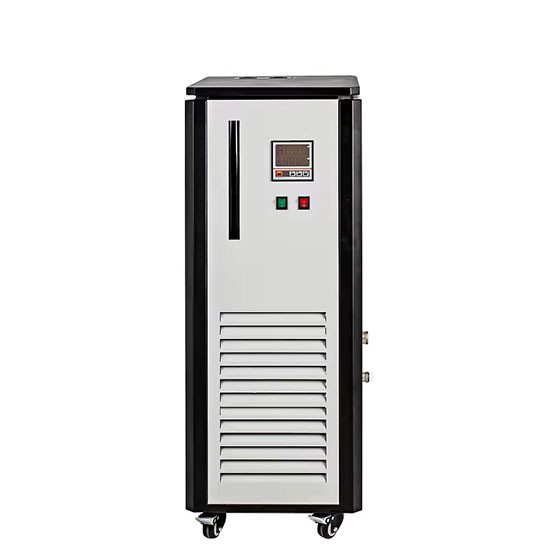

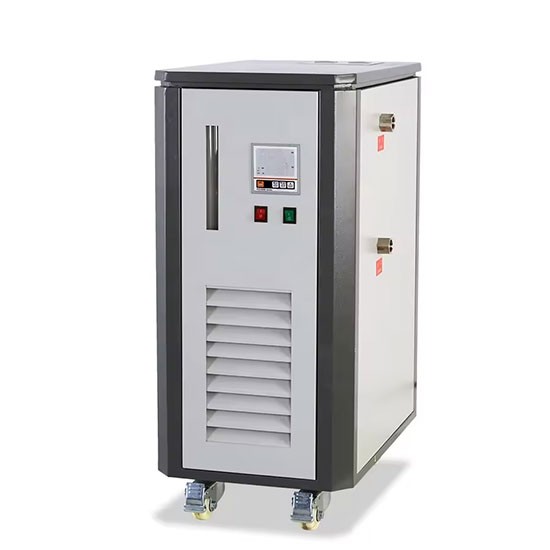

HC2 Series Seal High-Temperature Circulating Heater for Efficient and Rapid Heating Solutions

The HC2 Series Seal High-Temperature Circulating Heater is engineered to meet customer demands for high-temperature applications and quick heating solutions. A standout feature of this circulating heater is its heating element, strategically placed within a closed circulation system, which significantly enhances heating efficiency and minimizes heat loss.

This design ensures optimal thermal performance, making it ideal for industrial processes, chemical reactions, and laboratory experiments that require reliable and rapid temperature control. With its advanced features, the HC2 Series Heater delivers consistent heating performance while maximizing energy efficiency, making it a preferred choice for research facilities and manufacturing applications requiring high-performance heating solutions.


Model

HC2-0510

Heating power

1.5KW

Heating circulating system

Seal Circulating System

Function

Provide a thermostatic heat source

Circulating performance

Type

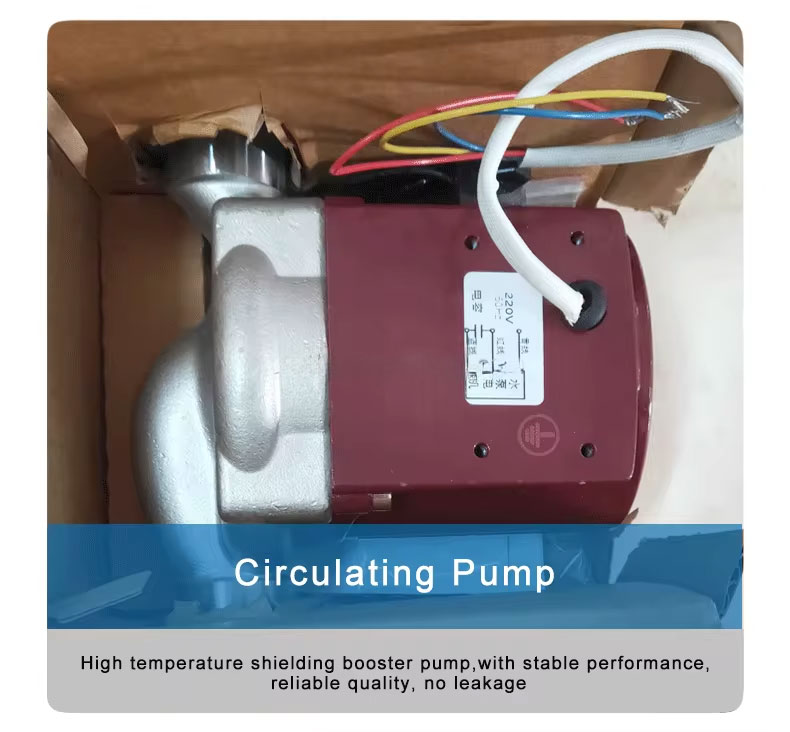

Shielded booster pump

Pump power

100W

Flow rate

20-40L/min

Lift head

4~6m

Temp. control System

Temperature sensor

PT100

Control type

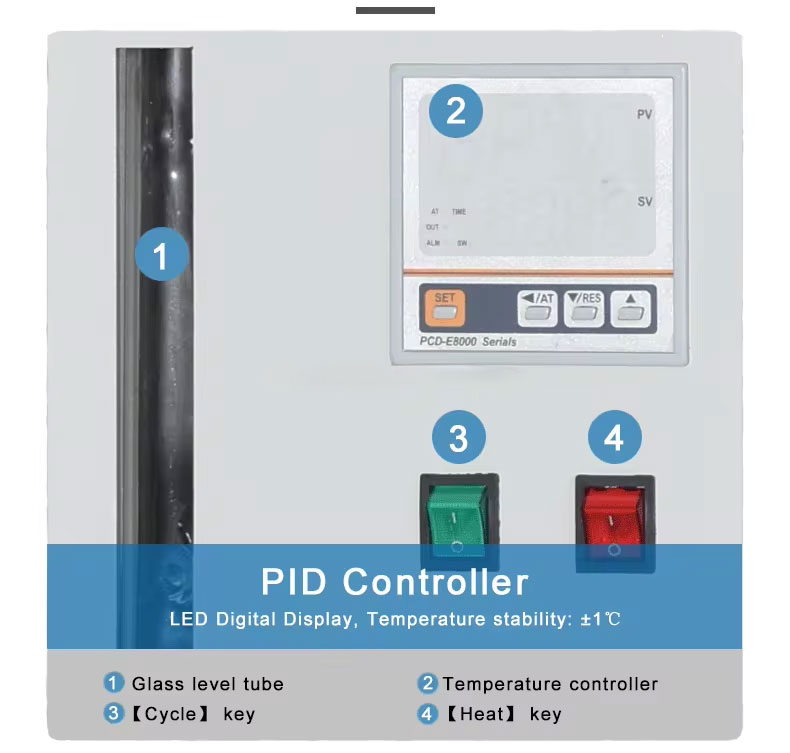

PID control, LED Digital Display

Setting range

PT100:0~400.0℃

Using range

Water: RT~ 99℃ Oil: RT ~ 200℃

Temperature stability

±1℃

Working Condition

Power supply

220V, 50/60HZ, 1-phase

Output power

1.6KW

Output current

7.3A

Ambient temperature

-10℃~+60℃

Ambient humidity

<90%RH

Ambient pressure

86kPa~106kPa

Circulation medium

Water

Deionized or Distilled water

Heat transfer oil

Viscosity of oil less than 100C•S•t will be better

Dimensions

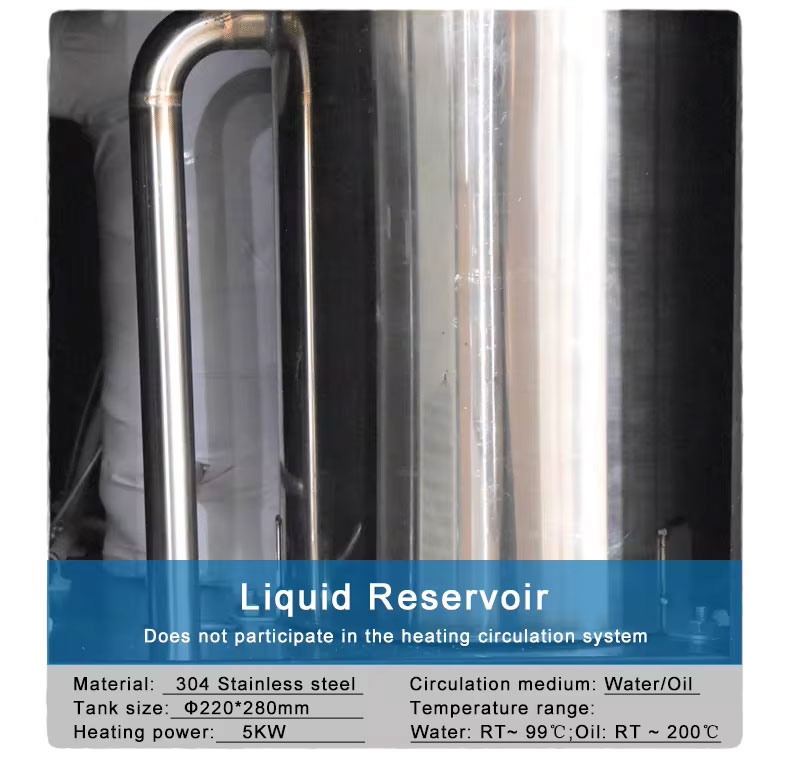

 Reservoir

Does not participate in the heating circulation system

Φ220*200mm

Heating element

Φ90*200mm

Inlet/outlet size

DN15(4’’=G1/4), other type can be done
