5KW High-Temperature Laboratory Circulating Heater for Precise Temperature Control and Efficient Heating

Dimension(L*W*H) 450X640X730mm
Working Temperature Range 25 - 200 ℃
Pump Power 100W
Flow Rate 20-40L/min

PRODUCT DETAIL

HC2 Series Seal High-Temperature Circulating Heater for Efficient Laboratory and Industrial Heating

The HC2 Series Seal High-Temperature Circulating Heater is designed to meet customer demands for high-temperature and quick heating solutions. This model features a unique closed circulation system where the heating element is securely placed, ensuring improved heating efficiency and minimal heat loss. Engineered for industrial and laboratory applications, it is ideal for environments requiring reliable temperature control, energy efficiency, and consistent performance.

With the HC2 series heater, users can achieve precise and fast heating in applications such as chemical processing, pharmaceutical labs, and other research settings that demand high-performance temperature control systems.

High Tempearture Circulating Heater.jpg

Model		HC2-50
Heating power		5KW
Heating circulating system		Seal Circulating System
Function		Provide a thermostatic heat source

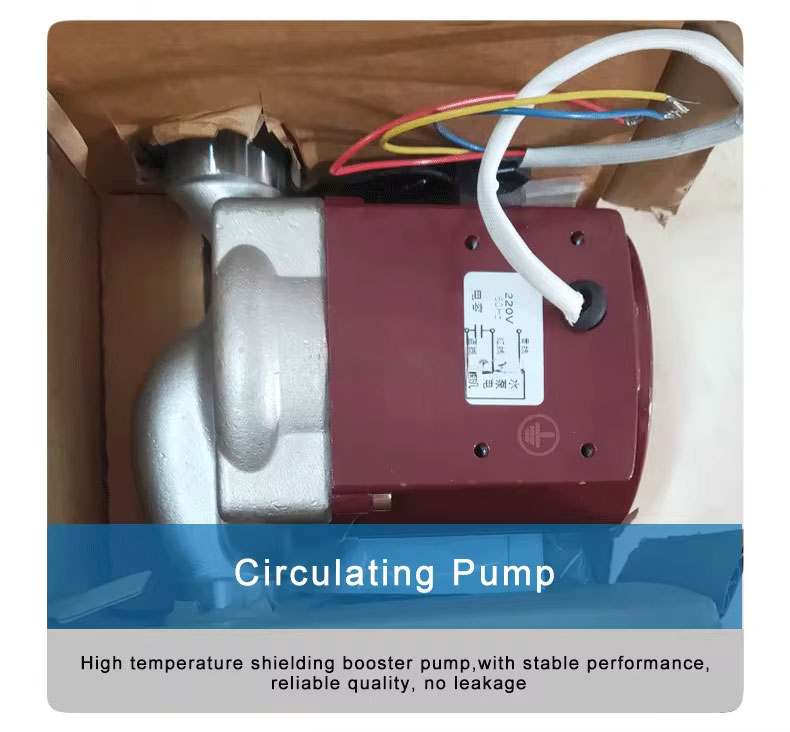

Circulating performance	Type	Shielded booster pump
	Pump power	100W
	Flow rate	20-40L/min
	Lift head	4~6m

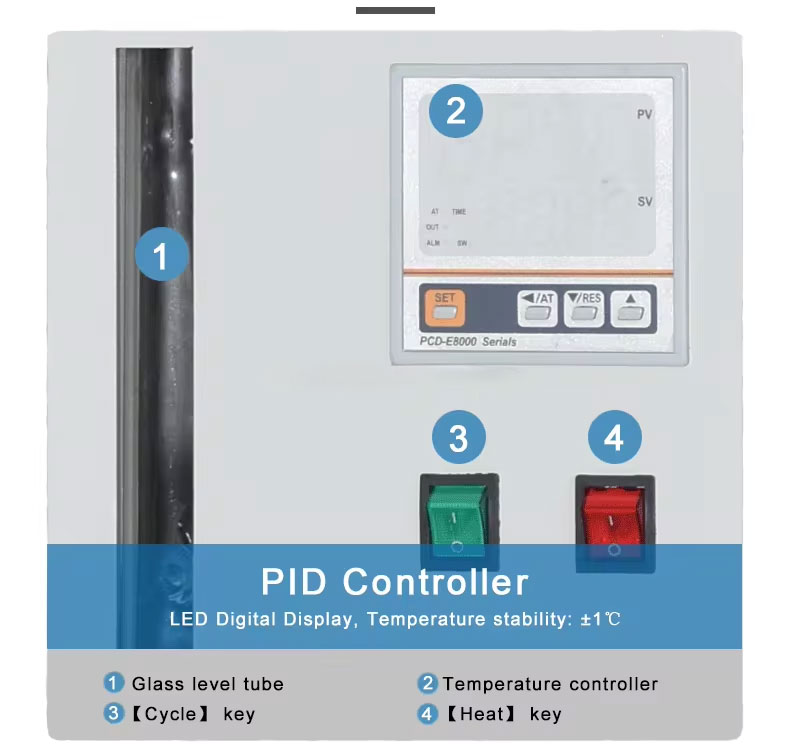

Temp. control System	Temperature sensor	PT100
	Control type	PID control, LED Digital Display
	Setting range	PT100：0～400.0℃
	Using range	Water: RT~ 99℃ Oil: RT ~ 200℃
	Temperature stability	±1℃
Working Condition	Power supply	220V, 50/60HZ, 1-phase
	Output power	5.1KW
	Output current	23.2A
	Ambient temperature	-10℃~+60℃
	Ambient humidity	<90%RH
	Ambient pressure	86kPa~106kPa
Circulation medium	Water	Deionized or Distilled water
Circulation medium	Heat transfer oil	Viscosity of oil less than 100C•S•t will be better

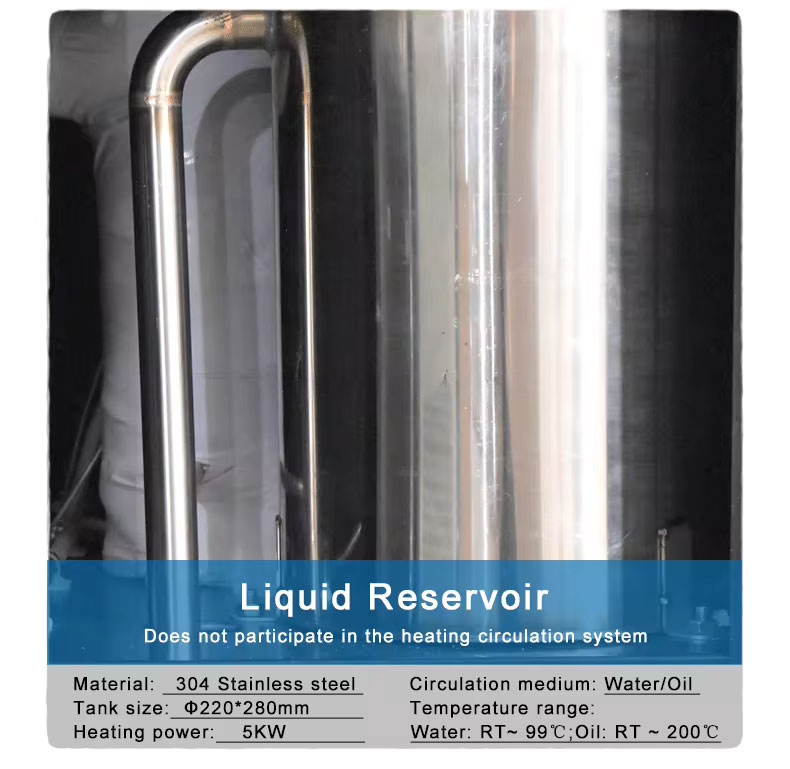

Dimensions	Reservoir	Does not participate in the heating circulation system
	Reservoir	Φ220*300mm
	Heating element	Φ90*250mm
