Customizable Hemp Oil Jacketed PTFE Filtration Dewax 10L 50L Jacketed Glass Reactor, Complete Set for Lab Use

Product Name Jacketed Glass Reactor with Filter
Filter Capacity 10L
Jacket volume 3L
Glass Material High Borosilicate Glass 3.3
Mixing Type Anchor
Speed 0-600rmp
Temperature probe Standard
Bottom Filter PTFE with Removable core

PRODUCT DETAIL

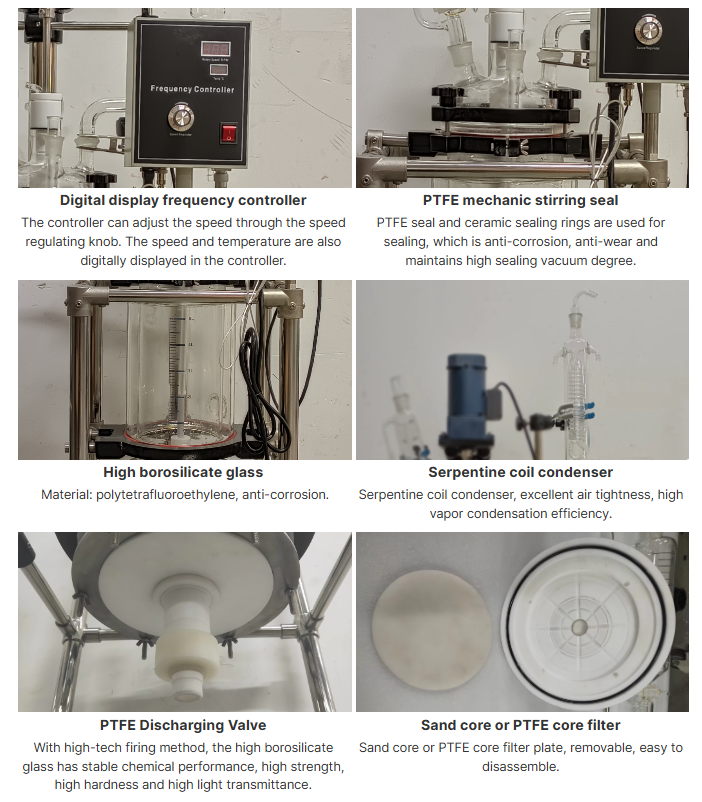

Jacketed Glass Reactor.jpg

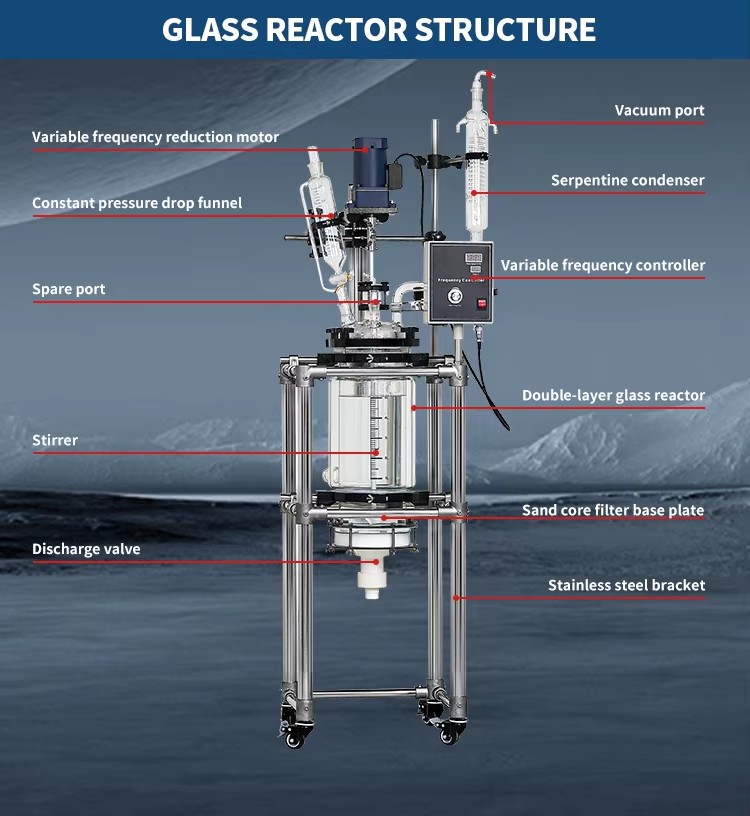

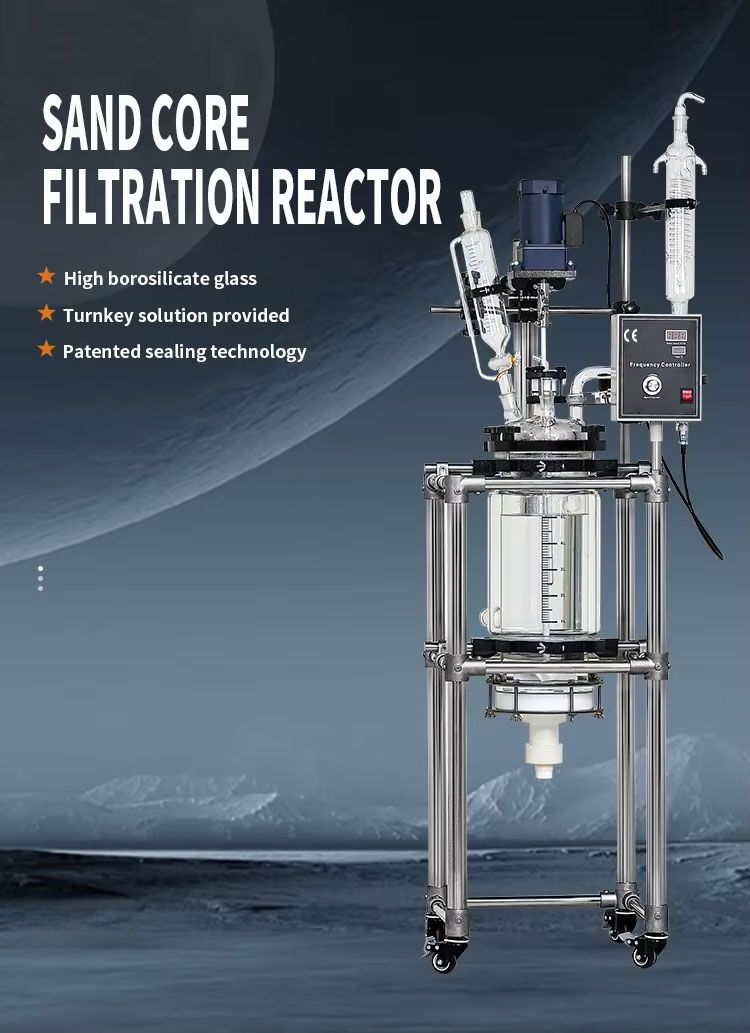

The Jacketed Glass Filtration Reactor, designed for solvent stirring within the reaction vessel, allows constant temperature heating by injecting conduction oil into the jacket. Equipped with a sand core or PTFE core plate at the bottom for material separation, it also enables vacuum conditions during the reaction process. This innovative solid-phase separation reactor is ideal for synthetic chemical reactions and new material preparation, making it perfect for laboratory and production use. Keywords: Jacketed Glass Filtration Reactor, solid-phase separation reactor, synthetic chemicals, new material preparation, laboratory filtration reactor, vacuum filtration reactor, PTFE core filtration reactor, chemical reaction equipment, constant temperature reactor.

Model	S312-1L	S312-2L	S312-3L	S312-5L	S312-10L	S312-20L
Glass material	High Borosilicate Glass 3.3
Jacket capacity	0.3L	0.6L	0.9L	1.5L	3L	6L
Material capacity	1L	2L	3L	5L	10L	20L
Constant pressure funnel	0.25L		0.5L		1L	2L
Mixing speed	0~1200rpm		0~600rpm
Condensation area	0.03m²		0.04m²	0.05m²	0.35m²	0.45m²
Overall size (cm)	4436133		5250151	6765192		7270202
Power Supply	110V/60HZ or 220V/50HZ
Power	120W low-speed booster motor
Operating pressure	Normal or negative pressure
Ground clearance	8-10cm				47(cm)	43(cm)

Model	S312-30L	S312-50L	S312-80L	S312-100L	S312-150L	S312-200L
Glass material	High Borosilicate Glass 3.3
Jacket capacity	10L	16L	24L	30L	45L	50L
Material capacity	30L	50L	80L	100L	150L	200L
Constant pressure funnel	2L				5L
Mixing speed	0~600rpm
Condensation area	0.5m²	0.65m²	1m²		1.35m²	1.35m²
Overall size (cm)	6575240	7570245	7772248	7873250	124114310
Power Supply	110V/60HZ or 220V/50HZ
Power	120W		200W		400W	750W
Operating pressure	Normal or negative pressure
Ground clearance	43(cm)		50(cm)		30(cm)

Jacketed Glass Reactor.jpg

Speed control motor

The All-Copper Brushless Variable-Frequency Speed Regulating Motor offers exceptional performance with no brushes, eliminating sparks and reducing noise. This motor is designed for safety, stability, and long lifespan, featuring overload protection and constant speed for reliable operation. It ensures stable starting and is available with an optional explosion-proof feature, making it ideal for demanding industrial and laboratory environments.

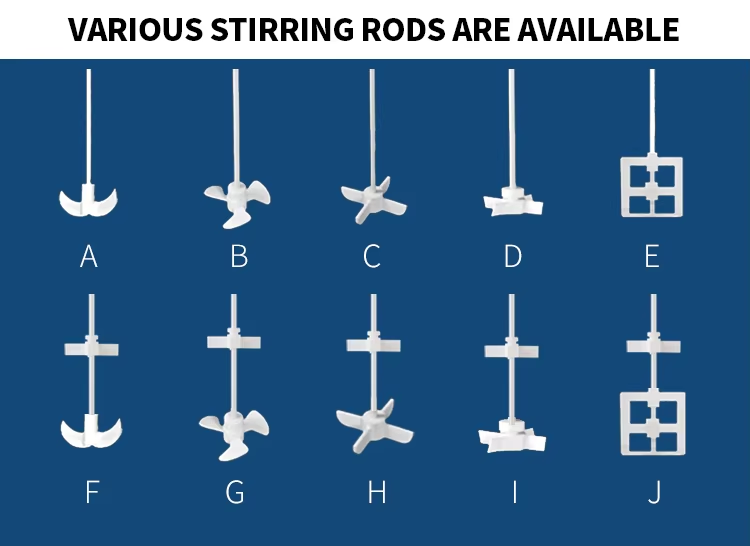

Various stirrers

The stirrer is constructed from 316L stainless steel wrapped in a PTFE coat, offering excellent corrosion resistance. (316L stainless steel is optional.) The stirring blade is fully customizable, and we provide a range of blade shapes to meet your specific needs. This design ensures durability and versatility for a variety of laboratory and industrial applications.
