Jacket volume 16L
Glass Material High Borosilicate Glass 3.3
Sand core diameter 190mm
Mixing Type Anchor
Speed 0-600rmp
Temperature probe Standard
Bottom Filter PTFE with Removable core
Filter Precision can be optional
PRODUCT DETAIL

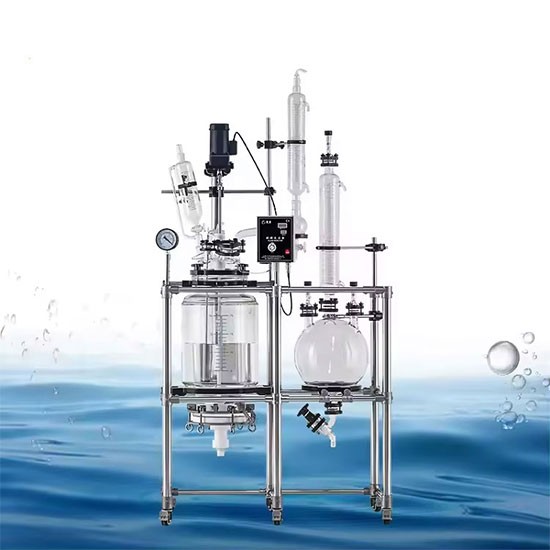

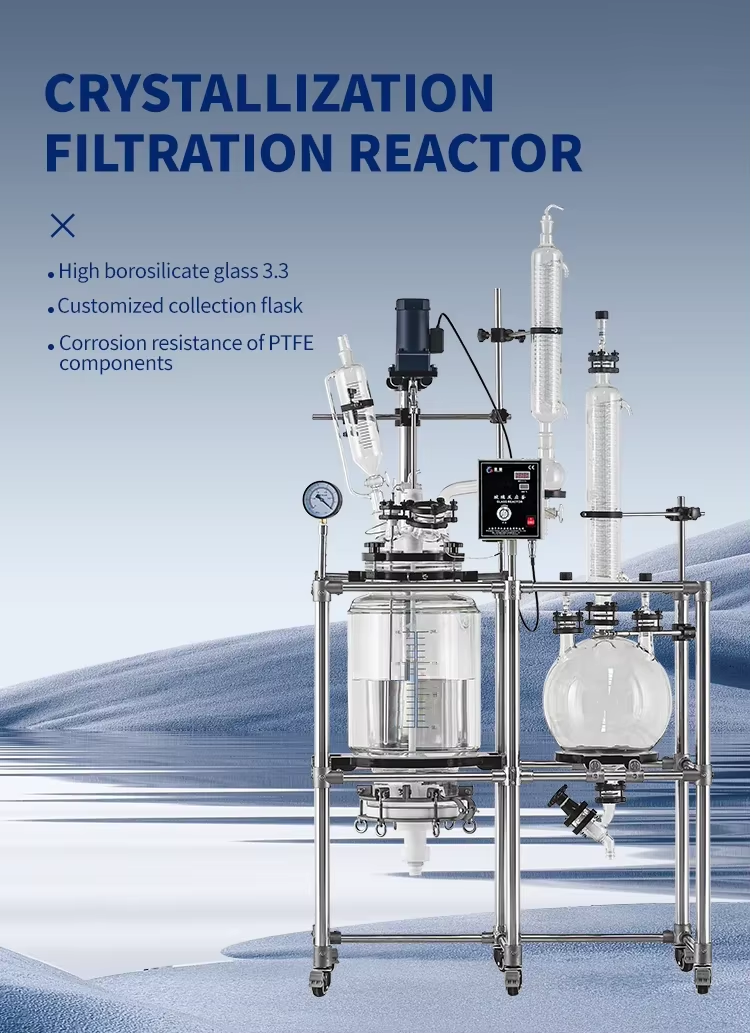

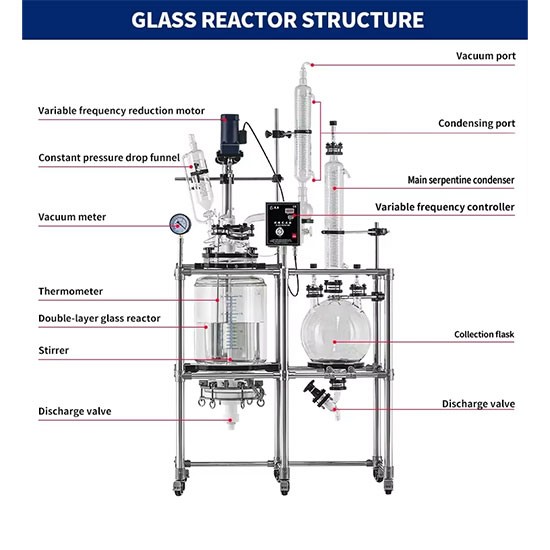

The Jacketed Glass Filtration Reactor is designed for efficient solvent stirring within the reaction vessel and features constant temperature heating by injecting conduction oil into the jacket. Materials are separated using a sand core or PTFE core plate at the bottom. This reactor supports vacuum conditions during the process, making it a new type of solid-phase separation reactor. Ideal for modern synthetic chemicals and new material preparation, it provides precise control for both testing and production environments.

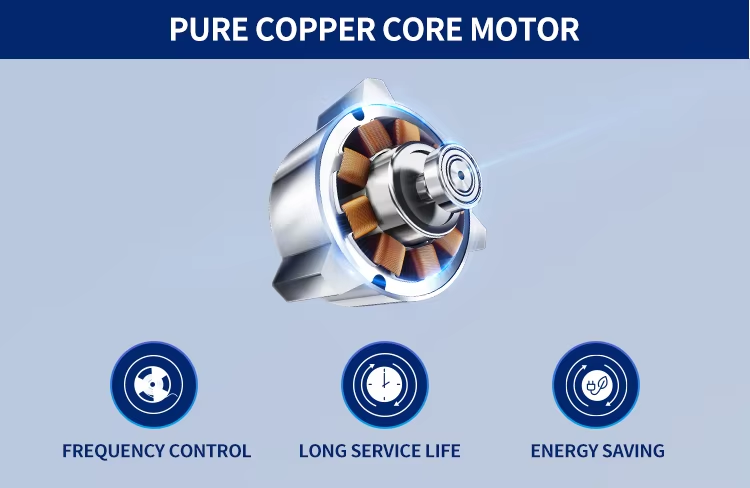

Speed control motor
The All-Copper Brushless Variable-Frequency Speed Regulating Motor offers exceptional performance with no brushes, eliminating sparks and reducing noise. This motor is designed for safety, stability, and long lifespan, featuring overload protection and constant speed for reliable operation. It ensures stable starting and is available with an optional explosion-proof feature, making it ideal for demanding industrial and laboratory environments.

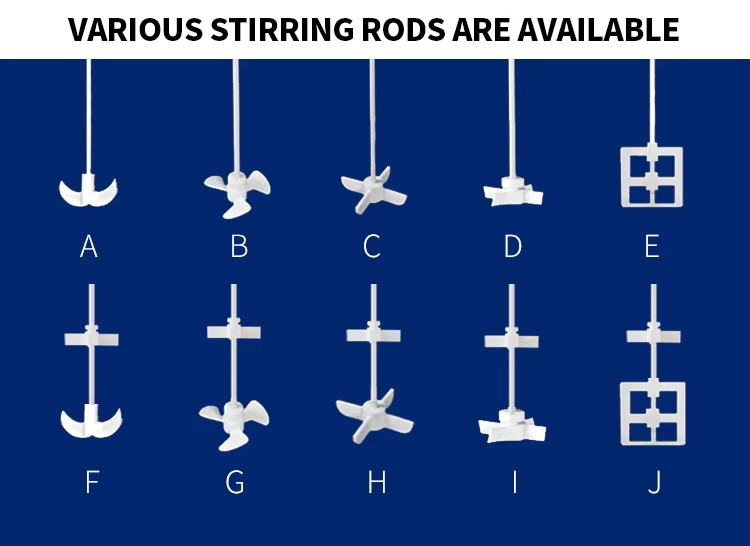

Various stirrers
The stirrer is constructed from 316L stainless steel wrapped in a PTFE coat, offering excellent corrosion resistance. (316L stainless steel is optional.) The stirring blade is fully customizable, and we provide a range of blade shapes to meet your specific needs. This design ensures durability and versatility for a variety of laboratory and industrial applications.
