Rotation speed 0~60rpm
Collection flask 50L+20L
Heating range RT~180℃
PTFE sealing Excellent corrosion resistance
Heating Power 18KW
Lift type Electric lift
Condenser Main Condenser+Assistant Condenser
Evaporative Capacity Alcohol≥31.5L/h
Certification CE
PRODUCT DETAIL

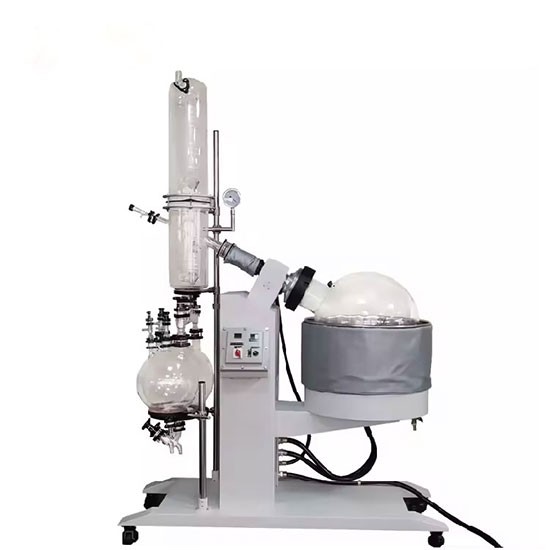

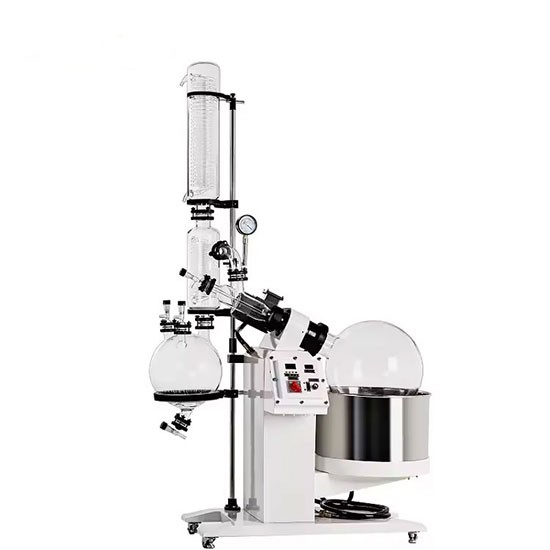

The RE-series rotary evaporator is ideal for small-scale and pilot-scale testing, as well as production in biological, chemical, and food industries. Featuring a large-capacity and wide-diameter rotary evaporating flask, this equipment enhances solvent extraction and mixed solution separation. When placed in a water bath, it simultaneously rotates and heats, allowing solutions to spread and evaporate rapidly. Perfect for laboratories, this rotary evaporator is essential for efficient distillation, concentration, and crystallization processes, ensuring high-quality results in your experiments.
It can be used in the following experiments or product production.
☑Concentration of solutions; ☑Reclamation of solvents; ☑Separation of chemicals; ☑Vacuum drying of wet solids; ☑Essential oil extractor; ☑Remove solvent from sample.
Model | EX RE-1100 |
Rotary Flask | 100L Φ200mm(Flange mouth) |
Collection Flask | 50L+20L |
Rotary Speed | 0~60r/min |
Rotary Motor Power | 750W |
Lift Motor Power | 500W |
Condenser | Main Condenser+Assistant Condenser |
Seal Assembly Seal | PTFE+ Rubber ring seal, corrosion resistance seals. |
Heating Bath | Stainless steel water/oil bath, All-in-one electric lift |
Temp. Range | Oil: RT~180℃ |
Evaporative Power | H2O≥15L/h, Alcohol≥31.5L/h |
Heating Power | 18KW |
Glass Material | G17 High borosilicate glass |
Seal Parts | PTFE Seal, Corrosion Resistant |
Machine Size | 1800*1000*2600mm |
NW | 310kg |
Voltage | 380V, 50/60Hz, 3-phase |
