100L Industrial Alcohol Distillation Equipment Lab Rotary Evaporator

Rotation speed 0~60rpm
Collection flask 50L+20L
Heating range RT~180℃
PTFE sealing Excellent corrosion resistance
Heating Power 18KW
Lift type Electric lift
Condenser Main Condenser+Assistant Condenser
Evaporative Capacity Alcohol≥31.5L/h
Certification CE

PRODUCT DETAIL

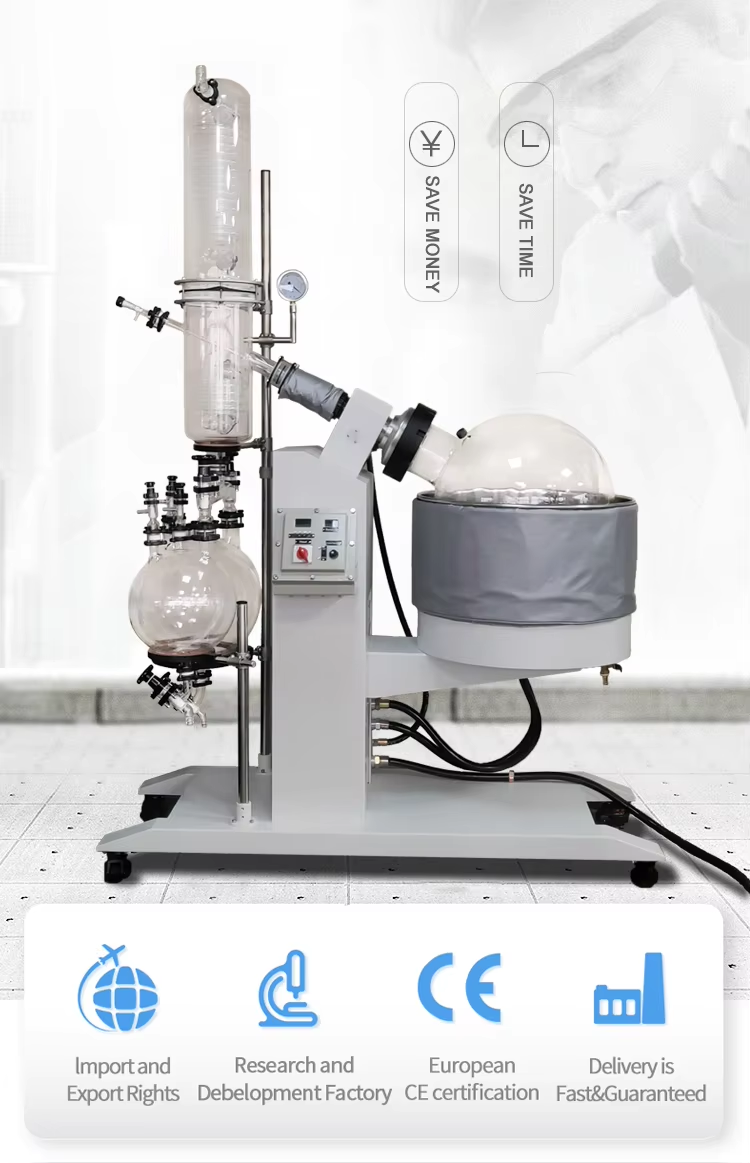

Rotary Evaporator.jpg

The RE-series rotary evaporator is designed for small-scale and pilot-scale testing and production in biological, chemical, and food industries. With its large-capacity and wide-diameter rotary evaporating flask, this equipment efficiently spreads and evaporates solutions when placed in a water bath, allowing for rapid evaporation. Ideal for solvent extraction and mixed solution separation, this rotary evaporator is essential for enhancing laboratory productivity and achieving precise results.

It can be used in the following experiments or product production.

☑Concentration of solutions; ☑Reclamation of solvents; ☑Separation of chemicals; ☑Vacuum drying of wet solids; ☑Essential oil extractor; ☑Remove solvent from sample.

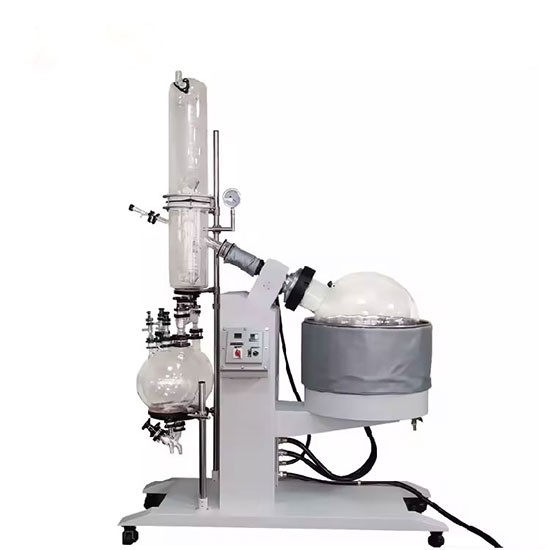

Rotary Evaporator.jpg

Model	EX RE-1100
Rotary Flask	100L Φ200mm（Flange mouth）
Collection Flask	50L+20L
Rotary Speed	0～60r/min
Rotary Motor Power	750W
Lift Motor Power	500W
Condenser	Main Condenser+Assistant Condenser
Seal Assembly Seal	PTFE+ Rubber ring seal, corrosion resistance seals.
Heating Bath	Stainless steel water/oil bath, All-in-one electric lift
Temp. Range	Oil: RT~180℃
Evaporative Power	H₂O≥15L/h, Alcohol≥31.5L/h
Heating Power	18KW
Glass Material	G17 High borosilicate glass
Seal Parts	PTFE Seal, Corrosion Resistant

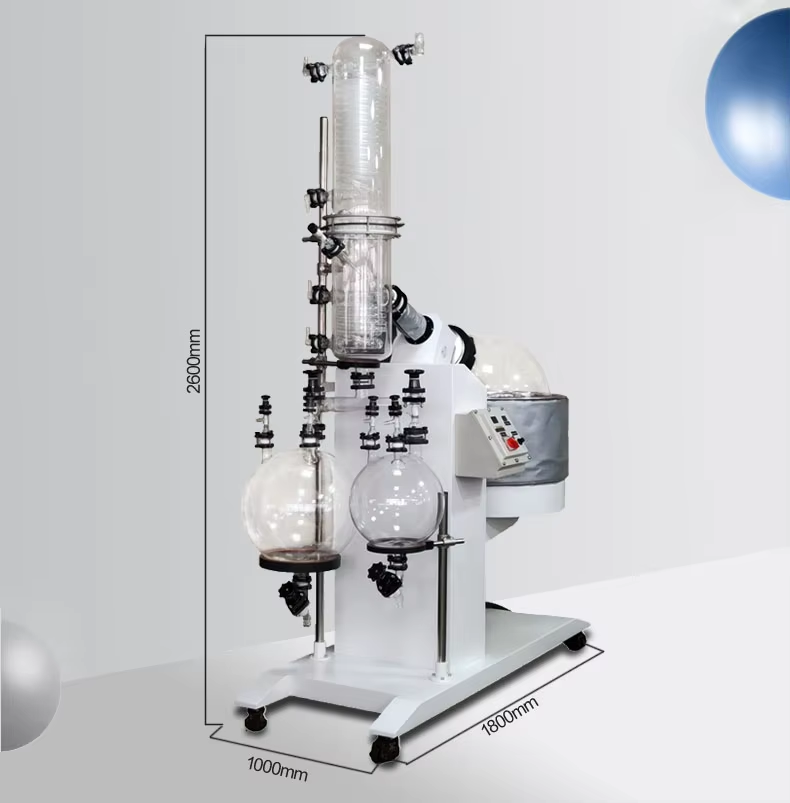

Machine Size	180010002600mm
NW	310kg
Voltage	380V, 50/60Hz, 3-phase
