5000ml Laboratory Heating Mantle with Magnetic Stirrer Hot Plate ZNCL-TS for Efficient Stirring and Heating

  PRODUCT  DETAIL

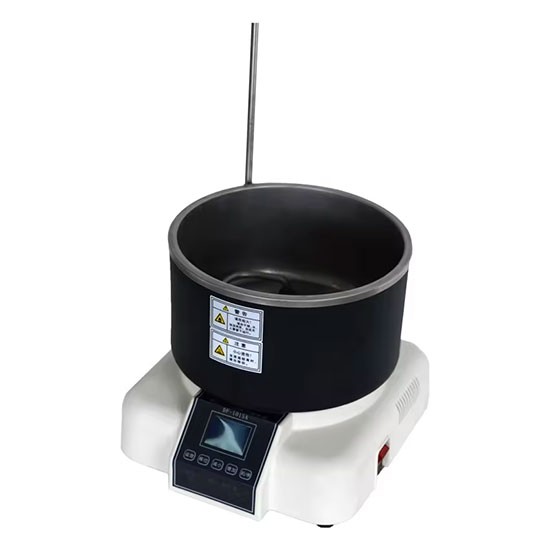

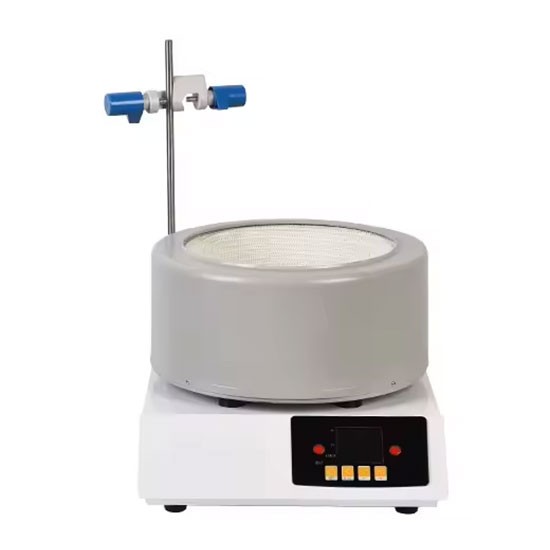

High-Efficiency Laboratory Heating Mantle with Magnetic Stirrer

1. Fast and Uniform Heating: This heating mantle heats up quickly and evenly, with a maximum temperature of 380°C and a large heating area, ideal for laboratory mixing and heating applications.

2. Advanced Temperature Control: Equipped with a fuzzy PID control algorithm, this mantle features dual digital displays for accurate temperature monitoring and self-adjustment. It also includes inner and outer thermocouples, which enhance measurement precision and reduce temperature fluctuations. The system uses controllable silicon output for efficient power management across a 160-240V voltage range and has thermocouple break protection for added safety.

3. Versatile Capacity: Capable of heating and stirring 50-20000ml standard and non-standard reaction flasks, making it suitable for a wide range of laboratory setups.

4. Durable, Low-Noise Motor: The brushless DC motor provides stable performance, low noise, and long service life without sparking, enhancing reliability during prolonged use.

5. LED Digital Display: Temperature and stirring speed are displayed on a clear LED digital screen for easy monitoring.

6. High-Quality Shell: Constructed with a one-time molded flame-retardant PBT plastic injection shell, this mantle is heat-resistant, corrosion-resistant, and offers excellent insulation properties.

7. Safety Features: Equipped with over-temperature protection to ensure safe operation even at high temperatures.

8. Ergonomic Design: The 30° angled control panel is designed for comfortable use whether sitting or standing, allowing precise operation from any position.

9. Stepless Speed Control: Provides low stable operation at high strength, with a stepless speed adjustment feature for smooth stirring across various speed ranges.

This high-efficiency laboratory heating mantle is perfect for chemical, pharmaceutical, and research applications, delivering reliable temperature control and stirring performance in laboratory settings.

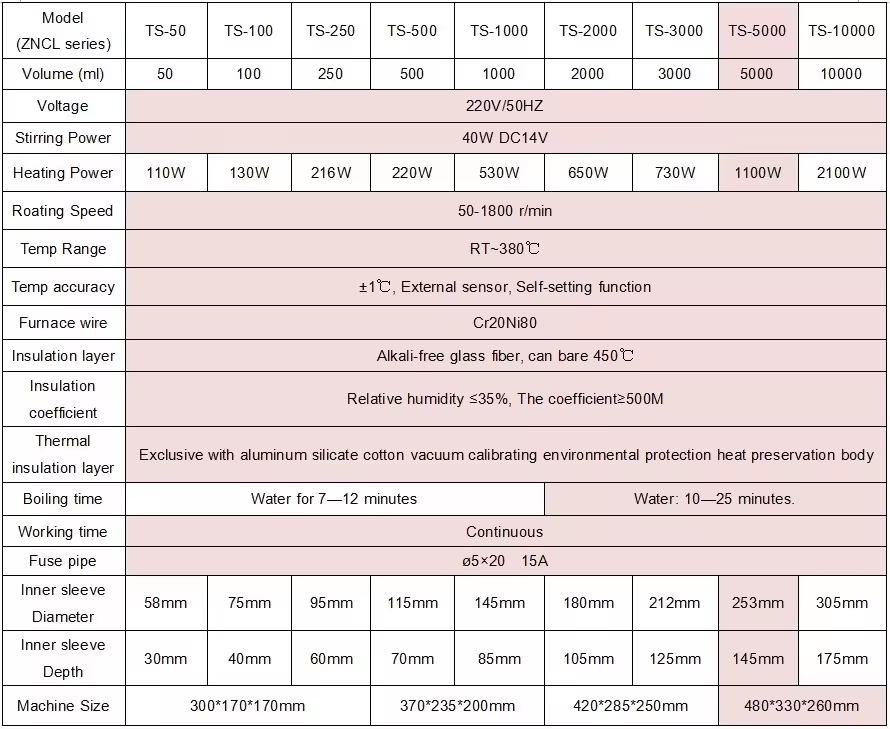

Specification

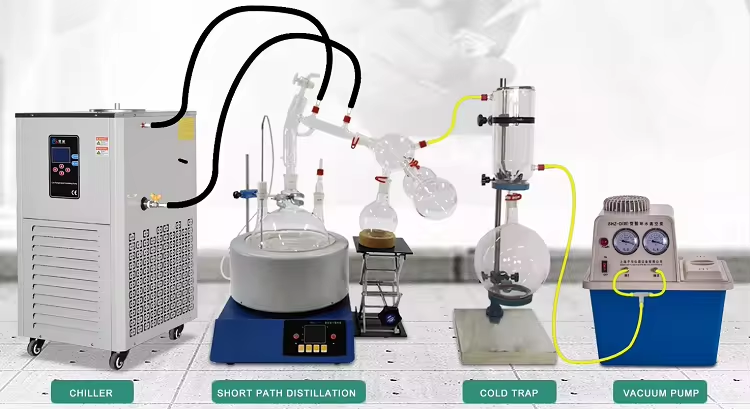

Turnkey Solution
