Pilot-scale explosion-proof vacuum rotary evaporator 20L 50L price for lab use

Rotary Flask 50L
Collection Flask 20L
Motor Power Ex-proof 370W
Heat Power 6KW/9KW
Power Supply 220V/380V
Rotation Speed 10~90rpm
Heat Temp. RT~200℃
Vacuum Degree <133Pa
Sealing PTFE Vacuum Sealing

PRODUCT DETAIL

rotary evaporator.jpg

Model	(EX) RE-1002(E)	(EX) RE-2002(E)	(EX) RE-3002(E)	(EX) RE-5002(E)
Electrical requirements	220V/240V, 50/60Hz	220V/240V/380V, 50/60Hz	220V/240V/380V, 50/60Hz	220V/240V/380V, 50/60Hz
Motor	180W (Explosion proof 180W optional)	250W (Explosion proof 370W optional)	250W (Explosion proof 370W optional)	250W (Explosion proof 370W optional)
Glass material	High borosilicate glass 3.3
Evaporating flask	10L (2.6 gallon)	20L (5.3 gallon)	30L (7.9 gallon)	50L (13.2 gallon)
Maximum load	Not to exceed 60% of the flask's capacity
Rotation speed	10-120rpm, It can be self-tuning	10-90rpm, It can be self-tuning	10-90rpm, It can be self-tuning	10-90rpm, It can be self-tuning
Heating power	2KW	3KW	6KW/9KW	6KW/9KW
Evaporating speed	H2O≥3.2L/h, Alcohol≥6.5L/h	H2O≥5L/h, Alcohol≥11L/h	H2O≥7.5L/h, Alcohol≥17L/h	H2O≥9L/h, Alcohol≥19L/h
Receiving flask	5L (1.32 gallon)	10L (2.6 gallon)	20L (5.3 gallon)	20L (5.3 gallon)

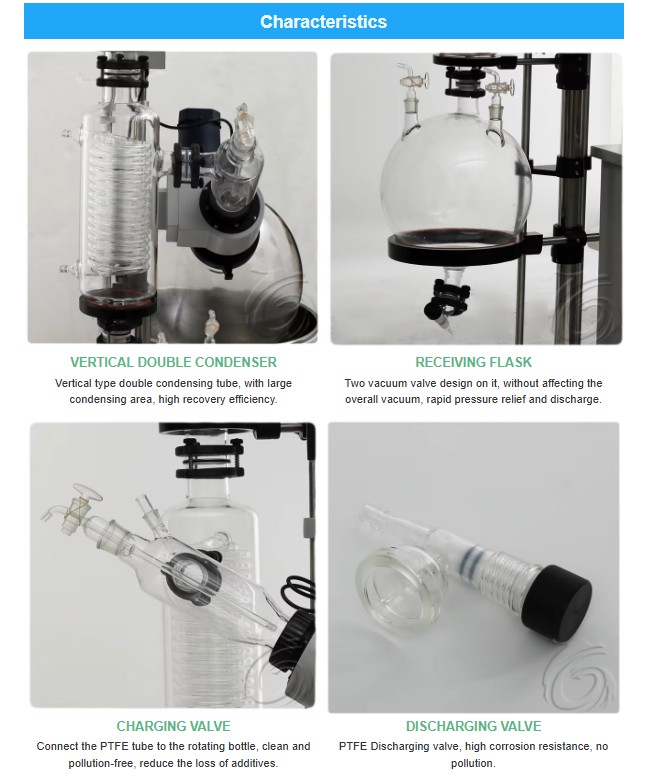

Condenser	Main Condenser+Assistant Condenser
Heating temp. range	Ambient to 99℃ (210℉)
Bath type	Manual lift with drain port	Manual lift with drain port	Manual lift with drain port	Manual lift with drain port
Ultimate vacuum level	<3torrs (PTFE + Viton gaskets seal)
Unit dimensions	11006001730mm	12006501950mm	12207302000mm	12507502100mm

Remark: The model back have”E” mean electric lift bath, no have mean manual lift bath. In front of the model have the “EX” mean this rotary evaporator install explosion protection system.
