Complete 50L Digital Laboratory Rotary Evaporator RE-5002 for Ethanol Extraction Price

Dimension(L*W*H) 1250*750*2100mm
Model Rotary Evaporator 50L
Collection flask 20L
Motor power 250W
Rotating speed 10~90rmp
Heat power 6KW
Bath temp control range RT~200℃

PRODUCT DETAIL

rotary evaporator.jpg

Model	(EX) RE-1002(E)	(EX) RE-2002(E)	(EX) RE-3002(E)	(EX) RE-5002(E)
Electrical requirements	220V/240V, 50/60Hz	220V/240V/380V, 50/60Hz	220V/240V/380V, 50/60Hz	220V/240V/380V, 50/60Hz
Motor	180W (Explosion proof 180W optional)	250W (Explosion proof 370W optional)	250W (Explosion proof 370W optional)	250W (Explosion proof 370W optional)
Glass material	High borosilicate glass 3.3
Evaporating flask	10L (2.6 gallon)	20L (5.3 gallon)	30L (7.9 gallon)	50L (13.2 gallon)
Maximum load	Not to exceed 60% of the flask's capacity
Rotation speed	10-120rpm, It can be self-tuning	10-90rpm, It can be self-tuning	10-90rpm, It can be self-tuning	10-90rpm, It can be self-tuning
Heating power	2KW	3KW	6KW/9KW	6KW/9KW
Evaporating speed	H2O≥3.2L/h, Alcohol≥6.5L/h	H2O≥5L/h, Alcohol≥11L/h	H2O≥7.5L/h, Alcohol≥17L/h	H2O≥9L/h, Alcohol≥19L/h
Receiving flask	5L (1.32 gallon)	10L (2.6 gallon)	20L (5.3 gallon)	20L (5.3 gallon)
Condenser	Main Condenser+Assistant Condenser
Heating temp. range	Ambient to 99℃ (210℉)
Bath type	Manual lift with drain port	Manual lift with drain port	Manual lift with drain port	Manual lift with drain port
Ultimate vacuum level	<3torrs (PTFE + Viton gaskets seal)
Unit dimensions	11006001730mm	12006501950mm	12207302000mm	12507502100mm

Remark: The model back have "E" mean electric lift bath, no have mean manual lift bath. In front of the model have the "EX" mean this rotary evaporator install explosion protection system.

rotary evaporator.jpg

The RE-series rotary evaporator is designed for small-scale and pilot-scale testing, as well as production in biological, chemical, and food industries. With its large capacity and wide-diameter rotary evaporating flask, it efficiently spreads and evaporates solutions when placed in a water bath, enabling rapid solvent extraction and mixed solution separation. This versatile rotary evaporator is ideal for applications such as concentration of solutions, reclamation of solvents, chemical separation, vacuum drying of wet solids, essential oil extraction, and solvent removal from samples. Enhance your lab efficiency with our high-performance rotary evaporator. It can be used in the following experiments or product production:

☑Concentration of solutions; ☑Reclamation of solvents; ☑Separation of chemicals; ☑Vacuum drying of wet solids; ☑Essential oil extractor; ☑Remove solvent from sample.

Match Equipment

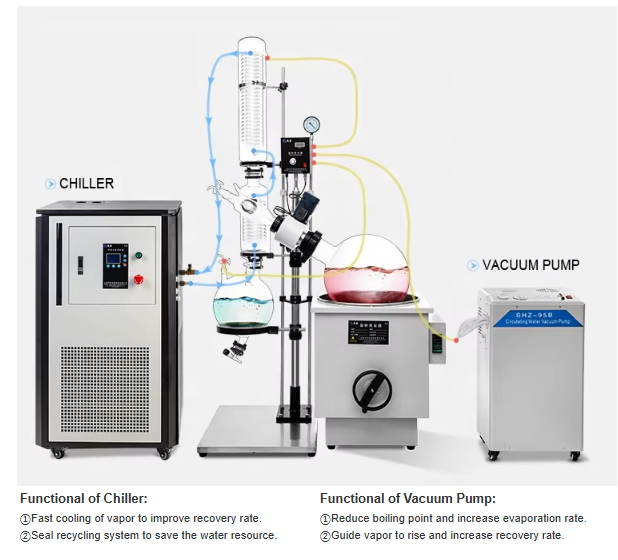

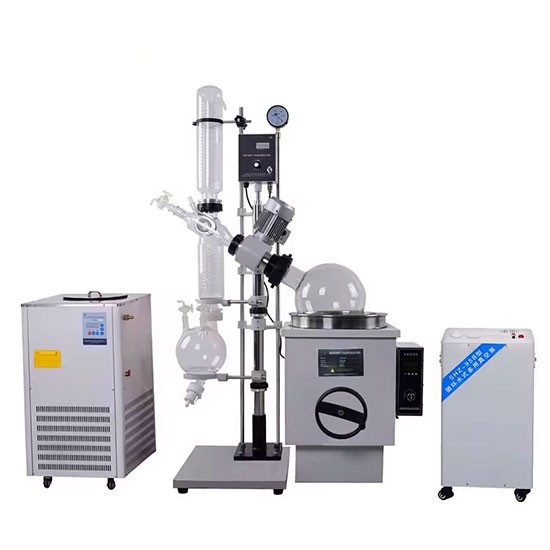

The Rotary Evaporator can be a system with Chiller and Vacuum Pump.

rotary evaporator.jpg
