Chemical Combination Glass Jacketed Filtering Crystallization Reactor - Available in 1L to 200L Sizes, Light Glasses for Efficient Filtration and Crystallization

Reaction Capacity 20L
Jacketed volume 6L
Stirrer Speed 0~600rpm
Working pressure (-0,1Mpa, 0.1Mpa)
Glass Material High Borosilicate Glass 3.3
Machine type Jacketed crystallization reactor
Stirrer Four-blade type, two-layer
Discharging valve Bottom PTFE Filter

PRODUCT DETAIL

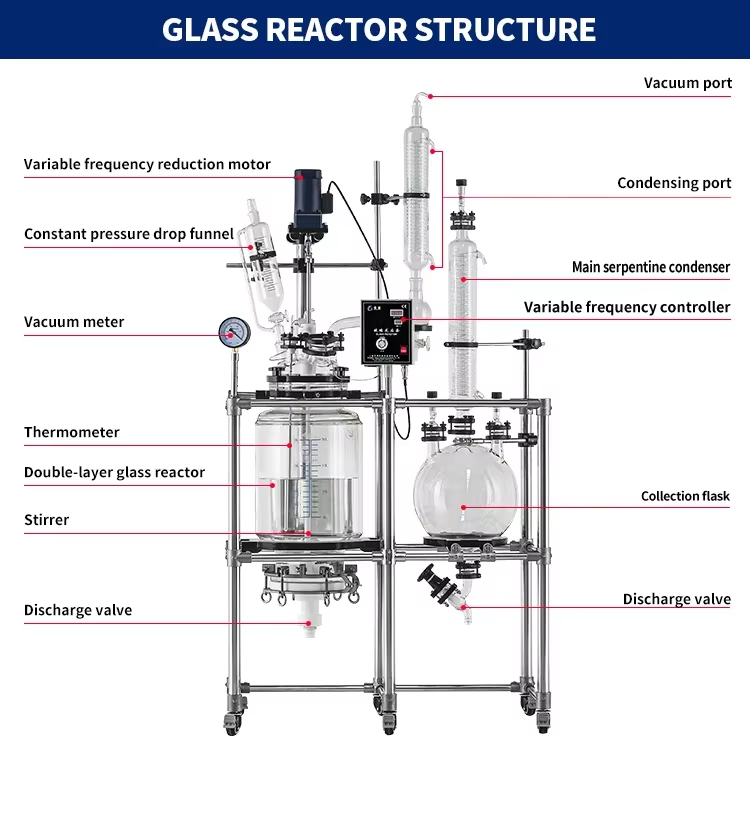

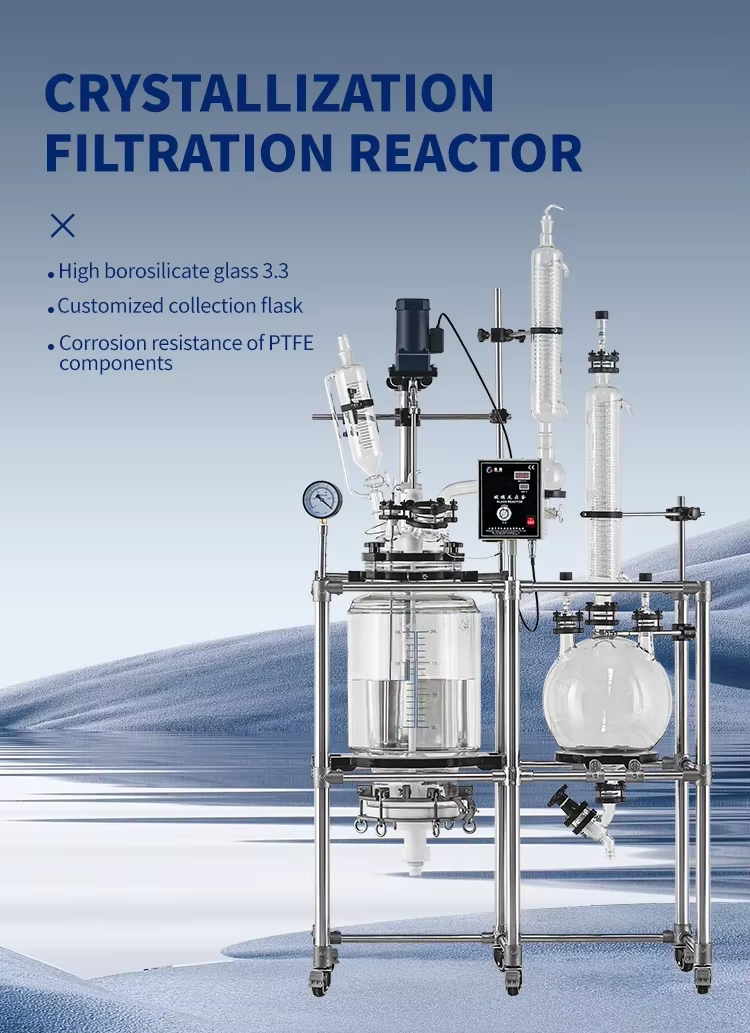

Crystallization Reactor.jpg

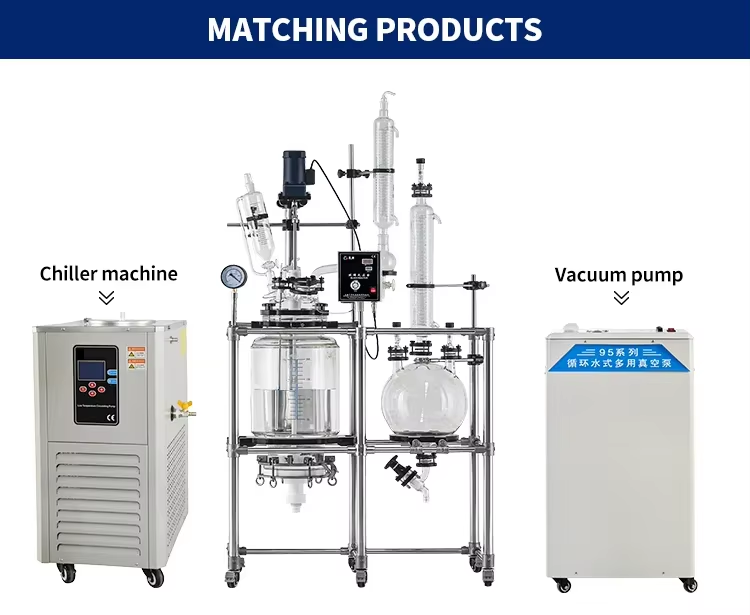

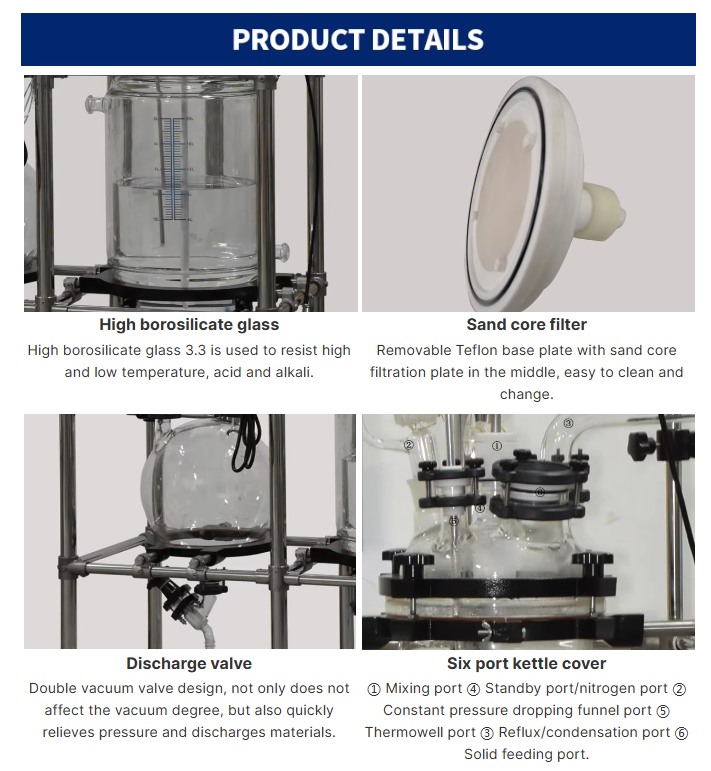

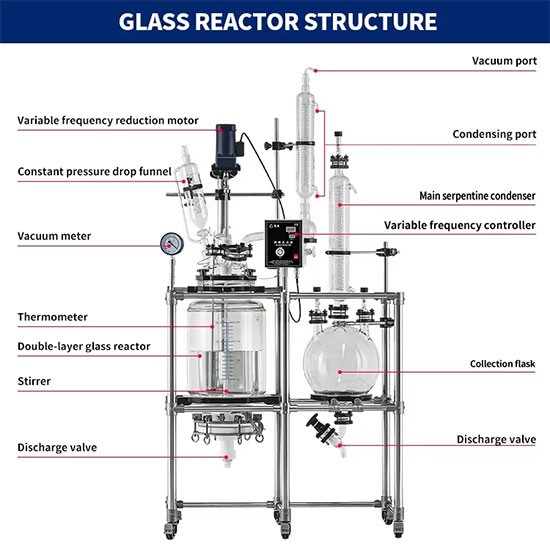

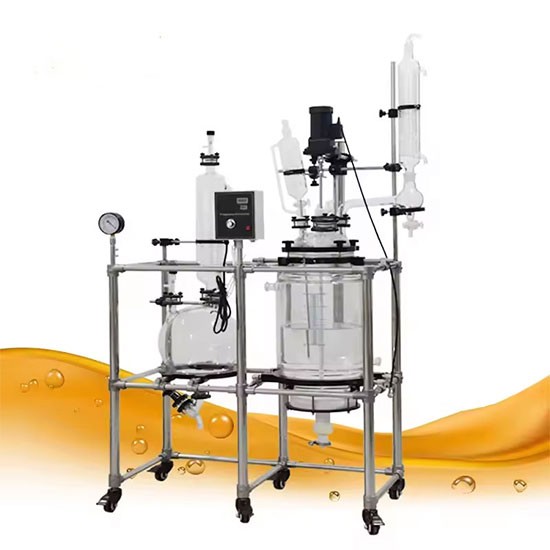

The Jacketed Glass Filtration Reactor is designed for efficient solvent stirring and constant temperature heating by injecting conduction oil into the jacket. Featuring a sand core or PTFE core plate at the bottom for effective material separation, this reactor allows for vacuum conditions during the reaction process. As a solid-phase separation reactor, it is ideal for modern synthetic chemicals, new material preparation, and test and production applications. This versatile equipment ensures precise control over chemical reactions and separation processes, making it essential for laboratory and industrial use.

Crystallization filter reactor	Model	GR-20L-FC
	Inner capacity	20L
	Jacket layer volume	6L
	Six port Lid	Stirrer port； Constant pressure drop funnel port； Reflux head port；	Spare port； Thermometer tube port； Solid adding port；
	Power	120W Low speed booster motor, speed ratio: 1:3
	Controller	Speed adjustment, temperature and speed LCD digital display
	Speed	0~600rpm
	PTFE seal shaft	PTFE+Oil seal+O-ring+Bearing (can do Ceramic mechanical seal)
	Spare valve	34# Glass grinding mouth; For adding liquid, venting air or filling nitrogen
	Thermometer tube	43# Flange; SS316 tube with PTFE coat
	Constant pressure drop funnel	40# Glass grinding mouth, 1000ml
	Reflux head	50# ball mill mouth
	Solid adding	80# Flange with PTFE lid and 80# quick-clamp
	Condenser	φ85MM*H610mm, Serpentine condenser coil
	PTFE Stirrer	Inside 316L stainless steel with PTFE coat , corrosion resistant, no detrication fall off, Four blade (stirring rod: rotating diameter 160MM, blade width 30MM, total length 870mm)
	Kettle body	Upper port and Bottom port: φ265mm Flange
	Sand core	Easy to remove; Diameter: 190mm
	Discharging valve	PTFE
	Filtering precision	No.1:80-120μm； No.3:15-40μm； No.5:2-5μm	No.2:40-80μm No.4:5-15μm No.6:<2μm
	Voltage	220V/50Hz
Collection Device	Vacuum port	12mm, Pagoda joint
	Cooling port	12mm, Pagoda joint
	Vacuum valve	1Pcs, 50#Flange PTFE valve
	Condenser	Serpentine condenser coil
	Inlet valve	1Pcs, 60#Flange PTFE valve
	Vent valve	1Pcs, 60#Flange PTFE valve
	Collection flask	10L
	C Type discharging valve	1Pcs, 80#Flange PTFE valve

Crystallization Reactor.jpg

Speed control motor

The All-Copper Brushless Variable-Frequency Speed Regulating Motor offers superior performance with no brushes, eliminating sparks and reducing noise. This motor is designed for safety, stability, and long lifespan, featuring overload protection and constant speed for reliable operation. It provides stable starting and is optionally available with explosion-proof capabilities. Ideal for various industrial and laboratory applications, this motor combines efficiency with durability.

Various stirrers.jpg

Various stirrers

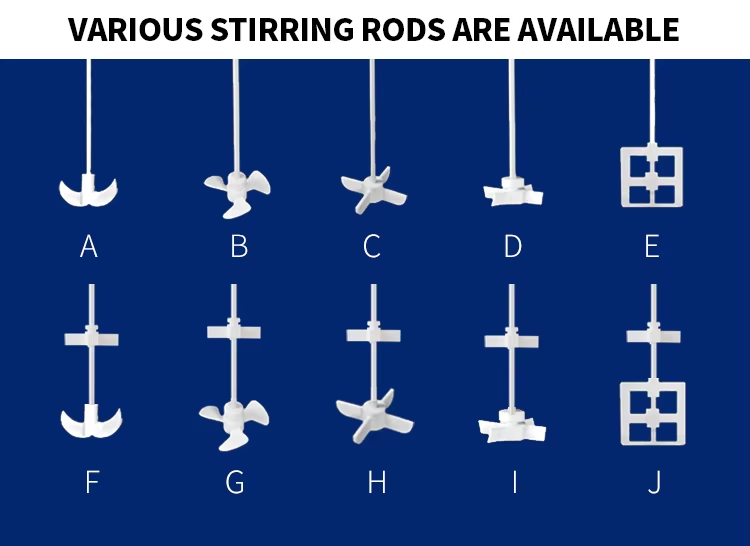

The stirrer is made from 316L stainless steel wrapped with a PTFE coat, offering exceptional corrosion resistance. (316L stainless steel is optional.) The stirring blade is customizable, and we provide a variety of blade shapes to suit your specific needs. This design ensures durability and versatility for various laboratory and industrial applications.
